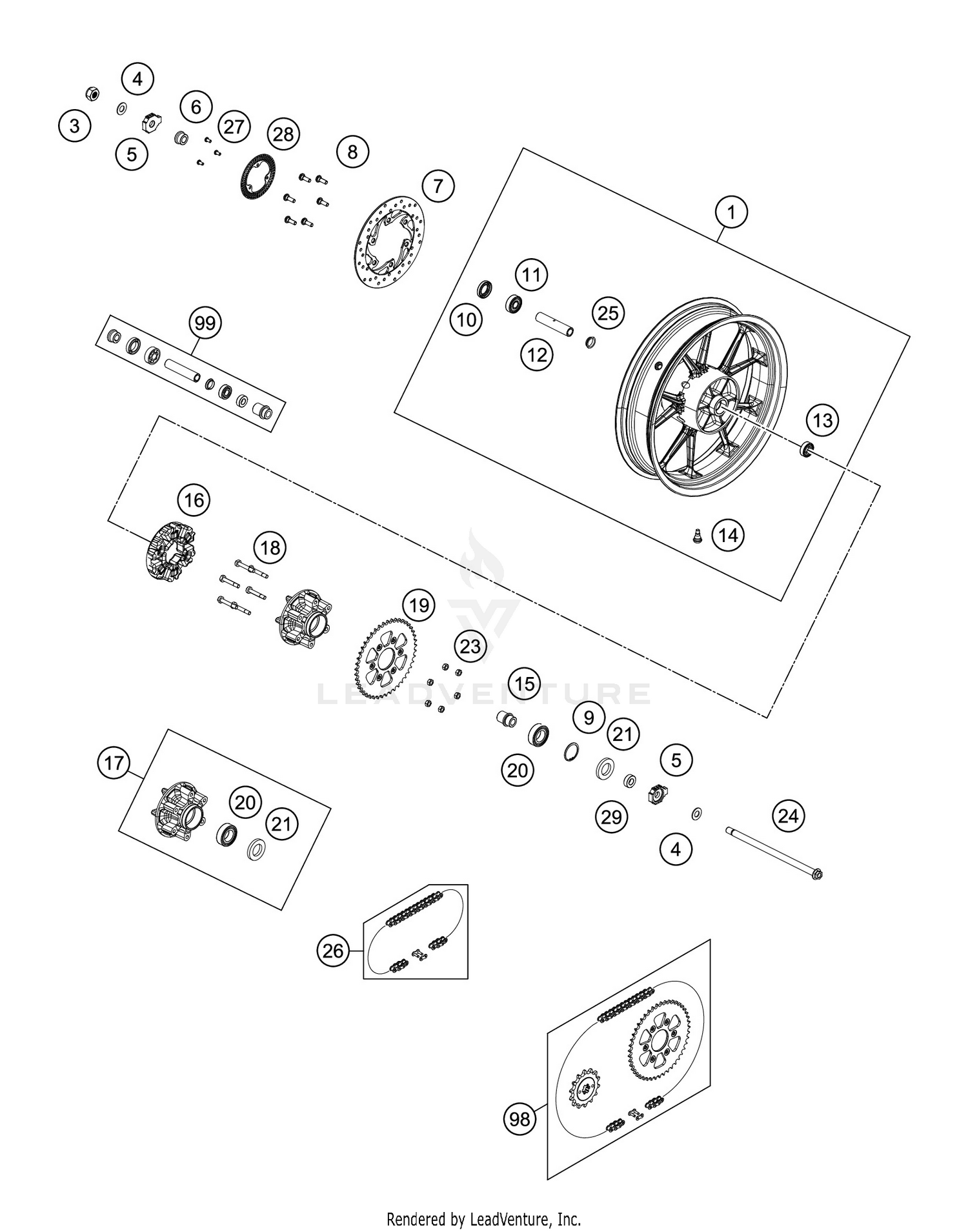

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rear wheel cpl. orange
93010001044EB
|
$490.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
wheel spindle nut, rear
90210086000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
washer 15.2x30x2
90610087000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
chain tension adjuster, right
90110084000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER BUSHING REAR WHEEL R/S
90110013000
|
$7.69 | ||
|
Available to order. Add to View Price |
|||
|
#7
rear brake disk D=230mm
90110060000
|
$90.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPECIAL SCREW M8X25 SELF LOCK.
90110062000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
J472042170
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT SEAL RING 26X42X8
J760264208
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#11
Grooved ball bearing 6302
J625063021
|
$14.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING SPACER TUBE REAR
90110011000
|
$14.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
BALL BEARING 6202
J625062023
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE CPL.
90109076000
|
$8.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER BUSHING KRT INSIDE
90610054000
|
$11.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
rear wheel dampening rubber
90210059100
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPROCKET SUPPORT
90210050000
|
$68.19 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPECIAL SCREW M8X48
90810052000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#19
rear sprocket 45 teeth
90510051045
|
$64.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
BALL BEARING 6205
J625062050
|
$17.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT SEAL RING 29X52X7
J760295207
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLANGED NUT M8X1,25
90510052000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
Axle rear KT03
90210085000
|
$18.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
Fixation bearing spacer tube
90109011001
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
CHAIN DID 118 LINKS
78010167118
Superseded by 78010267118
|
$147.83 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW FOR ABS
90142021001
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
SENSOR DISC REAR
90142021000
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER CHAIN WHEEL SUPPORT
90110053000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#98
Drivetrain set 15Z/45Z
00050002059
Superseded by SPA2151453K118B
|
$223.51 | ||
|
Unavailable |
|||
|
#99
Repair kit rear wheel
90110015100
Superseded by 00050002115
|
$60.38 | ||
|
Available to order. Add to View Price |
|||
