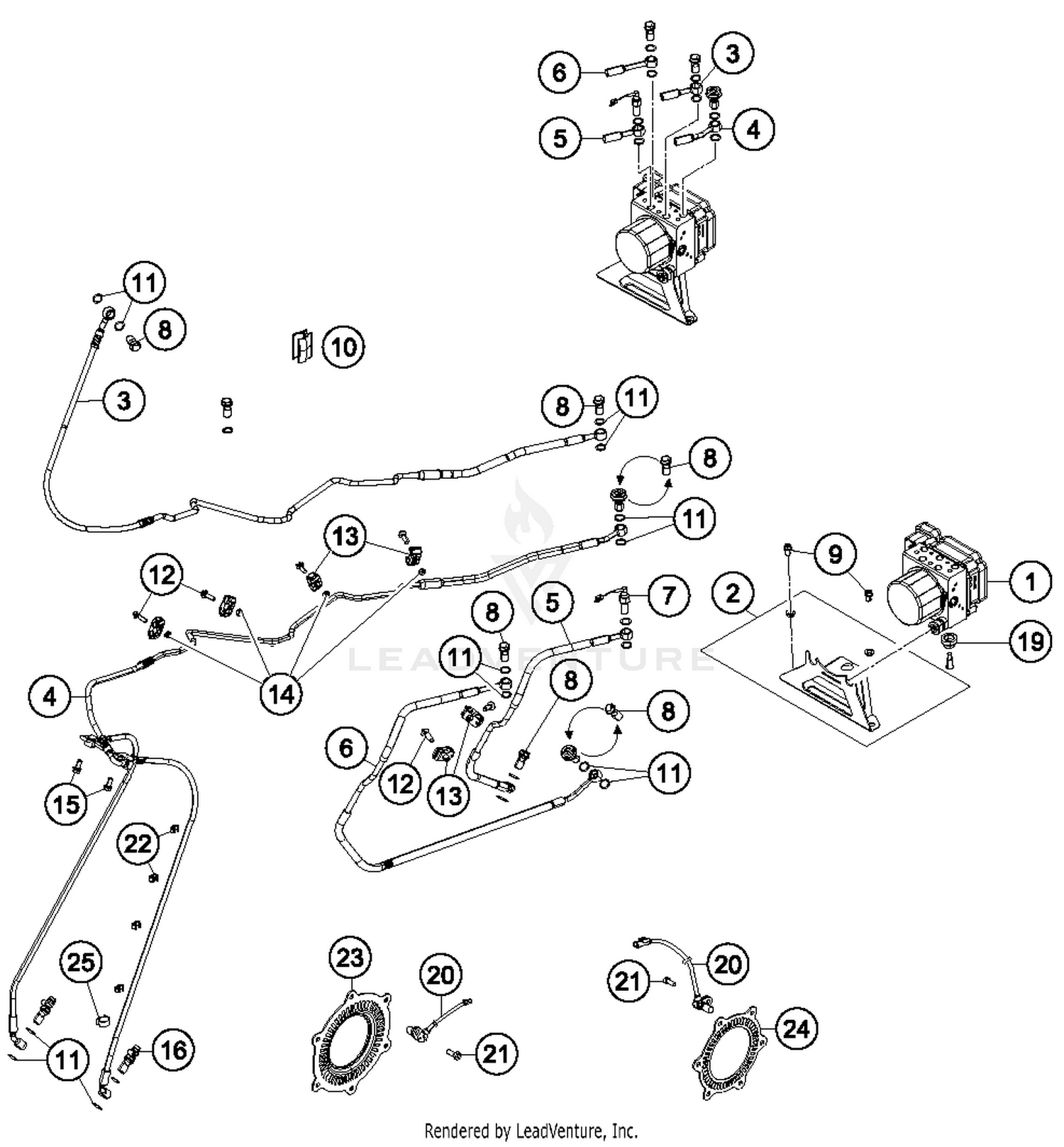

Antiblock System Abs Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ABS module filled
60742031044
Superseded by 60742031144
|
$4,002.34 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUPPORT ABS-MODULE CPL.
60342040044
|
$75.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
Brake hose
60742003000
|
$168.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
Front Brake Line
60342004000
Superseded by 60742004000
|
$340.88 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRAKE HOSE REAR BRAKE CONTROL
60342001000
|
$95.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
Brake line rear caliper
60342002100
|
$80.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRAKE LIGHT SWITCH REAR
60311051000
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
banjo bolt M10x1x19.5
62113020100
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
HH collar screw M6x16 TX30
0025060166
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE SUPPORT 10/4MM 2014
54813026100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
sealing ring DIN 7603 10x14x1
0603100141
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#12
HH COLLAR SCREW M5X16
0024050166
|
|||
|
Unavailable |
|||
|
#13
SUPPORT FOR BRAKE HOSE M5
60113146000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#14
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH collar screw M6x12 TX30
0025060126
|
$3.62 | ||
|
Unavailable |
|||
|
#16
BLEEDER SCREW CPL. 05
62513020000
|
$32.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
DAMP RUBBER
60342041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
ABS-SENSOR
76042125000
|
$223.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHCS ISO 14580 M6x16
014580060166
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAR SPACER 4/7 BLACK
60111094100
|
$6.81 | ||
|
Available to order. Add to View Price |
|||
|
#23
SENSOR GEAR ABS
60342020000
|
$32.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
SENSOR GEAR ABS REAR
60142021100
|
$25.40 | ||
|
Available to order. Add to View Price |
|||
|
#25
CABLE SUPPORT KHS NR.150-47610
58111076000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
