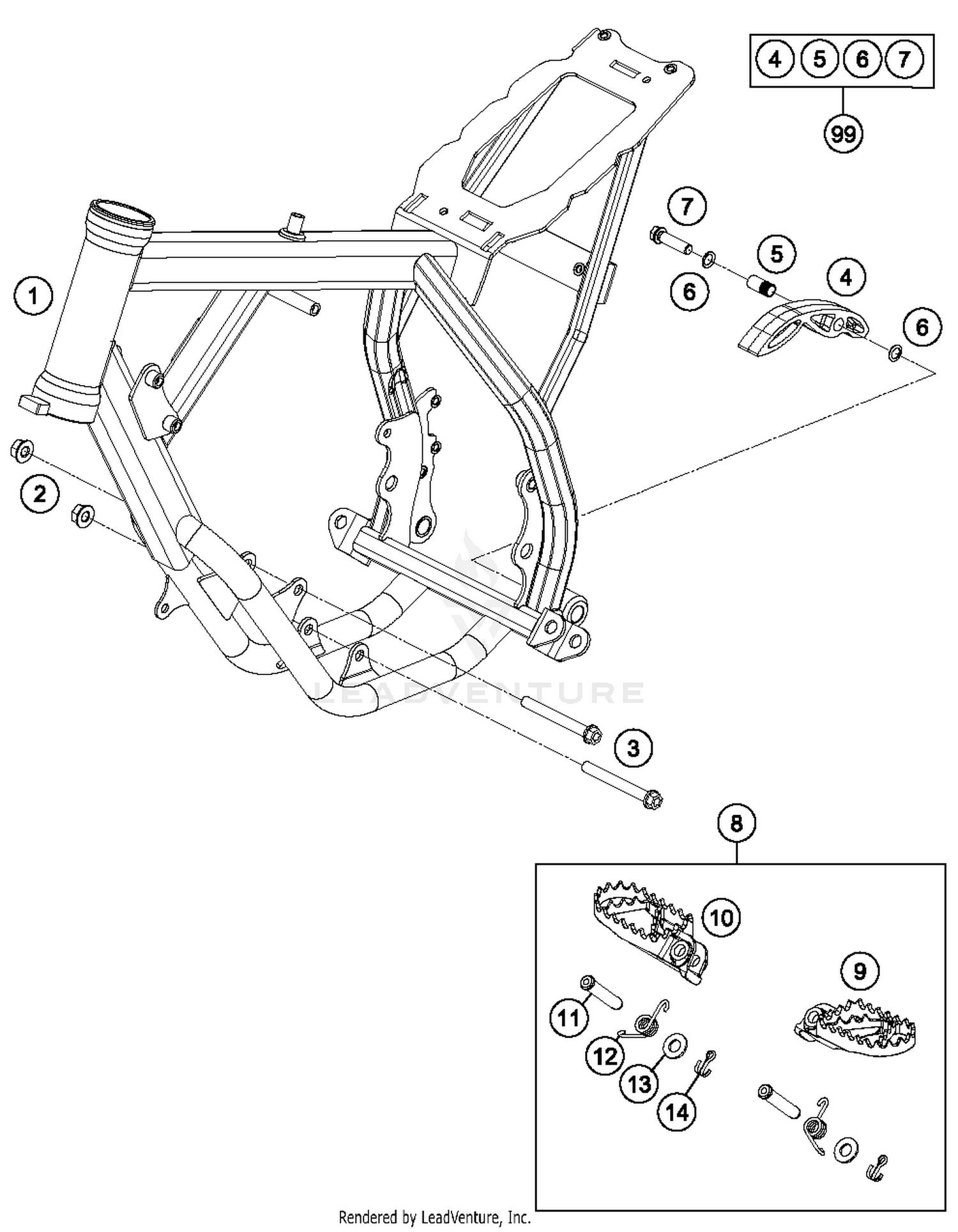

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME ''452L3'' ANTHR. MET.
45203001300BE
|
$1,191.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SELF LOCKING NUT M8 10.9
54310086200
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#3
HH collar screw M8x65 TX40
0025080656
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#4
CHAIN SLIDING PIECE BELOW '97
51103053000
|
$10.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSHING 8,2X10X20
51103053051
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#6
LOCK WASHER 8MM
36003014000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOOTREST CPL. 14
47103040033
|
$129.57 | ||
|
Available to order. Add to View Price |
|||
|
#9
FOOTREST L/S
47103040000
|
$51.58 | ||
|
Available to order. Add to View Price |
|||
|
#10
FOOTREST R/S
47103041000
|
$50.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#13
washer DIN 125 A 10.5
0125100003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#99
CHAIN SLIDING KIT BELOW MINI
51103053110
|
$22.98 | ||
|
Available to order. Add to View Price |
|||
