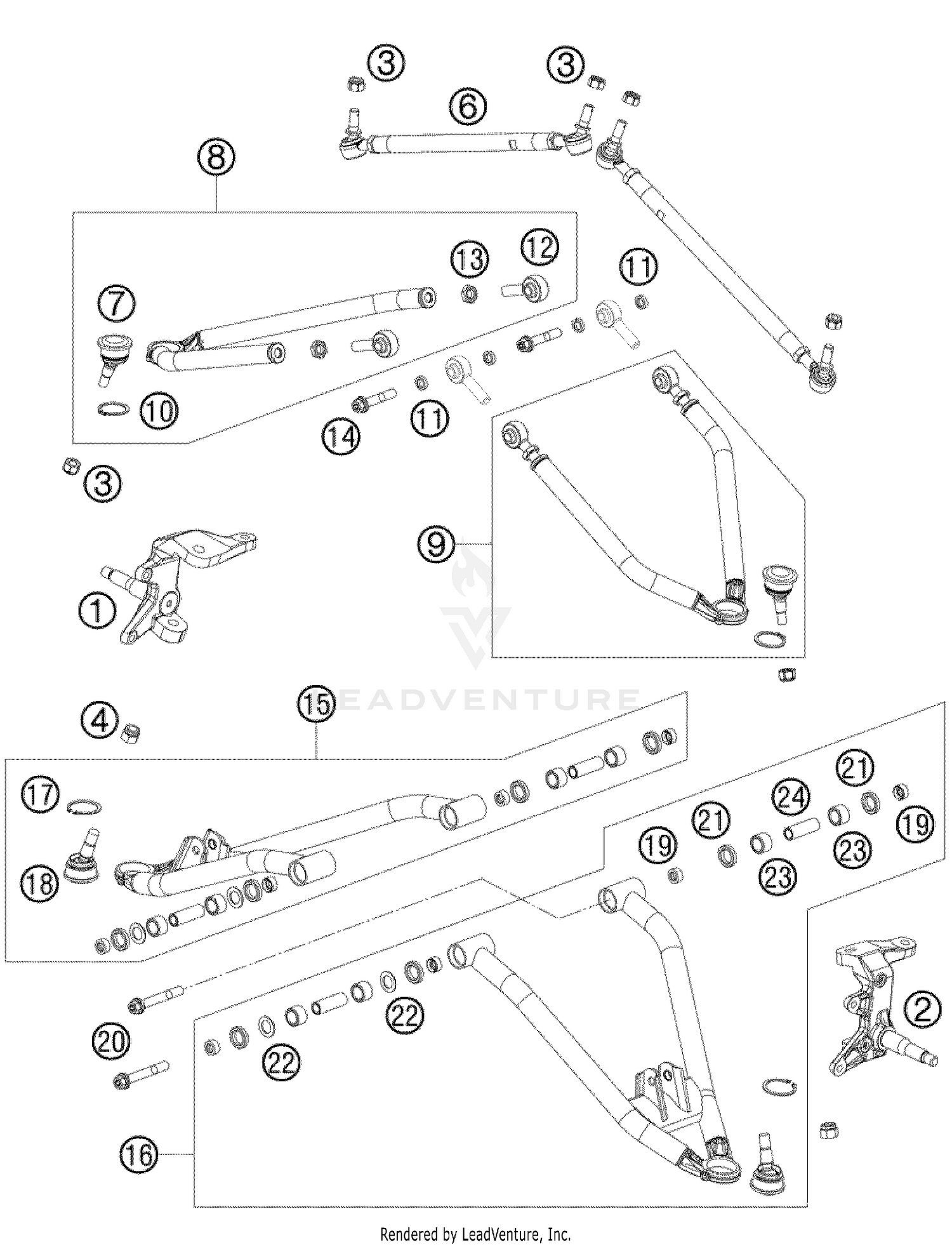

Front Section Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL CARRIER FRONT RIGHT CPL
83061006000
Superseded by 83061106000
|
$246.63 | ||
|
Available to order. Add to View Price |
|||
|
#2
WHEEL CARRIER L/S CPL.
83061005000
|
$146.48 | ||
|
Available to order. Add to View Price |
|||
|
#3
SELF LOCK.NUT M10X1,25
0982101253
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#4
SELF LOCK.NUT M12X1,5
83061005025
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
TRACK RODS CPL. SX
83561010044
|
$205.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
BALL HEAD M10X1,25
83061001050
|
$55.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
A-ARM TOP RIGHT CPL. SX
83061103044
|
$340.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
A-ARM TOP LEFT CPL. SX
83061101044
|
$340.62 | ||
|
Unavailable |
|||
|
#10
CIRCLIP DIN0471-32X1,5
0471320150
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER BUSHING F. BALLJOINT
83061001025
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
SWIVEL HEAD
83061001051
|
$159.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
HEXAGON NUT DIN 936 M12x1,25
0936120123
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR SCREW M10X52 TX
0023100523
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#15
A-ARM BOTTOM RIGHT CPL. SX
83061104044
|
$337.06 | ||
|
Available to order. Add to View Price |
|||
|
#16
A-ARM BOTTOM LEFT CPL. SX
83061102044
|
$336.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP DIN0741-35X1,5
0471350150
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#18
BALL HEAD M12X1,5
83061002050
|
$55.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUCKET F. SHAFT SEAL RING
83061034000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR SCREW M10X70 TX
0023100703
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#21
SHAFT SEAL RING 17X26X6
0760172660
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOP DISK 15,2X25X1 MM
83061015000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#23
NEEDLE BEARING HMK 1515
83061079000
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSHING SLEEVE F. A/ARM
83061032000
|
$10.11 | ||
|
Available to order. Add to View Price |
|||
