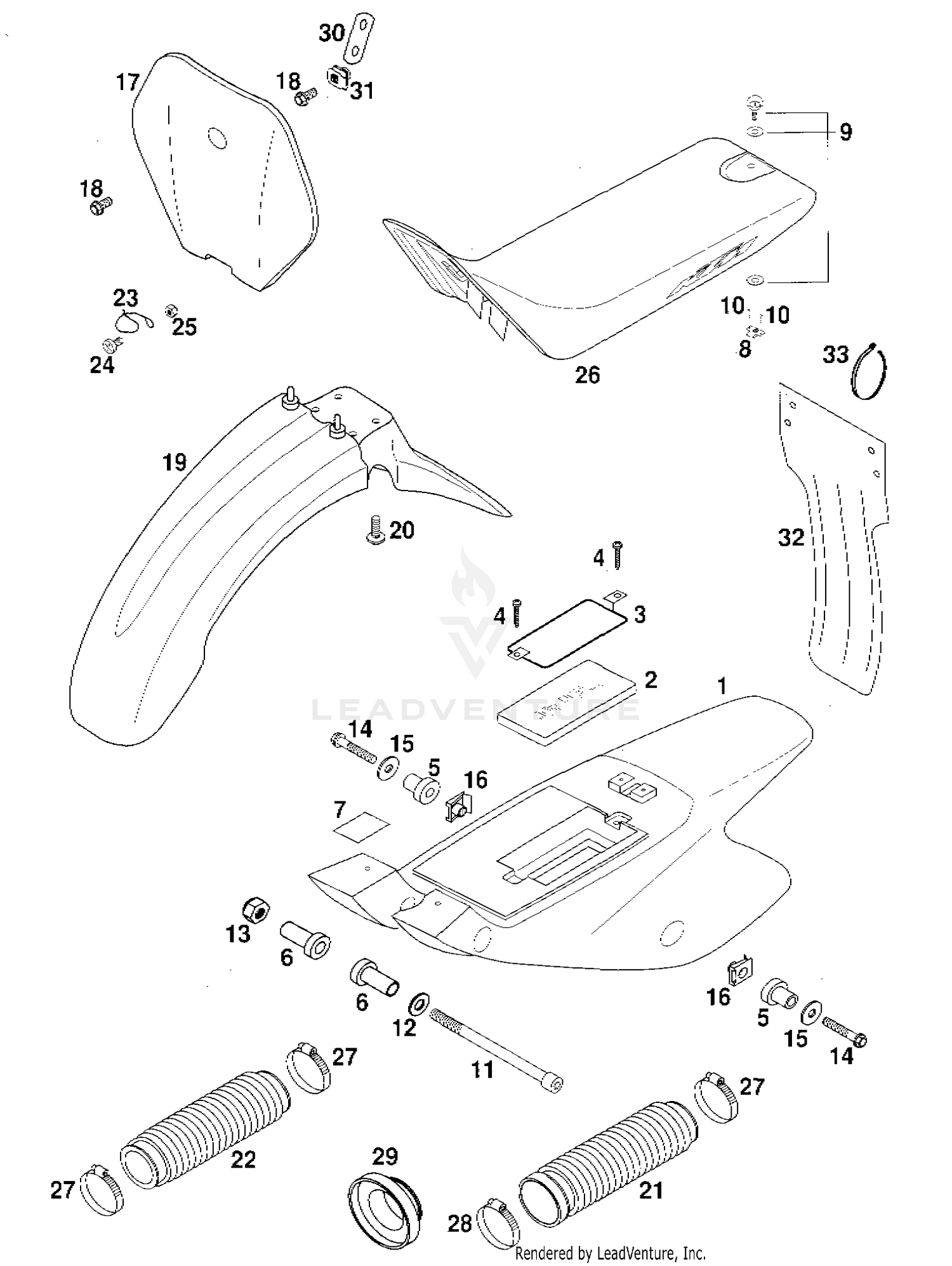

Seat, Fenders Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR FENDER/SUB FRAME
45008013000
|
$108.24 | ||
|
Available to order. Add to View Price |
|||
|
#2
AIRFILTER 120X58X15 MM
45006015000
|
$7.89 | ||
|
Available to order. Add to View Price |
|||
|
#3
FILTER FRAME
45006016000
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPECIAL SCREW Z 5X16
0016050153
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR BUSH
45007013050
|
|||
|
Unavailable |
|||
|
#6
COLLAR BUSH
45007013051
|
|||
|
Unavailable |
|||
|
#7
RUBBER STRIP 85X25X3 MM
54601097000
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
QUICK RELEASE LATCHPLATE
45007040050
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#9
QUICK RELEASE CPL. 50 SXR '97
45007040051
|
$23.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHEET MET.SCR.DIN7981- 3,5X16
0981350163
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
AH SCREW M8X120
0912081203
|
|||
|
Unavailable |
|||
|
#12
washer DIN 125 A -8.4
0125080003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#14
HH collar screw M6x35 TX30
0015060353
Superseded by 0025060356
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER DIN9021-A 6,4
0021060003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
clip nut M6
54603048100
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUMBER PLATE 50 SXR
45008007000
|
|||
|
Unavailable |
|||
|
#18
HH collar screw M6x12 TX30
0015060123
Superseded by 0025060126
|
$3.62 | ||
|
Unavailable |
|||
|
#19
FRONT FENDER 50 SXR
45008010000
|
$16.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
HH COLLAR SCREW M6X10 TX30
0014060103
Superseded by 0024060106
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
AIRFILT.BOOT-DELL ORTO 40/35MM
45006026000
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
AIRFILTER BOOT
45006026100
|
|||
|
Unavailable |
|||
|
#23
GUIDE FOR BRAKE HOSE
58011008000
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#24
OVAL HEAD SCR. DIN7985-M 5X10
0985050103
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
SELF LOCKING NUT DIN0985-M 5
0985050003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#26
SEAT BLACK
45007040000
|
$83.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP 25-40 SGT 4
10001120000
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#28
HOSE CLAMP 30-45 SGT
54305058000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
REDUCTION RING
49106826000
|
|||
|
Unavailable |
|||
|
#30
BRACKET
45008007050
|
|||
|
Unavailable |
|||
|
#31
clip nut M6
50235033300
Superseded by 54603048100
|
$4.83 | ||
|
Unavailable |
|||
|
#32
SPLASH PROTECTOR 50 SXR
45006010000
|
$25.68 | ||
|
Available to order. Add to View Price |
|||
|
#33
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
