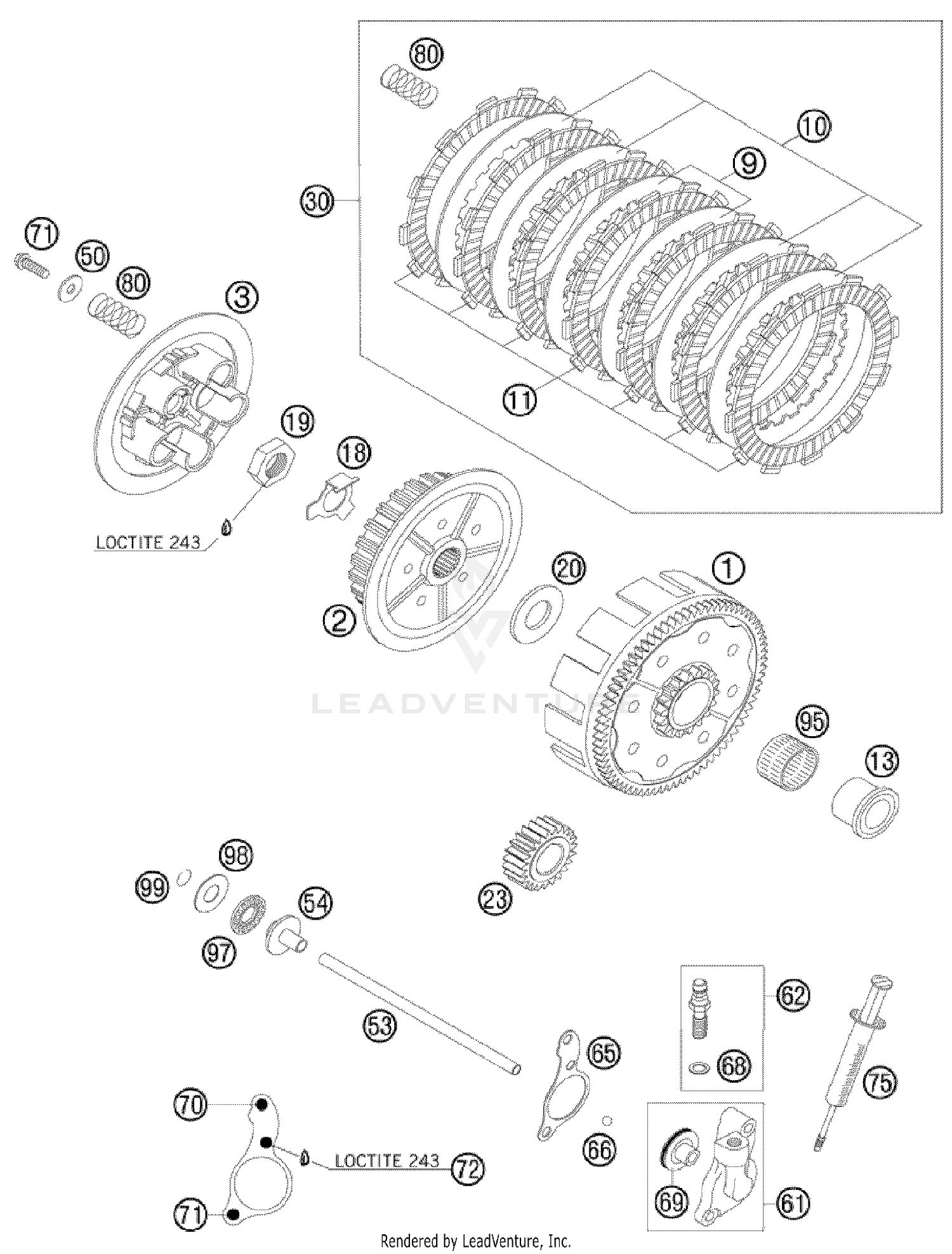

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OUTER CLUTCH HUB '98
50332000073
Superseded by 50332001044
|
$531.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
INNER CLUTCH HUB 125/200'98
50332002100
Superseded by 50332002000
|
$135.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
PRESSURE PLATE 125/200'98
50332003100
Superseded by 50332003000
|
$102.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
INTERMEDI. DISC STEEL 1,5MM'98
50332010100
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
INTERMEDIATE DISC 1,5MM
50332010000
Superseded by 50332010400
|
$24.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
LINING DISC 3,0MM 05
77032011000
|
$42.67 | ||
|
Available to order. Add to View Price |
|||
|
#13
INNER RING 20X26X25,9 '98
50332013000
|
$35.52 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHEET METAL LOCK 1,5MM '98
50332018000
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
HEXAGON NUT DIN0936-M18X1,5 R.
0936181505
|
$9.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOP DISK 20X39,6X3 '98
50332020000
|
$19.24 | ||
|
Available to order. Add to View Price |
|||
|
#23
PRIM. PINION 23-T 125/200'98
50332023023
|
$112.74 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLUTCH KIT 125/200 06-14
50332011210
|
$297.43 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER 6,2X18X2
50232050000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#53
PUSH ROD L=178 125/200 2006
50332017300
|
$14.07 | ||
|
Available to order. Add to View Price |
|||
|
#54
PRESSURE PIECE CPL.
50332054051
Superseded by 50332154051
|
$31.12 | ||
|
Available to order. Add to View Price |
|||
|
#61
CYLINDER CPL. 125/200'98
50332061044
|
$196.01 | ||
|
Available to order. Add to View Price |
|||
|
#62
HOLLOW SCREW CPL. M 10X1 '98
50332062000
|
$41.13 | ||
|
Available to order. Add to View Price |
|||
|
#65
CLUTCH RELEASE GASKET 0,3MM
50332065051
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#65
CLUTCH RELEASE GASKET 0,5MM
50332065052
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#65
CLUTCH RELEASE GASKET 0,75MM
50332065053
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#66
BALL DIN5401-7
0401070003
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#68
CU-SEAL RING DIN7603-10X16X1
42013226000
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#69
PISTON W. O-RING 125/200 2000
50332066000
|
$105.81 | ||
|
Available to order. Add to View Price |
|||
|
#70
HH collar screw M6x40 TX30
0025060406
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#71
HH collar screw M6x20 TX30
0025060206
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#72
HH collar screw M6x25 TX30
0025060256
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#75
VENT INJEKTION HYDR. CLUTCH
50329050000
|
$63.24 | ||
|
Available to order. Add to View Price |
|||
|
#80
CLUTCH SPRING
52332005000
Superseded by 52332005200
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#95
NEEDLE BEARING K26X30X22ZW.KSE
56532095000
|
$28.04 | ||
|
Available to order. Add to View Price |
|||
|
#97
AXIAL NEEDLE BEARING AXK 1226
54637097200
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#98
AXIAL WASHER AS1226 12X26X1
54637098200
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#98
AXIAL WASHER AS1226 12X26X1
54637098300
Superseded by 54637098200
|
$6.15 | ||
|
Unavailable |
|||
|
#99
CIRCLIP DIN7993-RW12
0993012000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
