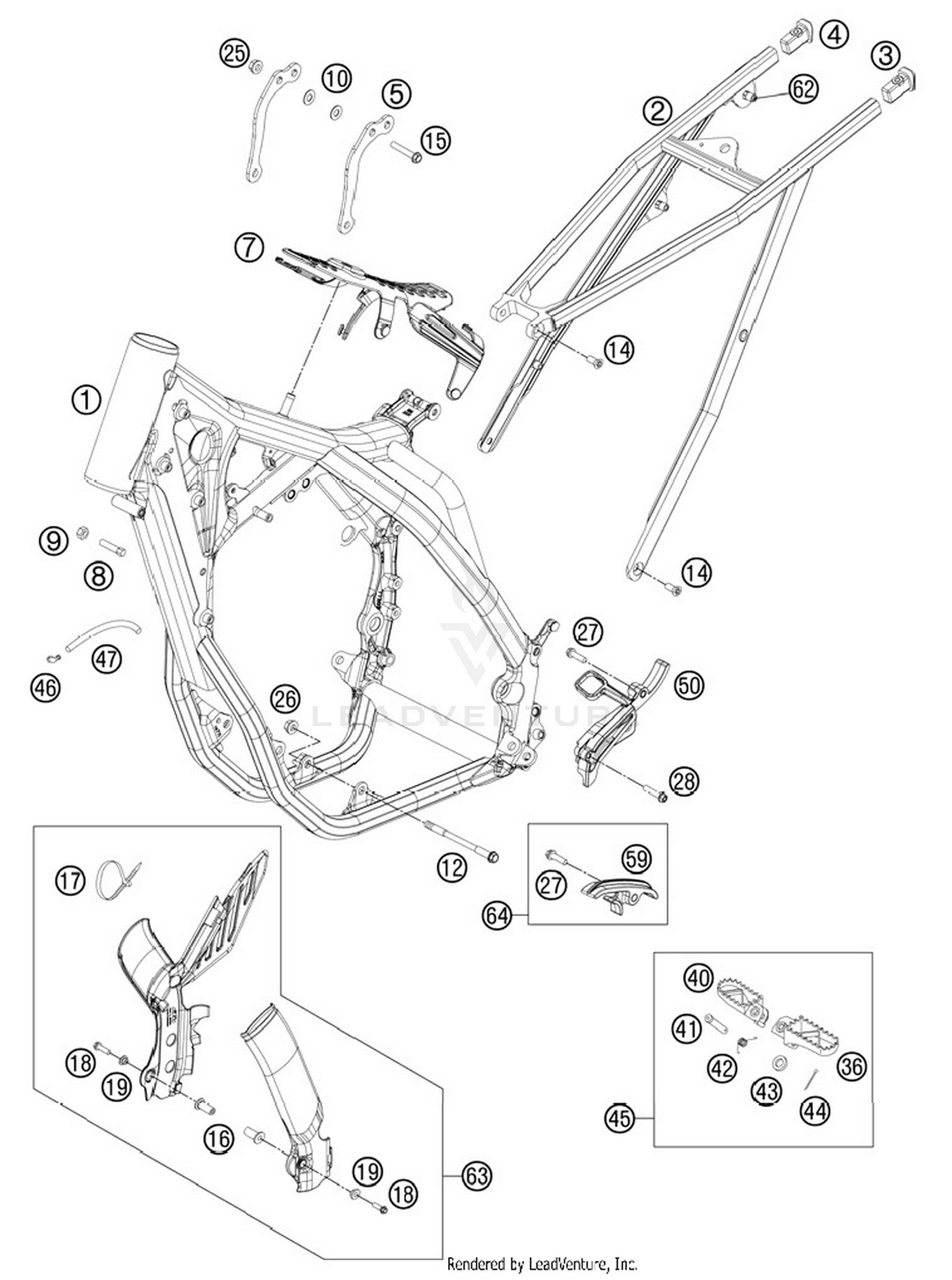

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME BLACK M. ''774L2''
7740300100033
|
$1,471.14 | ||
|
Available to order. Add to View Price |
|||
|
#2
SUB FRAME SX
77203002000
|
$460.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
REINFORC.BRACKET 250 EXC-F 12
77403013000
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
TANK REST RUBBER
77207012000
|
$11.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPECIAL SCREW M8X26 WS=10
59001037000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
HEXAGON NUT DIN0934-M 8
0934080003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER 8,5X18X1 INOX
77003013050
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
engine brac.scr. M10x105 WS13
54603013000
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
HH COLLAR SCREW M8X44 WS13
56530079000
Superseded by 56530079000S
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#16
BLIND PLUG-IN NUT M5 WN 22A 03
54803092050
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
COU.SUNK SCR. AH ISO7380 M5X25
0738050250
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH F. FRAME PROTECTION 03
54803092060
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#25
SELF LOCKING NUT M8 10.9
54310086200
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
SELF LOCKING NUT M10 CU WS=14
54310086100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#27
HH collar screw M8x30
0025080306
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
HH collar screw M6x40 TX30
0025060406
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
FOOTREST L/S 08
78003040050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#40
FOOTREST R/S 08
78003041050
|
$51.36 | ||
|
Available to order. Add to View Price |
|||
|
#41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
|
$14.62 | ||
|
Available to order. Add to View Price |
|||
|
#42
FOOTREST SPRING L/S & R/S
54603041000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#43
washer DIN 125 A 10.5
0125100003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIN DIN 0094-3.2X25 NIRO
0094032253
Superseded by 0094032250
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#45
FOOTREST L/S + R/S CPL. 09
78003040033
|
$136.50 | ||
|
Available to order. Add to View Price |
|||
|
#46
ANGLE PIECE '97
50303089000
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#47
PVC-HOSE 7X10 PER METER
55007016001
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#50
SPROCKET COVER 250 SX-F 07
77003096000
|
$16.93 | ||
|
Available to order. Add to View Price |
|||
|
#59
CHAIN SLIDER LOWER PART CPL.
77203053000
|
$10.66 | ||
|
Available to order. Add to View Price |
|||
|
#62
BLIND RIVET NUT EM6-60LF/HX
77303139000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#63
PLASTIC FRAME PROTECTION SET
77203094000
|
$61.15 | ||
|
Available to order. Add to View Price |
|||
|
#64
CHAIN SLIDING KIT BELOW CPL.11
77203053010
|
$22.10 | ||
|
Available to order. Add to View Price |
|||
