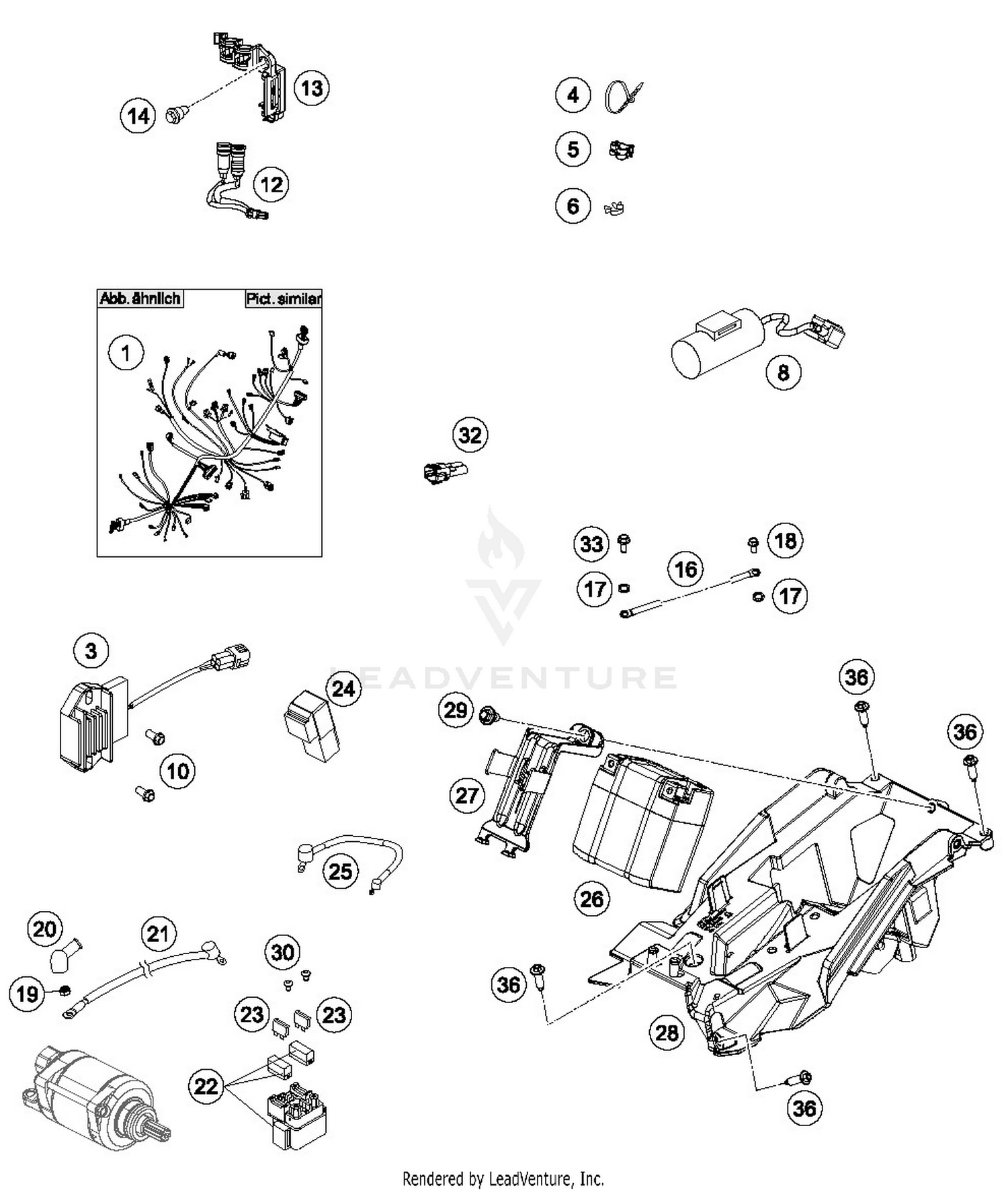

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRING HARNESS XC-F
79211075100
|
$415.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
VOLTAGE REGULATOR 09
77211034000
|
$221.64 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE TIE 140/2,5MM BLACK
44011076140
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE TIE 200/3,6MM BLACK
44011076200
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE TIE 300/4,8MM BLACK
44011076305
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE GUIDE
83013026000
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE SUPPORT KHS NR.150-47610
58111076000
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONDENSER 2016
79011035000
|
$90.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
HH collar screw M6x20 TX30
0025060206
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
INDICATOR LIGHT EFI+RES CPL.14
77714081000
|
$52.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
SUPPORT INDICATOR LIGHT XC
77214098100
|
$4.83 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPECIAL SCREW M6X12,5 WS=8
59001092050
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#16
GROUND CABLE D=6MM L=140MM '97
58411097100
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
CONTACT WASHER M6 VSV-K6
58411098100
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
EJOT SPIRAL SCREW SF M5X10-K
0009050106
|
$2.41 | ||
|
Unavailable |
|||
|
#19
SELF LOCK. NUT DIN0985-M 6
0985060003
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
PROTECTION CAP F. STARTER ENG.
77240099000
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
STARTERCABLE 700 MM '97
58411059100
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
STARTER RELAY 12V '99
58211058000
|
$85.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE 10 A 2000
58011109110
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#24
RELAY CM1A-R-12V-H80 07
61111057000
|
$19.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
WIRING HARNESS BATTERY DUKE'99
58711086000
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#26
battery 12V/24Wh
77311953000
Superseded by 79111053000
|
$195.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
BATTERY BOX SUPPORT
79011056100
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
BATTERY BOX
79011055100
|
$44.54 | ||
|
Available to order. Add to View Price |
|||
|
#29
special screw M6x12x3
83008000012
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#30
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
Endconnector Can-Bus 2017
69011040000
Superseded by 000700000AL001
|
$23.53 | ||
|
Available to order. Add to View Price |
|||
|
#33
HH collar screw M5x12 TX30
0025050126
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW FOR PLASTIC K60X20 SW6
0017060205
|
$2.41 | ||
|
Unavailable |
|||
