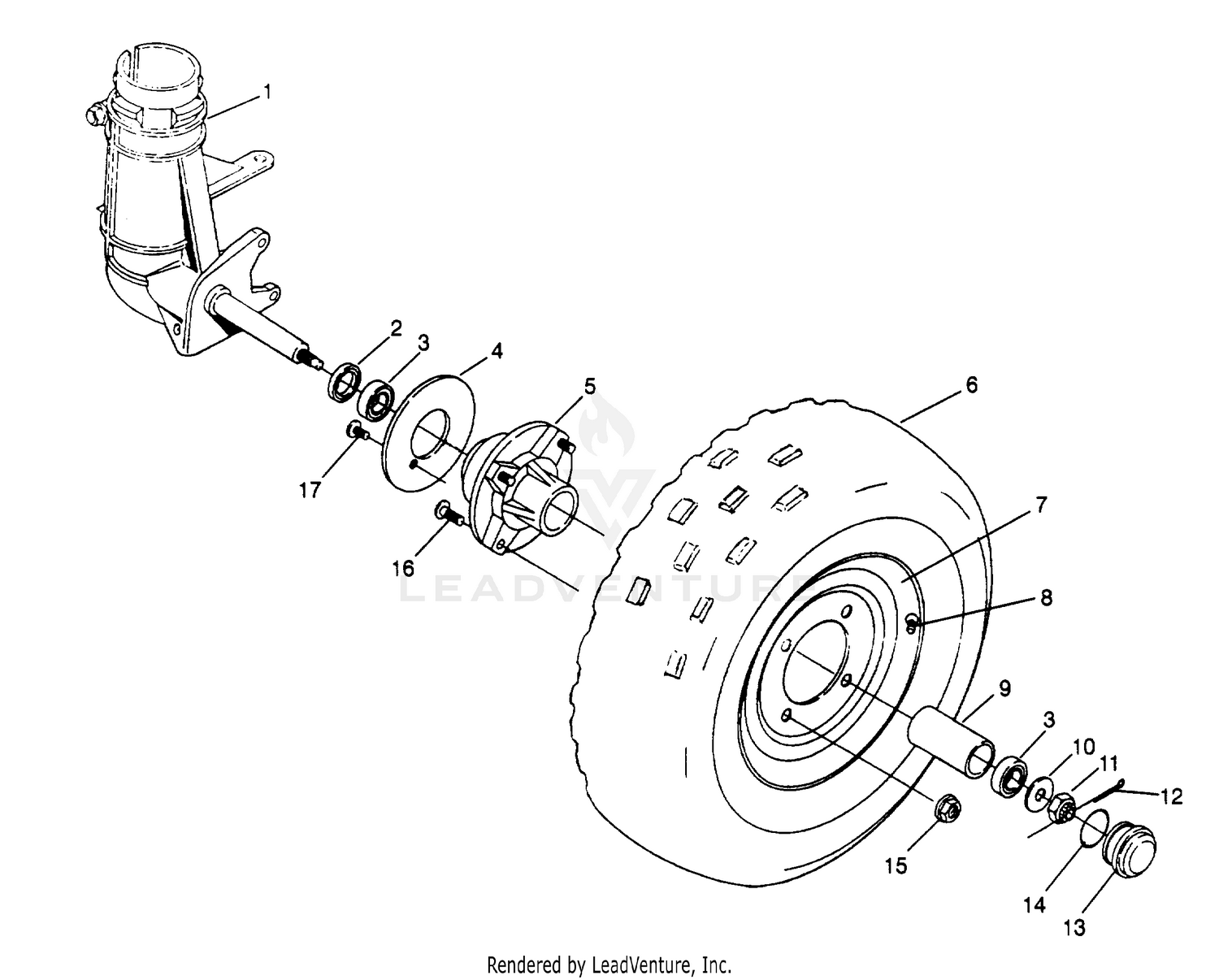

Front Wheel Assembly 2x4 300 W957530 (4930053005b003) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Support, Strut & Spindle, LH
-------
|
|||
|
Unavailable |
|||
|
#2
SEAL,FRONT HUB
3610020
|
$21.99 | ||
|
Unavailable |
|||
|
#3
BEARING, BALL
3514001
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
DISC, BRAKE
5211325
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HUB-WHEEL & CAP ASM
5130940
Superseded by 1520453
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
TIRE,F(23X7-10)
5410906
|
|||
|
Unavailable |
|||
|
#7
Rim, Front, Silver
1520175-117
Superseded by 1520175-486
|
$114.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE-RIM
1525017
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, HUB,FRONT
5010256
|
$11.29 | ||
|
Unavailable |
|||
|
#10
WASHER(10)
7555721
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT(10)
7542712
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COTTER PIN(10)
7661407
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, HUB
5431018
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING
5410470
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-HXFL-3/8-24 B ZTB P-A
7542459
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
STUD(10)
7515523
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT(10)
7515321
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
