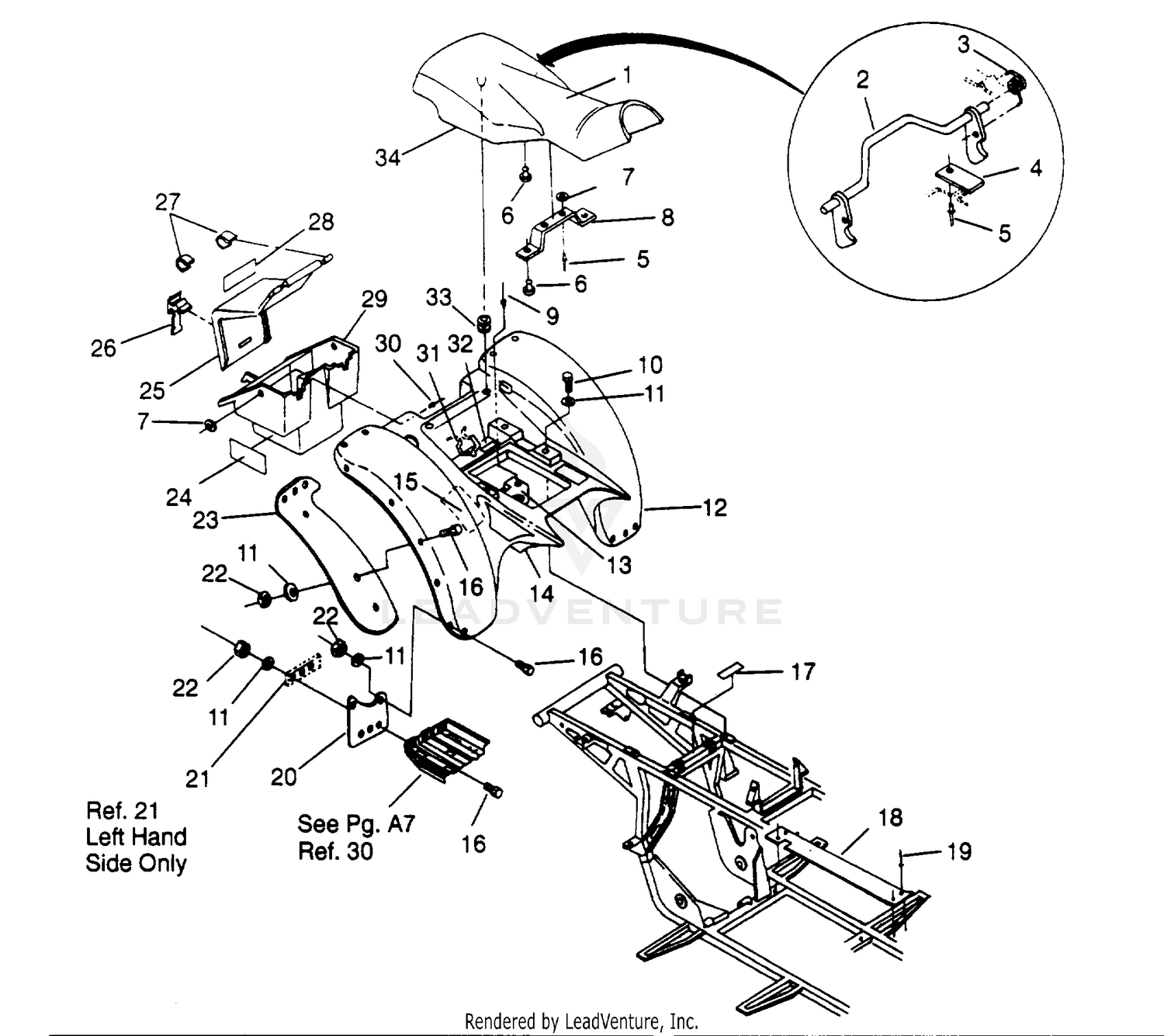

Rear Cab Assembly 2x4 300 W957530 (4930053005a006) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-SEAT,GEN II,BLK
2681724-143
Superseded by 2682492-070
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LATCH,SEAT
1011558
|
|||
|
Unavailable |
|||
|
#3
SPRING, LATCH
7041158
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET,LEVER RETAINER
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BLIND RIVET(50)
7621403
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUMPER, RUBBER
5410414
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,13/64X1/2X18GA,FL-Y
7558212
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRKT,SUPPORT SEAT BASE
5222837-067
|
|||
|
Unavailable |
|||
|
#9
RIVET,3/16X.402(50)
7621432
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, FLAT(10)
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAB,REAR,BLUE(350ATV-MOD)
5431271-157
|
|||
|
Unavailable |
|||
|
#13
BRKT,R.HOLDDOWN
5220880
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
FOIL, REAR CAB
5810957
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FOIL, REAR CAB, SMALL
5810991
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BLACK(10)
7512282
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DECAL,FILTER ELEMENT [No Longer Available]
7072791
|
|||
|
Unavailable |
|||
|
#18
GUARD,CLUTCH,OUTER
5222860-067
|
|||
|
Unavailable |
|||
|
#19
RIVET-3/16-.090-.290
7661637
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
MUDFLAP,LH,LOW,REAR
5850076
|
|||
|
Unavailable |
|||
|
#20
MUDFLAP,RH,LOW.REAR
5850111
|
|||
|
Unavailable |
|||
|
#21
BRKT, LH MUD FLAP
5211131-067
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLAP,MUD,RH REAR
5850061
|
|||
|
Unavailable |
|||
|
#23
FLAP,MUD,LH REAR
5850060
|
|||
|
Unavailable |
|||
|
#24
TAPE, FOIL
5810310
|
|||
|
Unavailable |
|||
|
#25
LID,TOOLBOX(SIL/B.BLUE)
5430769-1035
|
|||
|
Unavailable |
|||
|
#26
STRAP,TOOL COMPARTMENT
5410425
|
$9.29 | ||
|
Unavailable |
|||
|
#27
CLIP, LID HINGE(10)
7670050
|
|||
|
Unavailable |
|||
|
#28
DECAL(CPSC),PASS.WRN. [No Longer Available]
7072805
|
|||
|
Unavailable |
|||
|
#29
BOX,TOOL COMP.
5430882
|
|||
|
Unavailable |
|||
|
#30
RIVET(50)
7621462
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
RETAINER,TOOL POUCH
7080385
|
|||
|
Unavailable |
|||
|
#32
DECAL,CARB.INFO.
7073761
|
|||
|
Unavailable |
|||
|
#33
GROMMET
5411042
Superseded by 5412507
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER,SEAT,LT.GREY
2681723-143
|
|||
|
Unavailable |
|||
