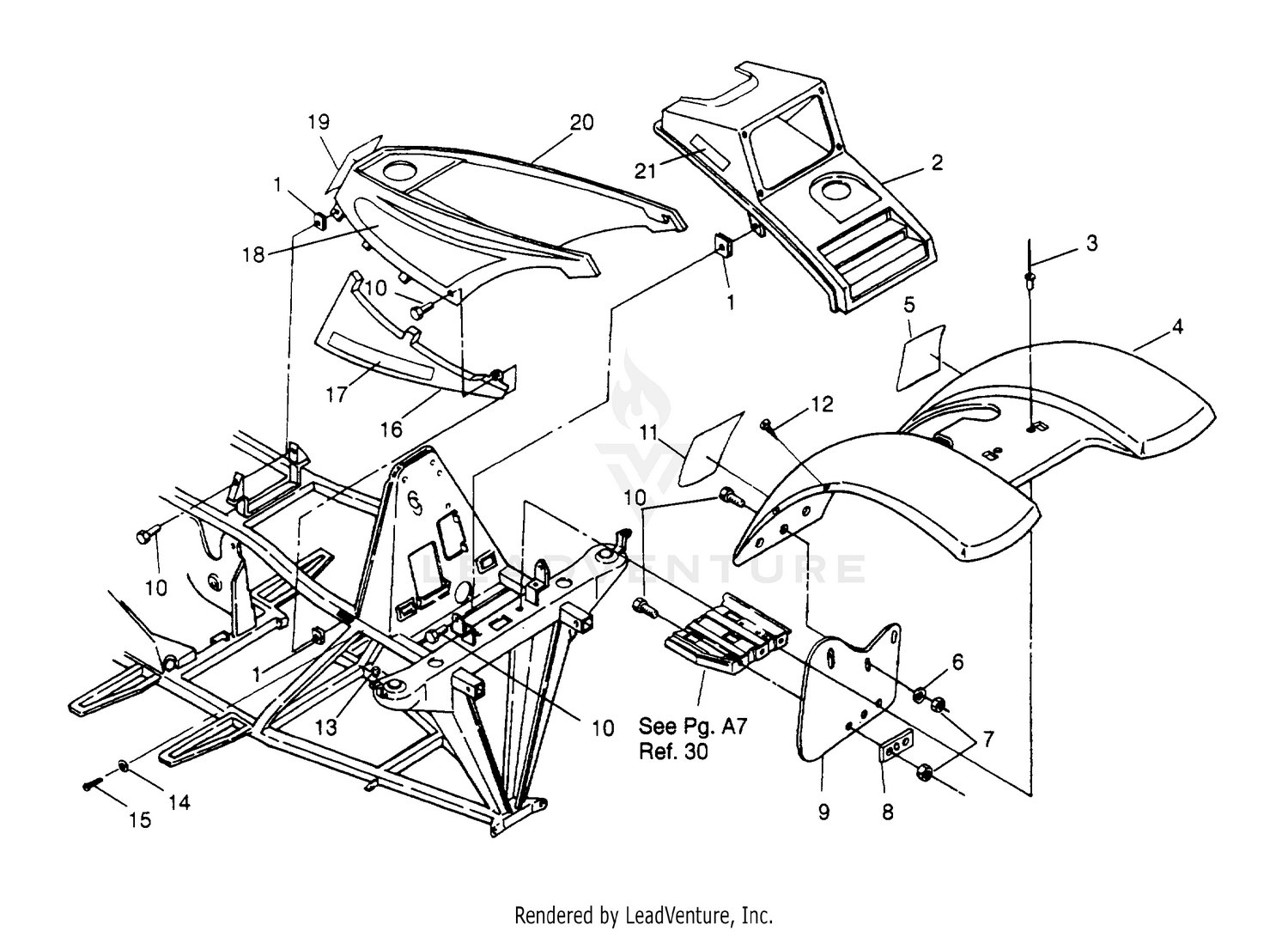

Front Cab Assembly 2x4 300 W947530 (4926742674a005) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT, SPEED(10)
7670060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER,OIL-H/L,BON.BLUE
5430973-157
|
|||
|
Unavailable |
|||
|
#3
RIVET(50)
7621457
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAB ASM,FR,4WH,GRY.
2631610-143
|
|||
|
Unavailable |
|||
|
#5
DECAL,WARNING(CPSC) [No Longer Available]
7072693
|
|||
|
Unavailable |
|||
|
#6
WASHER, FLAT(10)
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRKT, LH MUD FLAP
5211131-067
|
$20.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
MUDFLAP,FRT,LH,BLK.
5850082-070
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
MUDFLAP,FRT,RH,BLK.
5850092-070
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, BLACK(10)
7512282
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DECAL,WARN(CPSC),DISCRET.
7074608
|
|||
|
Unavailable |
|||
|
#12
CLIP, PUSH-ON(10)
7670052
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,WROUGHT(10)
7558302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COVER,LH,BON.BLUE,SIDEPAN Substituted by 5433382-157
5430970-157
|
|||
|
Unavailable |
|||
|
#16
COVER,RH,BON.BLUE,SIDEPAN Substituted by 5433579-157
5430971-157
|
|||
|
Unavailable |
|||
|
#17
DECAL,LH,SIDEPANEL
7074218
|
|||
|
Unavailable |
|||
|
#17
DECAL,RH,SIDEPANEL [No Longer Available]
7074219
|
|||
|
Unavailable |
|||
|
#18
DECAL,LH,TANKSIDE
7074216
|
|||
|
Unavailable |
|||
|
#18
DECAL,RH,TANKSIDE
7074217
|
|||
|
Unavailable |
|||
|
#19
DECAL(CPSC),AGE WARN. Substituted by 7074827
7072933
|
|||
|
Unavailable |
|||
|
#20
COVER,FUELTANK,BON.BLUE
5431197-157
|
|||
|
Unavailable |
|||
|
#21
DECAL,'POLARIS'H/L POD
7074215
|
|||
|
Unavailable |
|||
