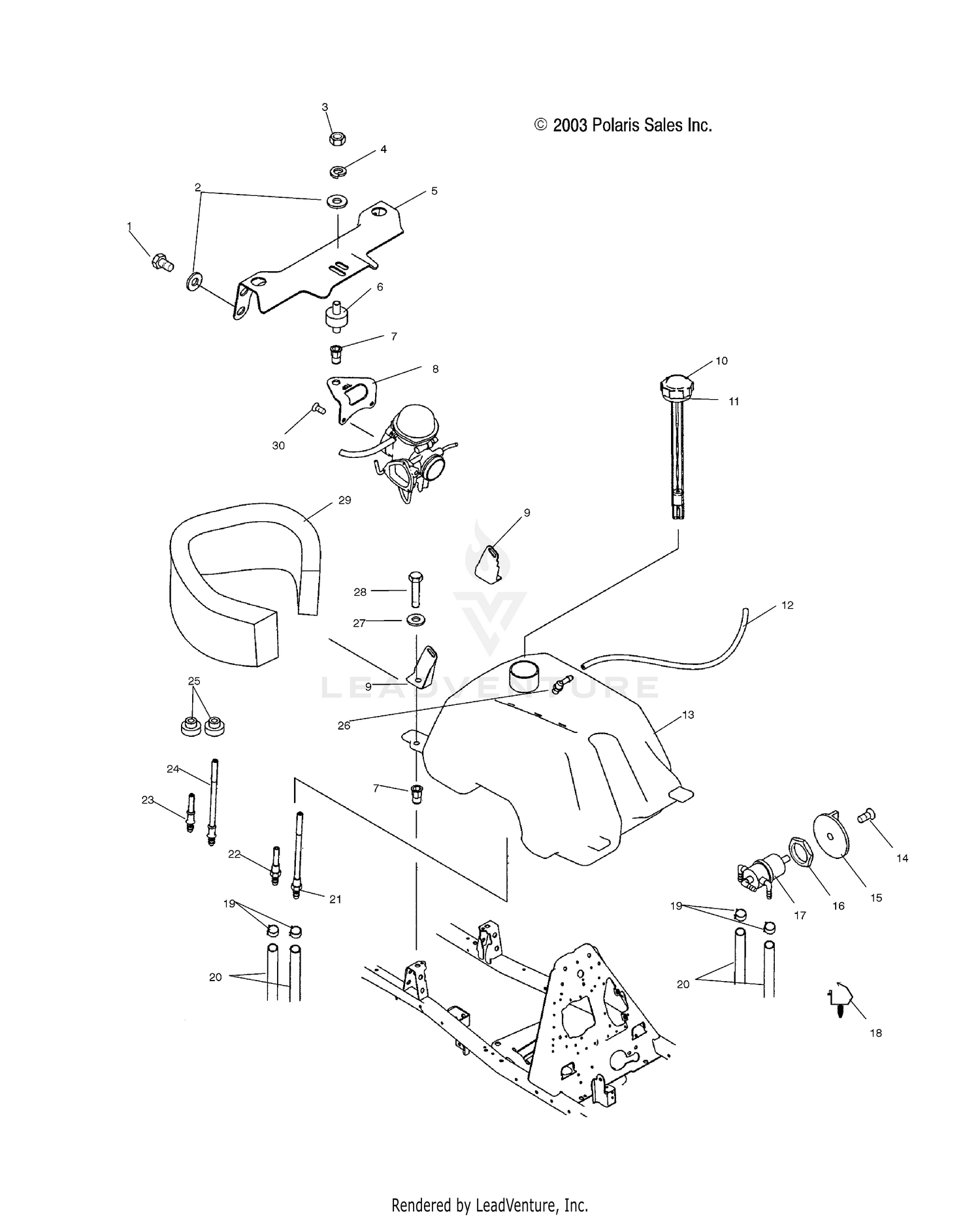

Fuel Tank And Carburetor Mounting - A04jd32aa (4977487748b03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bolt
7512276
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Washer, Flat
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
Nut
7542105
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Washer, Lock
7552801
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Bracket, Carburetor Support
5245671-067
|
|||
|
Unavailable |
|||
|
#6
Mount, Carburetor
3110050
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Nutsert
7547069
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Mount, Carb
5245674-067
|
$4.99 | ||
|
Unavailable |
|||
|
#9
Bracket, Fuel Cover Mount, LH
5222154
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Bracket, Fuel Cover Mount, RH
5222155
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUEL GAUGE CAP
2873626
Superseded by 2871442
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Gasket, Fuel Cap
5812123
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Line, Fuel
8360009-600
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Asm., Fuel Tank
2520183
|
|||
|
Unavailable |
|||
|
#13
Asm., Fuel Tank
2520362
|
|||
|
Unavailable |
|||
|
#14
Screw
7517505
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Knob, Fuel Valve
5432559
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Nut, Fuel Valve
5432733
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Valve, 3-Way
7052161
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Clip, Routing
7670109
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Hose, Fuel
8450103
Superseded by 8450117-250
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Fitting, Fuel Outlet, Main
7052146
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Fitting, Fuel Outlet, Reserve
7052149
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Fitting, Res., Press In
7052346
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Fitting, Main, Press In
7052350
|
|||
|
Unavailable |
|||
|
#25
Grommet
7052362
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Vent, Tank
5431053
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Washer, Flat
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Bolt
7512277
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Seal, Foam
5811899
|
|||
|
Unavailable |
|||
|
#30
Screw and Washer
3084205
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
