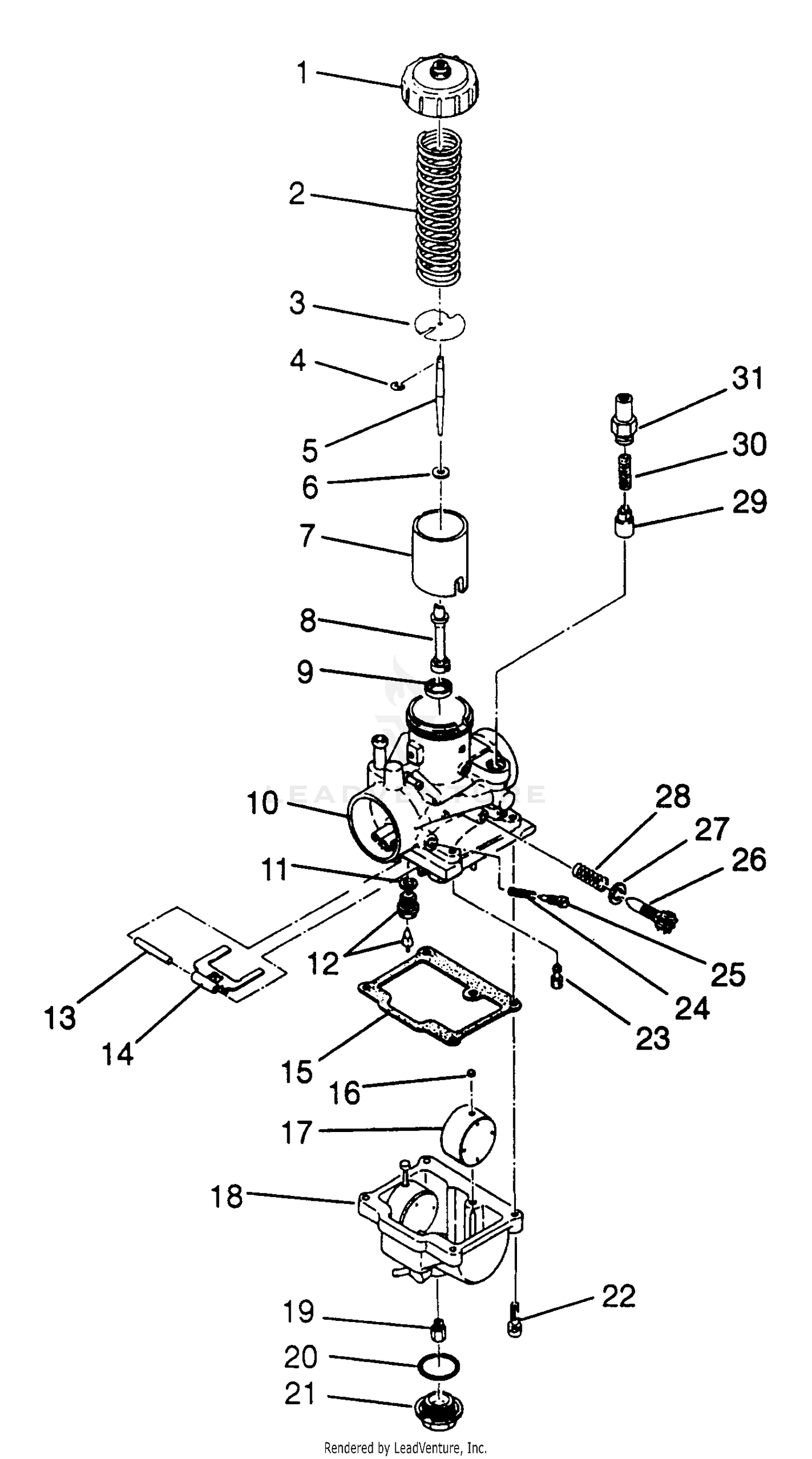

Carburetor 6x6 400l W968740 And 6x6 400l Norwegian N968740 (4935963596d013) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TOP ASM
3130184
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, THROTTLE
3130496
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE
3130027
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
E-Ring
3130003
Superseded by 3130508
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET NEEDLE,6-DH29
3130462
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
3130355
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE,THROTTLE,(1.5)
3130494
|
|||
|
Unavailable |
|||
|
#8
NEEDLE JET ASM.
3130429
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING,MAIN JET
3130596
|
|||
|
Unavailable |
|||
|
#10
CARBURETOR
3130642
Superseded by 3130710
|
$569.99 | ||
|
Unavailable |
|||
|
#11
WASHER(10)
3130047
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Valve, Needle
3130495
Superseded by 3131385
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, FLOAT
3130361
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ARM,FLOAT
3130018
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PACKING,FLOAT CHAMBER
3130020
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP,(10)
3130237
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FLOAT ASM.
3130430
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOWL, FLOAT (350)
3130443
|
|||
|
Unavailable |
|||
|
#19
JET,MAIN,HX.HD#210(10)
3130124
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING
3130239
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, GUIDE
3130432
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW & WASHER(10)
3130025
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
JET,PILOT,#30(10)
3130065
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING,AIR ADJUST
3130012
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW,AIR
3130011
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SCREW,THROTTLE STOP
3130009
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER
3130447
|
|||
|
Unavailable |
|||
|
#28
SPRING,THROT.ADJ.
3130436
|
|||
|
Unavailable |
|||
|
#29
PLUNGER ASM, STARTER
3130328
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, PLUNGER
3130006
Superseded by 3131764
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOLDER,GUIDE
3130199
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
