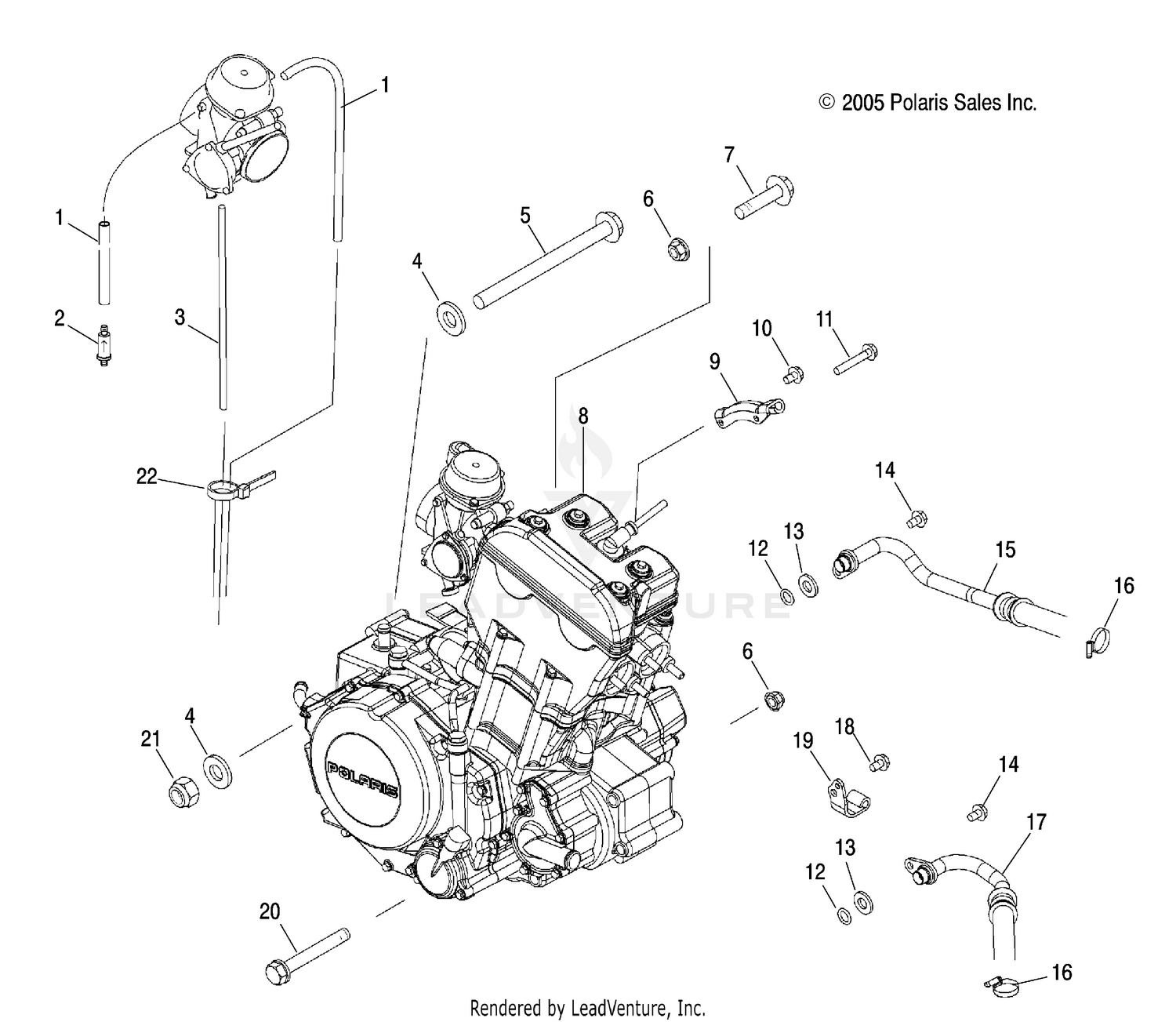

Engine Mounting - A06gp50aa (4999201899920189a13) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Filter, Fuel
2530009
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Line, Fuel
8360009-600
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Washer
7556264
|
|||
|
Unavailable |
|||
|
#5
Bolt
7518148
|
|||
|
Unavailable |
|||
|
#6
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw, Flange
7518559
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Short Block, ES500PLE040
3089946
|
|||
|
Unavailable |
|||
|
#9
Bracket, Mount, Clutch Cable
5248313
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7518647
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Screw
7518431
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-Ring
5411356
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Washer, Flat
7556113
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screw
7517915
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Asm., Hose, Oil Return
2520514
|
|||
|
Unavailable |
|||
|
#15
Asm., Hose, Oil Return
2520688
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP-HOSE,.875-SS
7080474
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Asm., Hose, Oil Suction
2520515
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Screw
7517653
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Bracket, Mount, Reverse Cable
5248314
|
$7.19 | ||
|
Unavailable |
|||
|
#20
SCR-HXFL-M10X1.25X115 8.8 ZOD
7518566
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Nut, Lock
7547096
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
