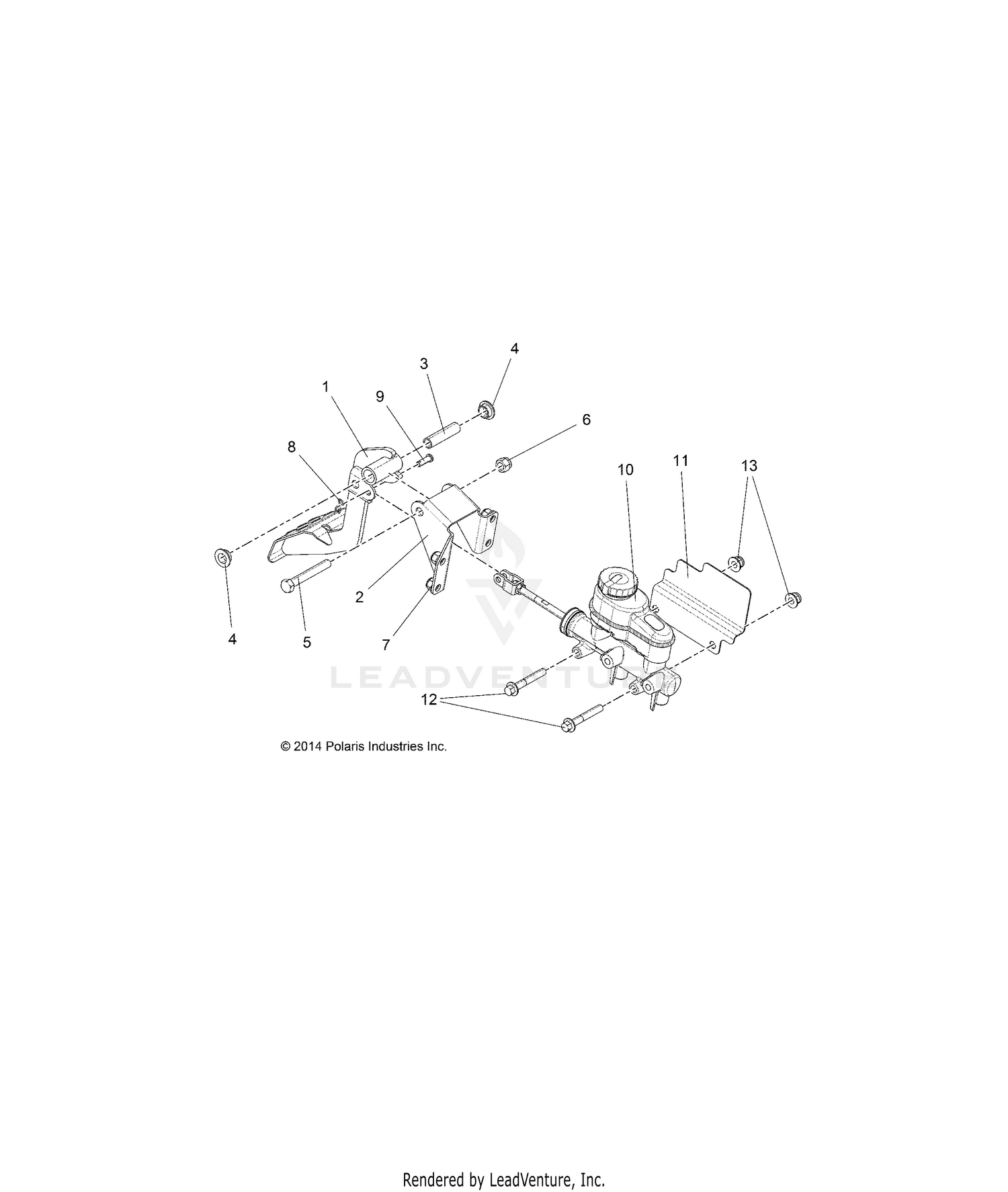

Brakes, Pedal And Master Cylinder - R15rma32fa (49rgrbrakefoot15325) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE, BLACK
1020198-458
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRKT-PEDAL MOUNT,BLK
5258523-329
Superseded by 5262184-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE-BRAKE PEDAL BUSHING
5335739
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING, PEDAL PIVOT
5437274
|
|||
|
Unavailable |
|||
|
#5
SCREW
7515417
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, NYLOK
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN-CLIP,14MM
7661140
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, CLEVIS
7661843
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ASM-M/C-T,HBII,STD PUSH ROD
1911515
Superseded by 1912463
|
$319.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIELD-MASTER CYL,GALV
5258202
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
7547317
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
