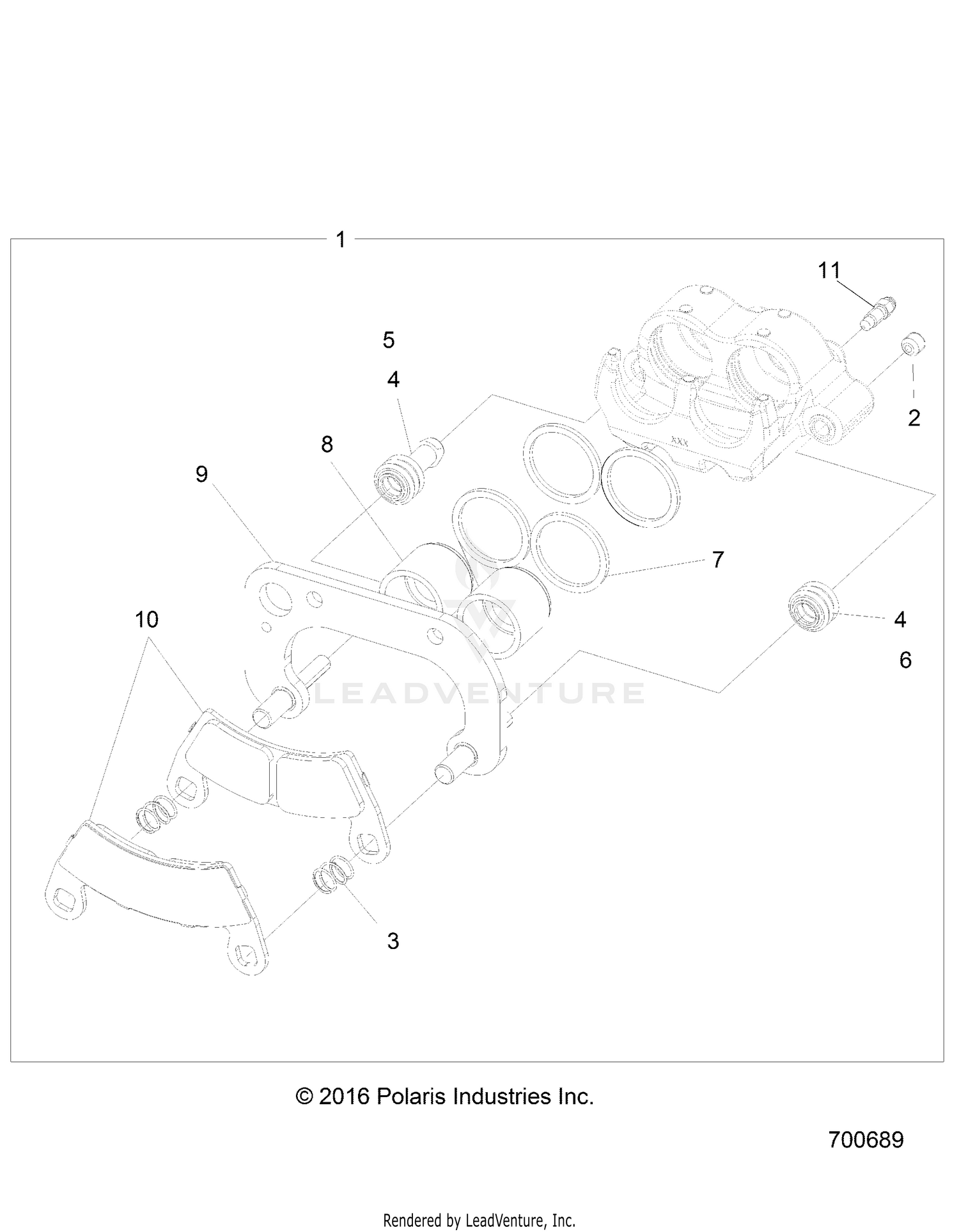

Brakes, Front Caliper - R18rmal4g9 (700689) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., CALIPER, BRAKE, DB, LH
1912484
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
ASM., CALIPER, BRAKE, DB, RH
1912485
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, SOCKET SET
7518863
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING-COMP,SS,.506X.546
7043649
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KIT-BOOT,FRONT BRAKE
1930642
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT-PIN BUSHING
5412505
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT-PIN SEAL
5412506
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, CALIPER, INNER
5412907
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON, BRAKE
5135134
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM-CALIPER MOUNT,DB1.375,M
1912125
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
KIT, BRAKE PAD, DB ASM.
2205949
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
K-ASM,HD,PAD,BRK,DB,1.375
2208933
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, BLEEDER
7081343
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
