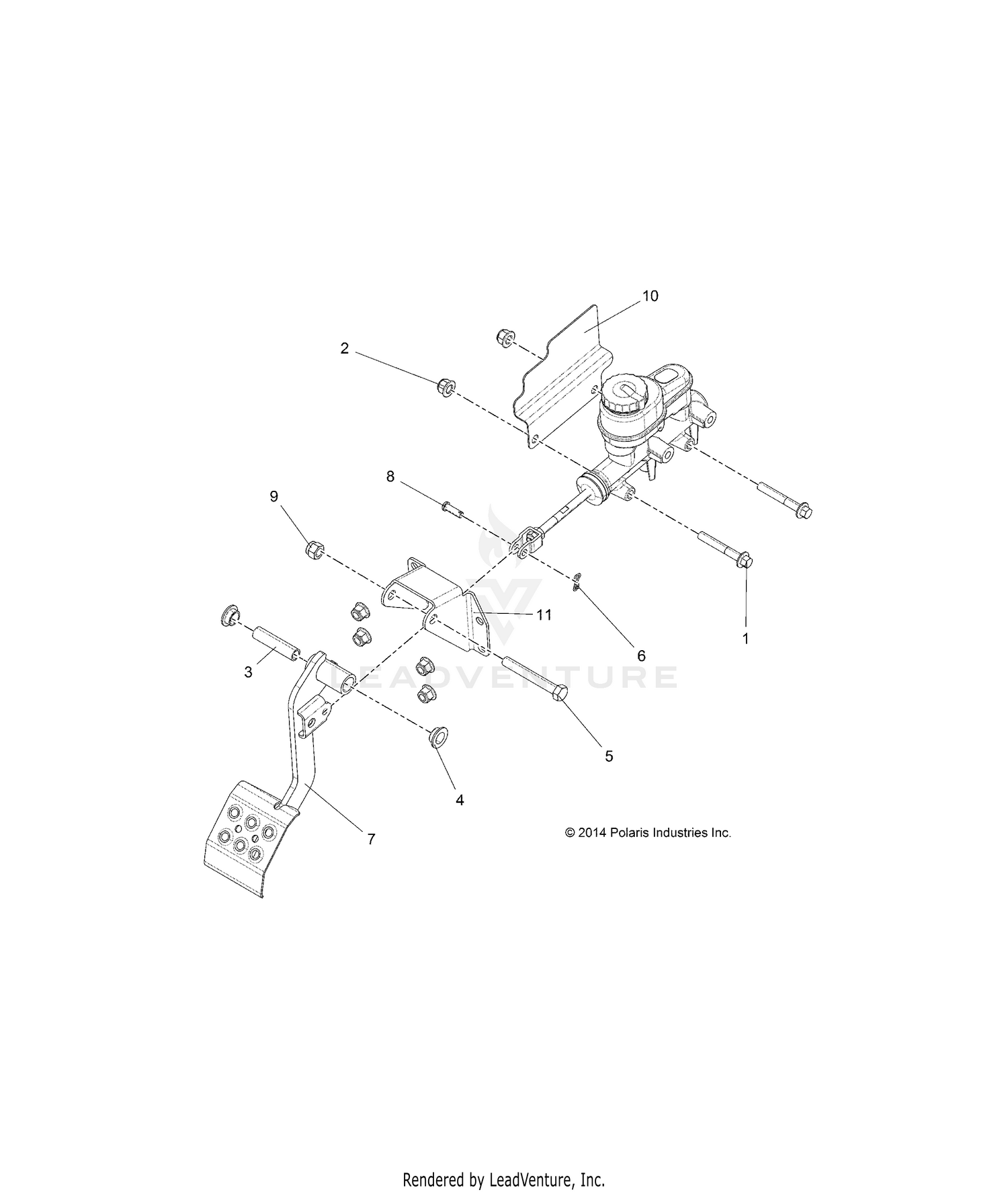

Brakes, Pedal And Master Cylinder Mounting - R17rmal4g9 (49rgrbrakefoot15ev) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW
7517281
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE-BRAKE PEDAL BUSHING
5335739
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSHING-PEDAL PIVOT
5439274
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
7515417
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN-CLIP,14MM
7661140
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PEDAL, BRAKE, BLACK
1020198-458
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, CLEVIS
7661843
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, NYLOK
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIELD-MASTER CYL,GALV
5258202
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRKT-PEDAL MOUNT,BLK
5262184-329
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
