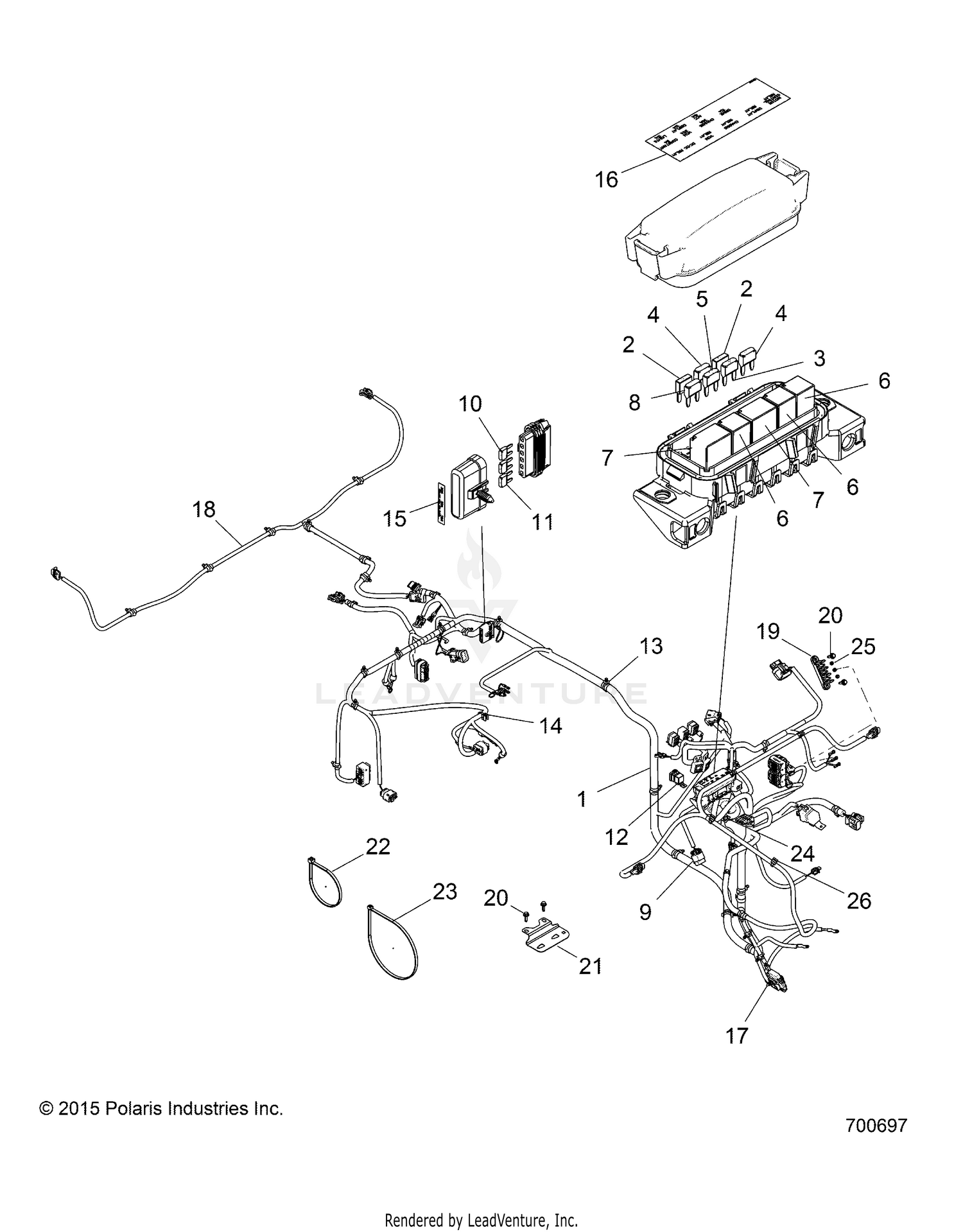

Electrical, Wire Harnesses - R16rmal4g9 (700697) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-CHASSIS,EV,LIION
2413241
Superseded by 2413745
|
$1,349.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE-15AMP,MINI BLADE
2410280
Superseded by 4010859
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE-MAIN,30 AMP
2434015
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RELAY-SPDT,SERIES 301,SEALED
4011284
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FUSE-5A,MINI BLADE
4011652
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, DIAGNOSTIC W/CLIP
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE, 5A, MINI BLADE
4012852
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE, 30, MINI BLADE 58V
4013561
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY
4015693
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP-EDGE,DIA5-50MM,OUT-SER
7081824
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LABLE-48V, FUSE HOLDER
7183001
|
|||
|
Available to order. Add to View Price |
|||
|
#16
LABLE-FUSE, RELAY CENTER
7183002
|
|||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
7670101
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HARNESS, CARGO BOX
2412288
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BLOCK-TERMINAL,3 POST,TALL
4015778
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, FUSE BLOCK
5253928
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCR-10-24X1/2,PHTXTRIRD,SEMS-Y
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP, WIRE, ADHESIVE BACK
7670134
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
