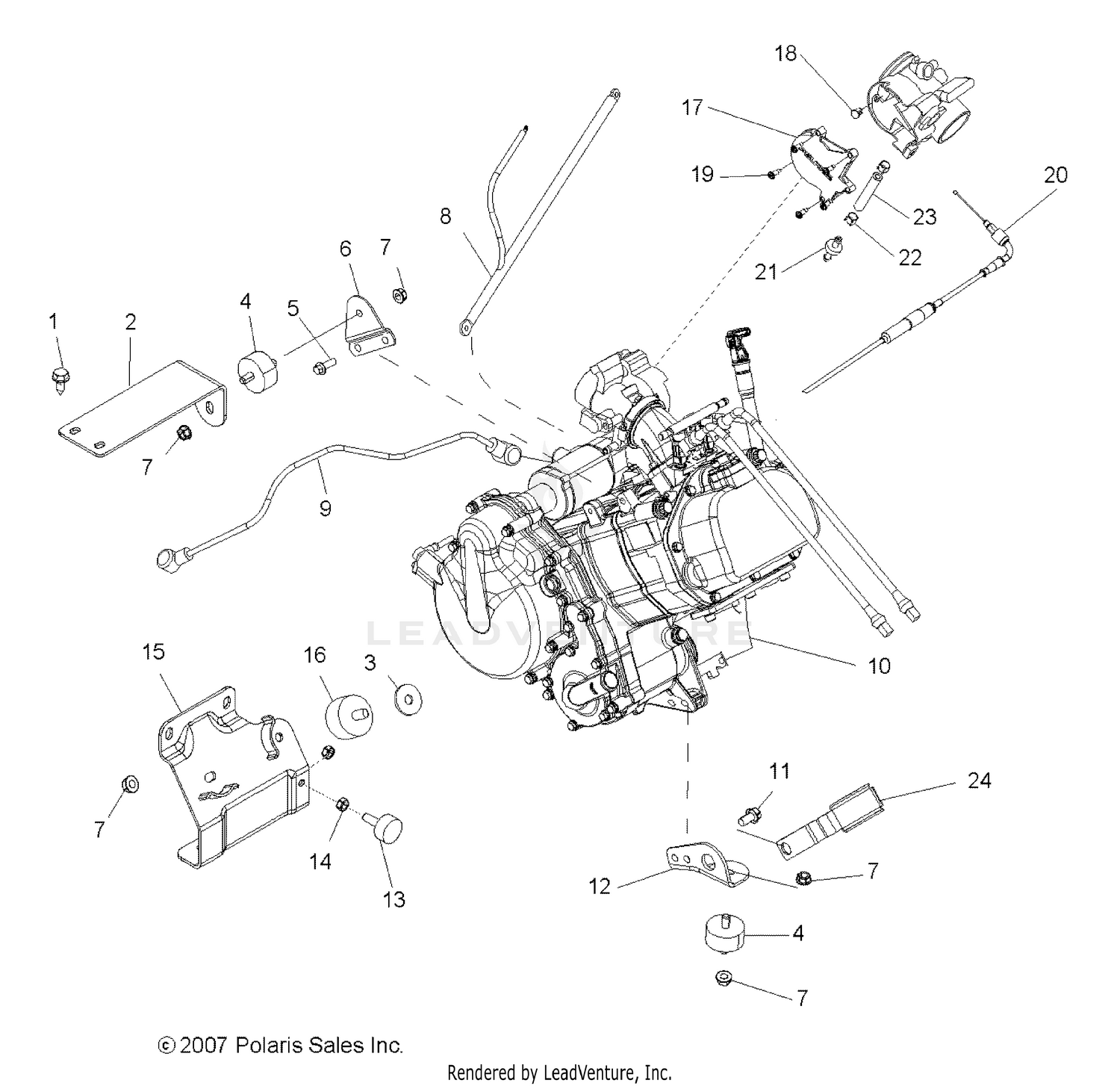

Engine, Mounting - R08rh68 All Options (49rgrenginemtg086x6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bracket, Motor Mount, Top
5249454
|
$18.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
Washer, Flat
7555823
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ISOLATOR-3/8-24M/M,60DURO
3021936
Superseded by 3023593
|
$27.99 | ||
|
Unavailable |
|||
|
#5
Screw
7516734
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bracket, Engine Mount, Top
5247368
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-3/8-24 FLG LOC
7547263
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Cable, Battery, Ground
4011214
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Cable, Solenoid/Starter
4011249
|
$32.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Kit, Short Block
2203065
|
|||
|
Unavailable |
|||
|
#11
Bolt
7518364
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Mount, Engine, Lower, Front, Black
5244771-067
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Stop, Torque
3021354
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Nut
7542440
Superseded by 7542404
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Mount, Engine, Transmission, Black
1015065-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Mount, Rubber, Rear
3021935
|
|||
|
Unavailable |
|||
|
#17
Asm., Throttle Body Cover and O-Ring
1202578
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Guide, Cable
3130543
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw, Shoulder
3131515
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cable, Throttle
7081247
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Valve, Check
7052038
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Hose
8450113
|
|||
|
Unavailable |
|||
|
#24
Bracket, Hose Retention
5250738
|
$21.79 | ||
|
Unavailable |
|||
