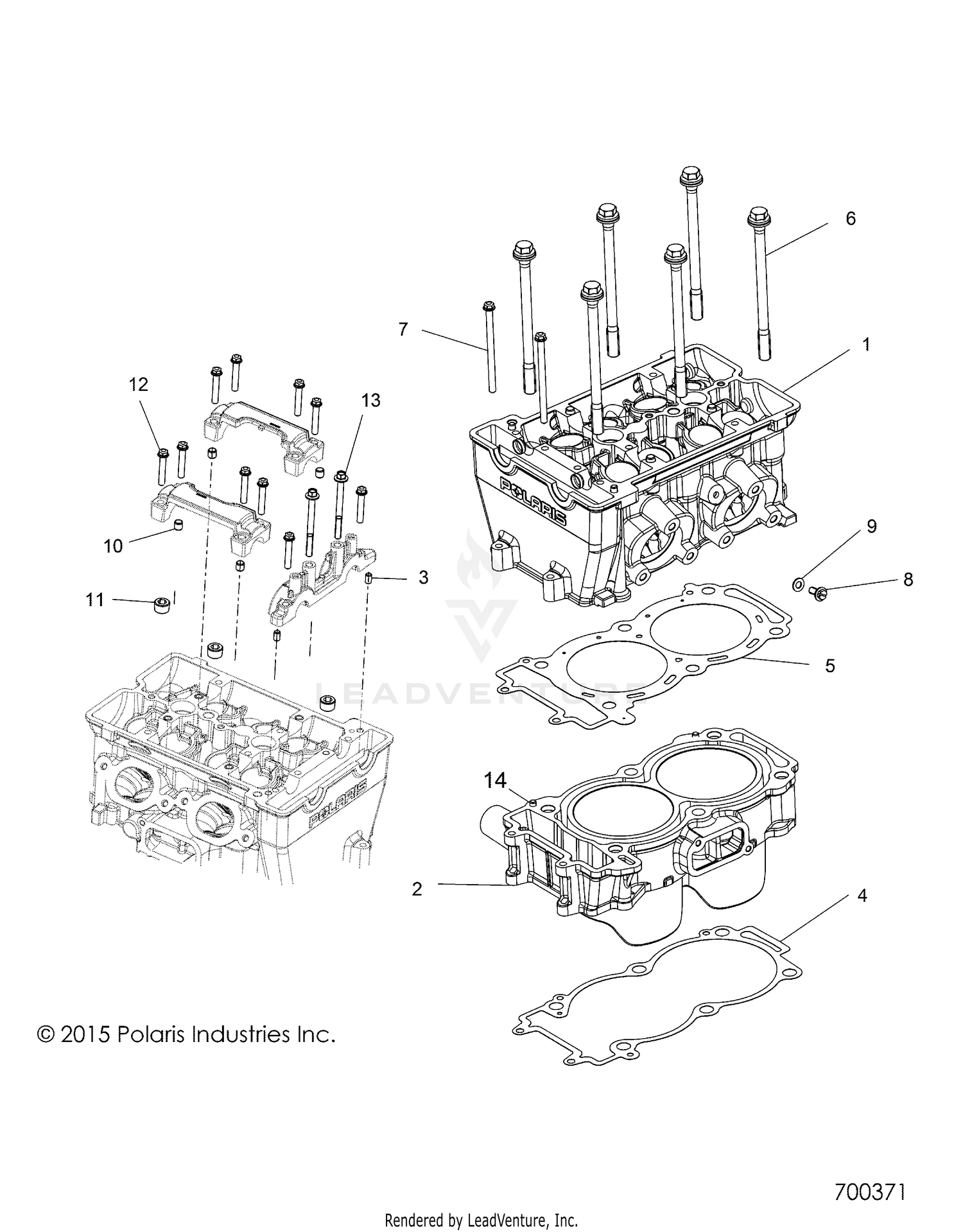

Engine, Cylinder And Head - R16rt_87 All Options (700371) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., CYLINDER HEAD
3022798
|
$1,059.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM., CYLINDER
3022579
|
$624.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
5137624
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, BASE
5253037
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, CYLINDER HEAD
5813737
|
$55.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEAD
7519123
|
$16.49 | ||
|
Unavailable |
|||
|
#7
SCREW
7519153
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, BLEED
7517679
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, FLAT
7555998
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DOWEL-HOLLOW M8X8
7662247
Superseded by 7662391
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG
7052413
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCR-HXFL-M6X1.0X35 10.9 ZY3
7519870
Superseded by 7519978
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-HXFL M6X1.0X70 10.9
7519871
Superseded by 7520688
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN-DOWEL,M6X10
5132835
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
