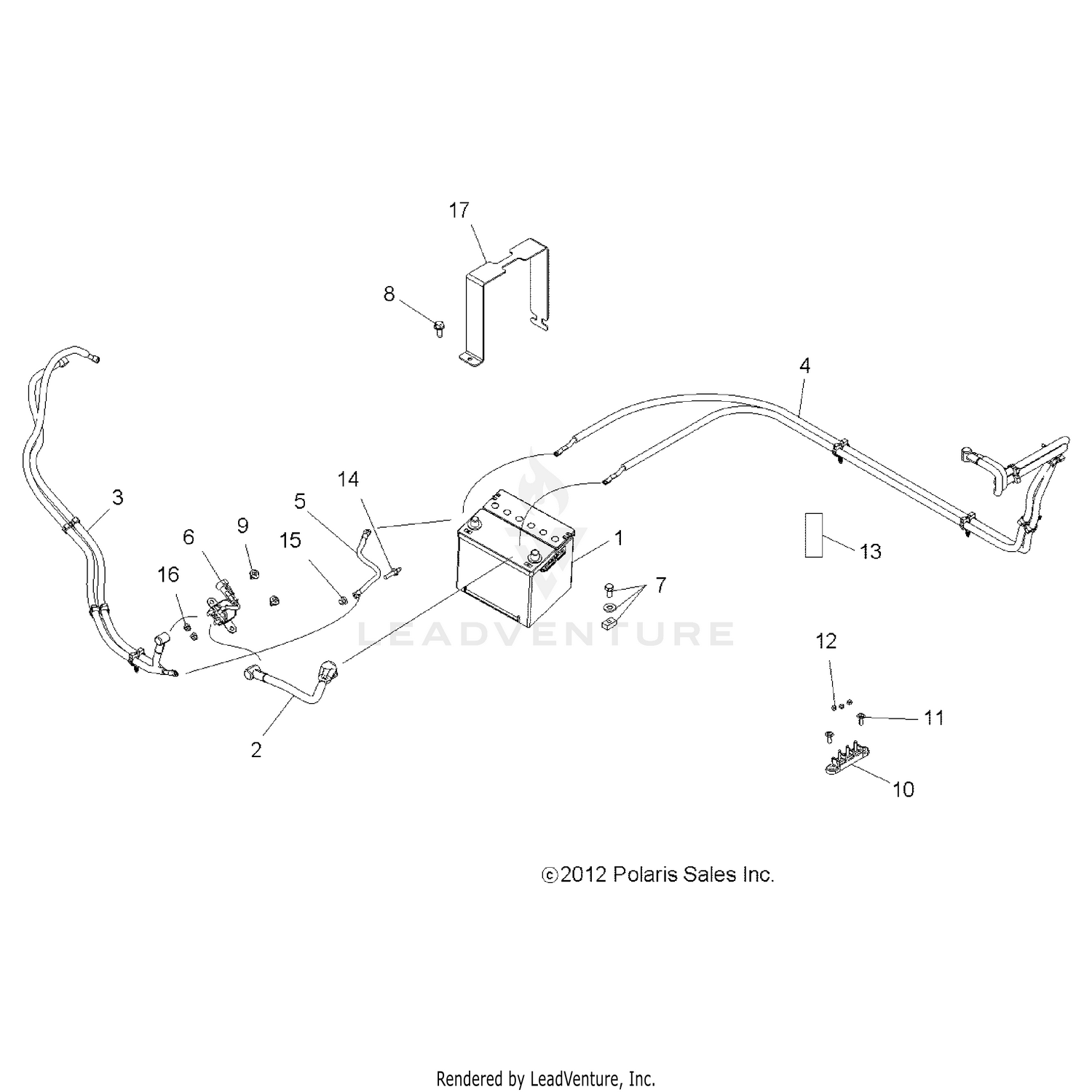

Electrical, Battery, Eps - R13uh88/uh9e All Options (49rgrbattery13900xp) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY-575 CCA,FLOODED,SVC
4014043
Superseded by 4014132-P
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
BATTERY-575 CCA,FLOODED,SVC
4014132
Superseded by 4014132-P
|
$174.99 | ||
|
Unavailable |
|||
|
#1
BATTERY-HD,AGM,SEALED,R2
4081855
|
$229.99 | ||
|
Unavailable |
|||
|
#2
CABLE, BATTERY TO SOLENOID
4014048
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM., CABLE, STARTER TO SOLENOID/GROUND
4013376
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, TERMINAL BLOCK
4014060
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, BATTERY TO GROUND
4014049
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SOLENOID, STARTER
4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
KIT, BATTERY BOLT
2202802
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
7518513
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
7512026
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BLOCK, TERMINAL, 3 POST
4011892
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
TRIM EDGE
5521131
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
STUD
7519333
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE
7547270
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRKT-BATTERY STRAP
5256611-329
Superseded by 5256611
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, STRAP, BATTERY
5257221
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
