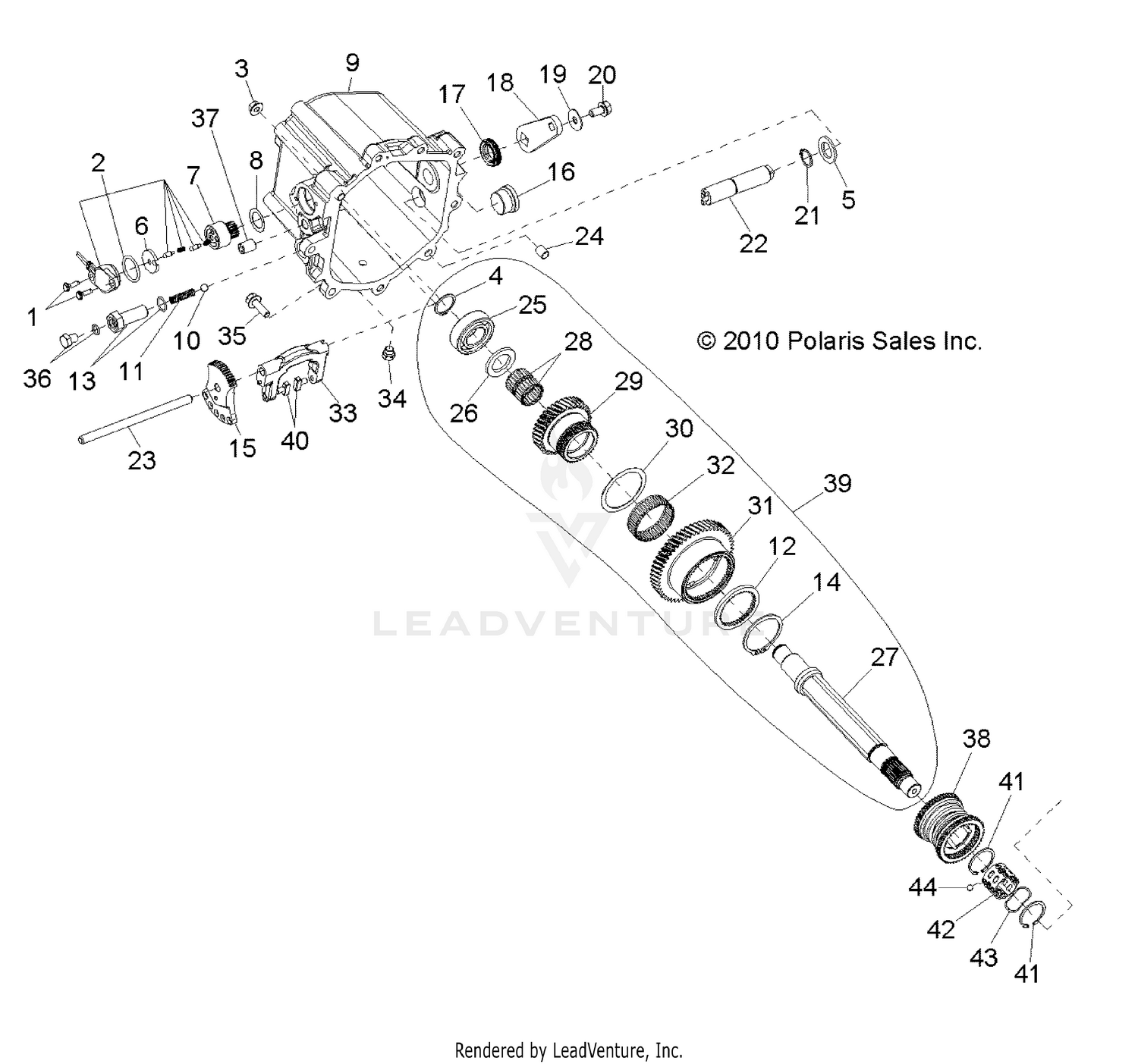

Drive Train, Main Gearcase Internal Components 2 - Z14ve76fx/fi (49rgrtransintl211rzrsi) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Subasm., Transmission
3235360
|
$3,604.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Screw, Flange
3234525
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Sensor
3234871
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Nut, Flange
3234500
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Ring, Retaining
3234552
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer
3234899
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER
3234523
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SENSOR, DRUM GEAR
3234522
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
3234521
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
ASM., COVER, SHIFT HOUSING
3234890
|
$279.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BALL
3234520
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
3234870
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, RETAINING
3234874
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM., SLEEVE, DETENT
3234481
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
RING, RETAINING
3234879
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, GEAR DETENT
3235338
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, FILL, W/O-RING
5133736
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, OIL
3234493
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, SHIFT CABLE
3234492
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER
3234491
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
3234490
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING, RETAINING
3234494
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ASM., SHIFTER
3235284
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN, PIVOT
3234914
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BUSHING, DOWEL
3234503
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BEARING, BALL
3235277
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, THRUST
3235276
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SHAFT, CLUTCH, INTERMEDIATE
3235302
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Kit, Clutch Shaft Asm.
3235069
Superseded by 3235271
|
$749.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Kit, Clutch Shaft Asm.
3235070
Superseded by 3235272
|
$639.99 | ||
|
Unavailable |
|||
|
#30
WASHER, THRUST
3234905
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
GEAR, CLUTCH, LOW, 53T
3235275
|
$339.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING, NEEDLE
3234536
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
YOKE, CLUTCH
3235339
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG, DRAIN
5133731
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, FLANGE
7518172
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
ASM., SCREW
3234869
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SET, SCREW
3234484
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR, SHIFT
3235072
|
$539.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
KIT, CLUTCH SHAFT ASM.
TBD
|
|||
|
Unavailable |
|||
|
#40
BLADE, CLUTCH YOKE
3234868
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
RING, RETAINING
3235074
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
CAGE, BALL BEARING
3235075
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPRING, WAVE
3235076
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BALL
3235077
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
