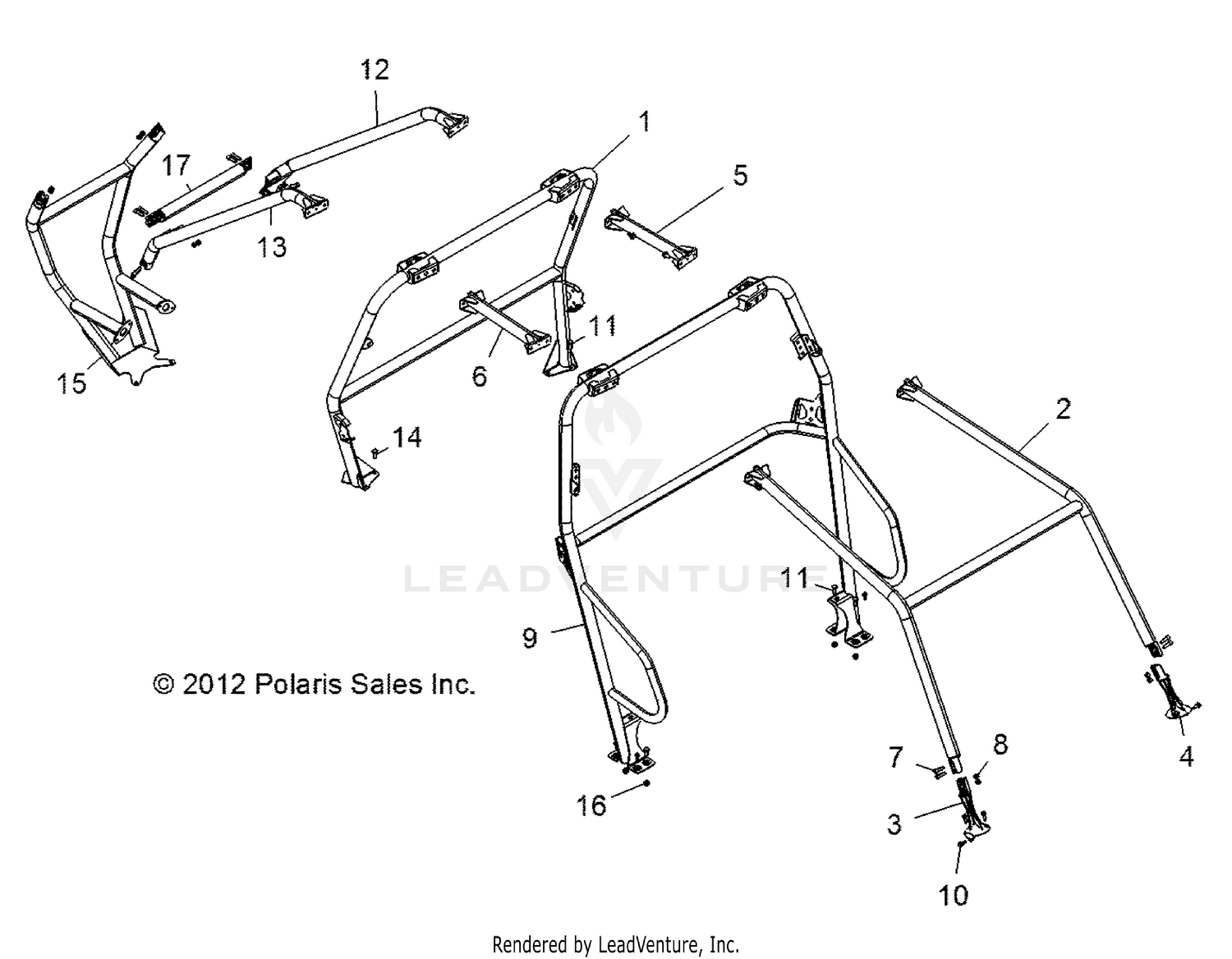

Chassis, Cab Frame And Side Bars - R13xt9eal (49rgrcab13jagx) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME, CAB, REAR, VOODOO BLUE
1019682-619
|
$1,224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME, CAB, FRONT, VOODOO BLUE
1019678-619
|
$669.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BASE, CAB FRAME, FRONT, RH, VOODOO BLUE
5632414-619
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BASE, CAB FRAME, FRONT, BASE, LH, VOODOO BLUE
5632415-619
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAB, TOP, LH, VOODOO BLUE
1019680-619
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAB, TOP, RH, VOODOO BLUE
1019681-619
|
$133.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
7517935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT-HEX-3/8-16 A ZTB NYL
7542451
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FRAME, CAB, MID, VOODOO BLUE
1019679-619
|
$1,274.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
7518702
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
7519308
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRAME, CAB, LH, EXTERNAL, VOODOO BLUE
1019683-619
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FRAME, CAB, RH, EXTERNAL, VOODOO BLUE
1019684-619
|
$226.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FRAME, CAB, EXTERNAL, VOODOO BLUE
1019685-619
|
$599.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
7547385
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FRAME, CAB, EXTERNAL, VOODOO BLUE
1019687-619
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER
7556459
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-TXPHM6X1.0X25 8.8 RIE
7518535
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WSHR-6.4X18.0X1.6 ZPB
7556064
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-HXFL-M10X1.5X20 8.8 Z NYL
7518460
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE
7547317
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
