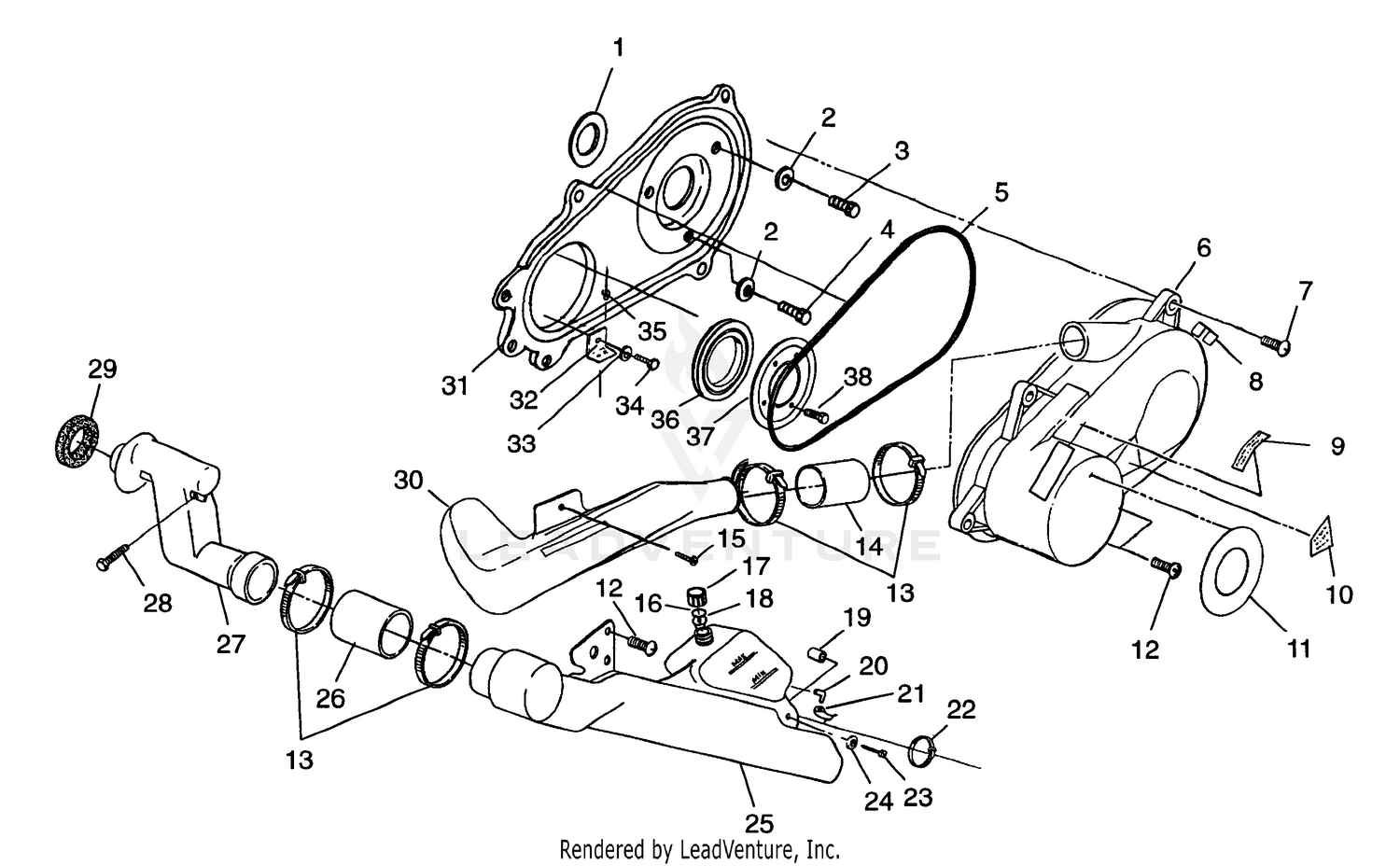

1997 Polaris SPORTSMAN 400L CLUTCH COVER Sportsman 400L W97AC38C (4939673967C006) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAL,CVR,CASE 1/2
5411180
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
7517219
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT(10)
7512278
|
$2.99 | ||
|
Unavailable |
|||
|
#5
SEAL,CLUTCHCOVER
5521301
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER-CLUTCH,FRONT,ST-801HS
5431961
Superseded by 5433542
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW(10)
7512093
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP,CLUTCH COVER(10)
7670051
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
DECAL,CLUTCH COVER Substituted by 7078689
7074946
|
|||
|
Unavailable |
|||
|
#10
DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]
7072789
|
|||
|
Unavailable |
|||
|
#11
DECAL,AUTO.TRANSMISSION
7074782
|
|||
|
Unavailable |
|||
|
#12
SCREW(10)
7512094
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOOT,CLUTCH INTAKE
5410421
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUG-CAP 9X(GREEN) FLEX TEMP
5431895
Superseded by 5433774
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER, NYLON(10) [No Longer Available]
5432375
|
|||
|
Unavailable |
|||
|
#20
FITTING,90 DEGREE
7052065
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW(10)
7512025
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER(10)
7555783
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
DUCT,INLET DOWNTUBE,LIQ
5432442
|
|||
|
Unavailable |
|||
|
#26
BOOT, INTAKE
5410509
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
DUCT, INLET, TOP
5431261
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW(10)
7512017
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SEAL, INTAKE
5810480
|
|||
|
Unavailable |
|||
|
#30
DUCT,AIR OUT,CLUTCH
5432615
|
|||
|
Unavailable |
|||
|
#31
COVER,CLUTCH INNER 400
2200790
Superseded by 2201159
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRKT,CLUTCH COVER,BLK.
5241213-067
|
|||
|
Unavailable |
|||
|
#33
WASHER(10)
7555935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW(10)
7512095
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
RIVET,INTERLOCK,B(50)
7661638
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
Seal, Cover Case
5410575
Superseded by 5412637
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRKT,RETAINER,SEAL
5222446-067
|
|||
|
Unavailable |
|||
|
#38
Asm., Screw and Washer
-------
|
|||
|
Unavailable |
|||
