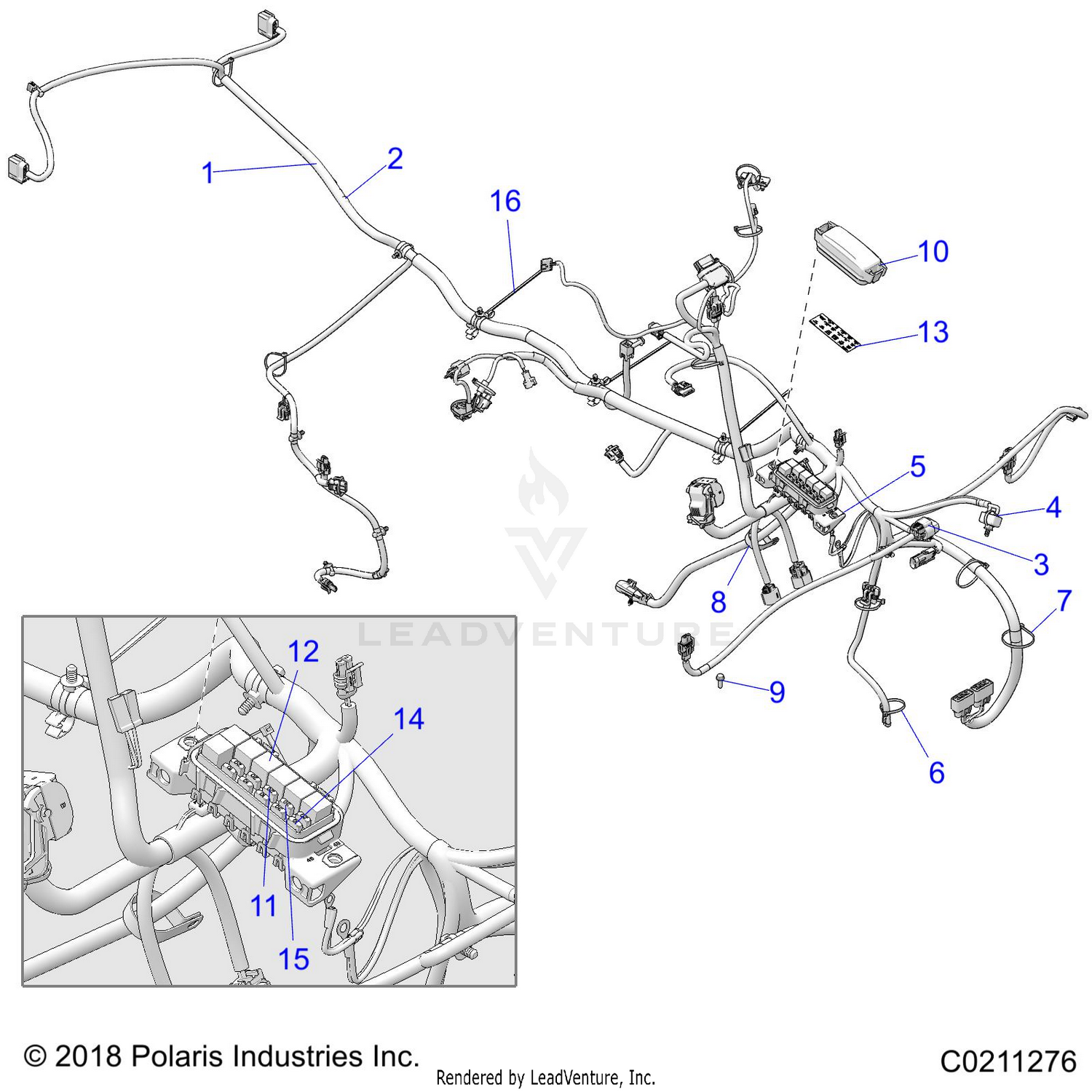

Electrical, Main Wire Harness - A20see50a1/a5/ca1/ca5 (c0211276) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS-MAIN,SPMN 450 HO MECH
2414899
|
$904.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DIODE, 6 AMP
2411035
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLIP, DIAGNOSTIC
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BREAKER-CIRCUIT,15AMP,SEALED
2411086
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
KIT, FUSE LINK, .8MM
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Clamp, Coated
7080851
Superseded by 7080908
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, FUSEBOX, 48WAY
4015011
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, FUSE CENTER
5415598
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY-SPST,12V,20A,EPXY,HFA
4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LABEL, FUSE BOX
7180889
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
FUSE-MAIN,30 AMP
2434015
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP-MOD OMEGA,1X12MM OD HOSE
7082593
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
