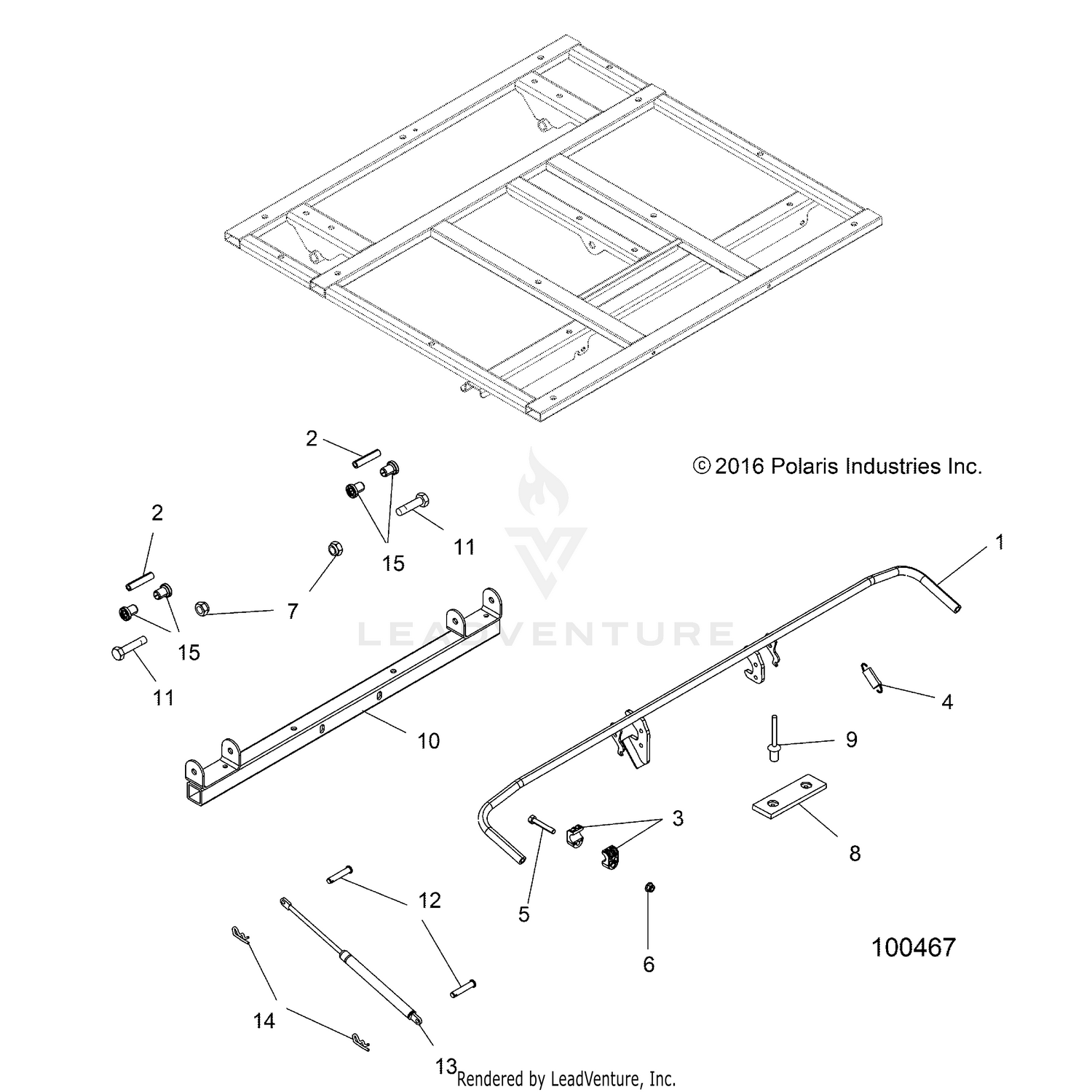

Body, Dump Box Lever And Shock Mounting - A19s6e57b1 [100467] Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LATCH, BOX, BLACK
1016753-067
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT, A-ARM, SHORT
5020826
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSHING-BOX,LATCH
5434226
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING-EXHAUST
7041687
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
7515319
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-5/16-18 HX FLG NL-Y
7542343
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, NYLOK
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUMPER, BOX BASE
5413690
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
RIVET
7621418
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WELD-BOX,FRAME,PIVOT,E-COAT
1022024-329
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
7515472
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, CLEVIS
7661878
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHOCK, DUMP BOX
7043232
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP
7661067
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSHING, A-ARM., SHORT, BLACK
5438895
Superseded by 5439270
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY)
1543326
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
