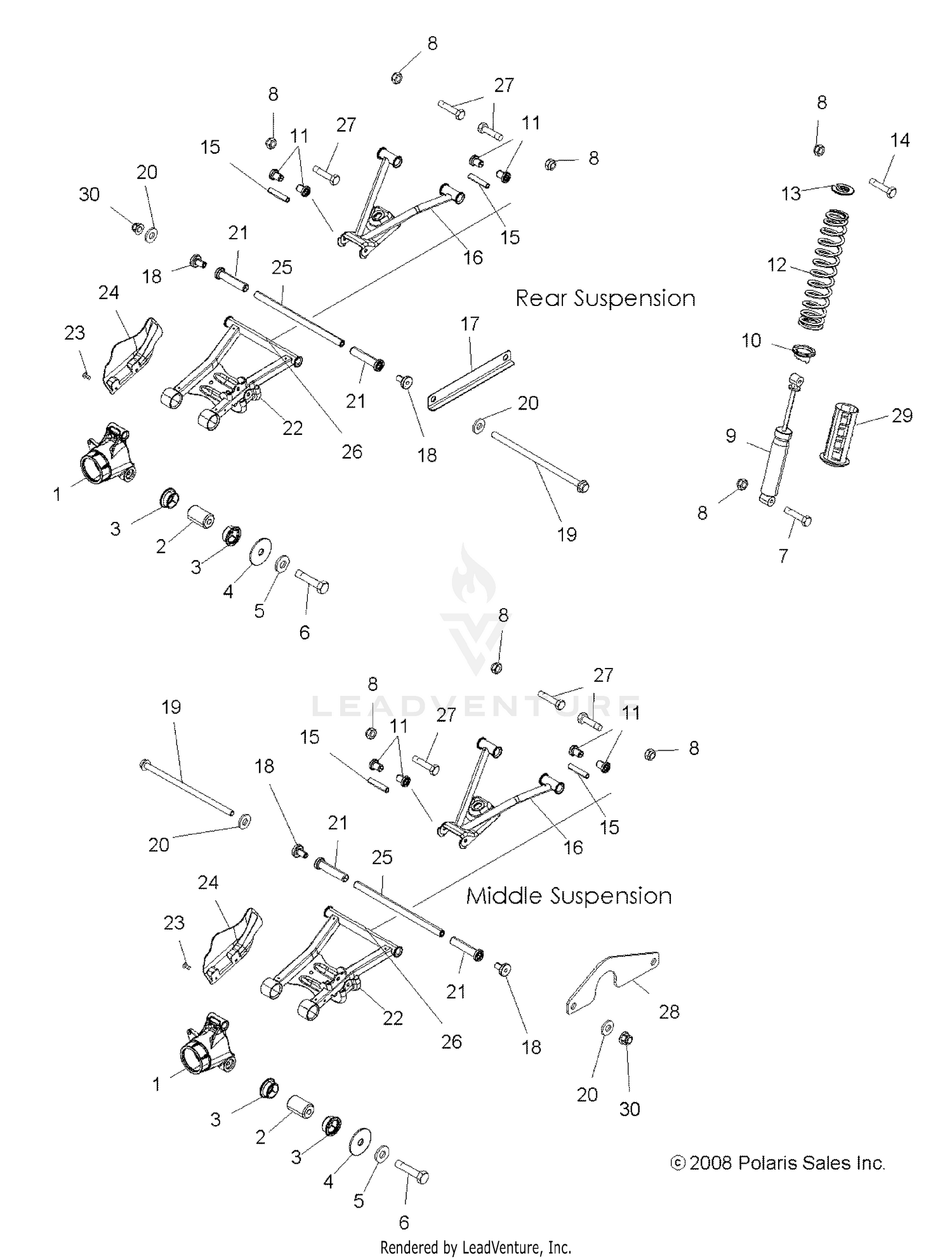

Suspension, Rear - A11cf76aa (49atvsusprr096x6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Carrier, Wheel Bearing
5135563
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bushing, Bearing Carrier
5632291
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Bushing, Control, Lower, Black
5438902
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Washer, Flat
7555740
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Washer, Lock
7552614
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Bolt
7517873
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Screw
7515415
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
Nut, Nylok
7542439
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
Shock, Rear
7043451
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Cam, Adjusting, Spring
5631014
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BUSHING, A-ARM., SHORT, BLACK
5438895
Superseded by 5439270
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spring, Compression
7041986-067
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RETAINER-SPRING,STEEL
5251753
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Screw
7515415
|
$1.49 | ||
|
Unavailable |
|||
|
#15
Shaft, A-Arm, Short
5020826
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Arm, Control, Upper, Black, LH
1014320-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Arm, Control, Upper, Black, RH
1014321-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Strap, Gearcase, Rear, Black
5252941-067
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Bushing, Pivot, Wear
5136760
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Screw
7519065
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Washer, Flat
7556153
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
Bushing, Control Arm
5436833
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Control, Lower, Black, LH
1015888-067
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Control, Lower, Black, RH
1015889-067
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
Shield, CV, Rear, Black, LH
5435008-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Shield, CV, Rear, Black, RH
5435009-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Tube, Pivot
5136759
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Fitting, Lub
7080433
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Bolt
7515472
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Strap, Mid Gear Case, Black
5252849-067
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Sleeve, Shock Protector
5433551
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Nut
7547344
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
