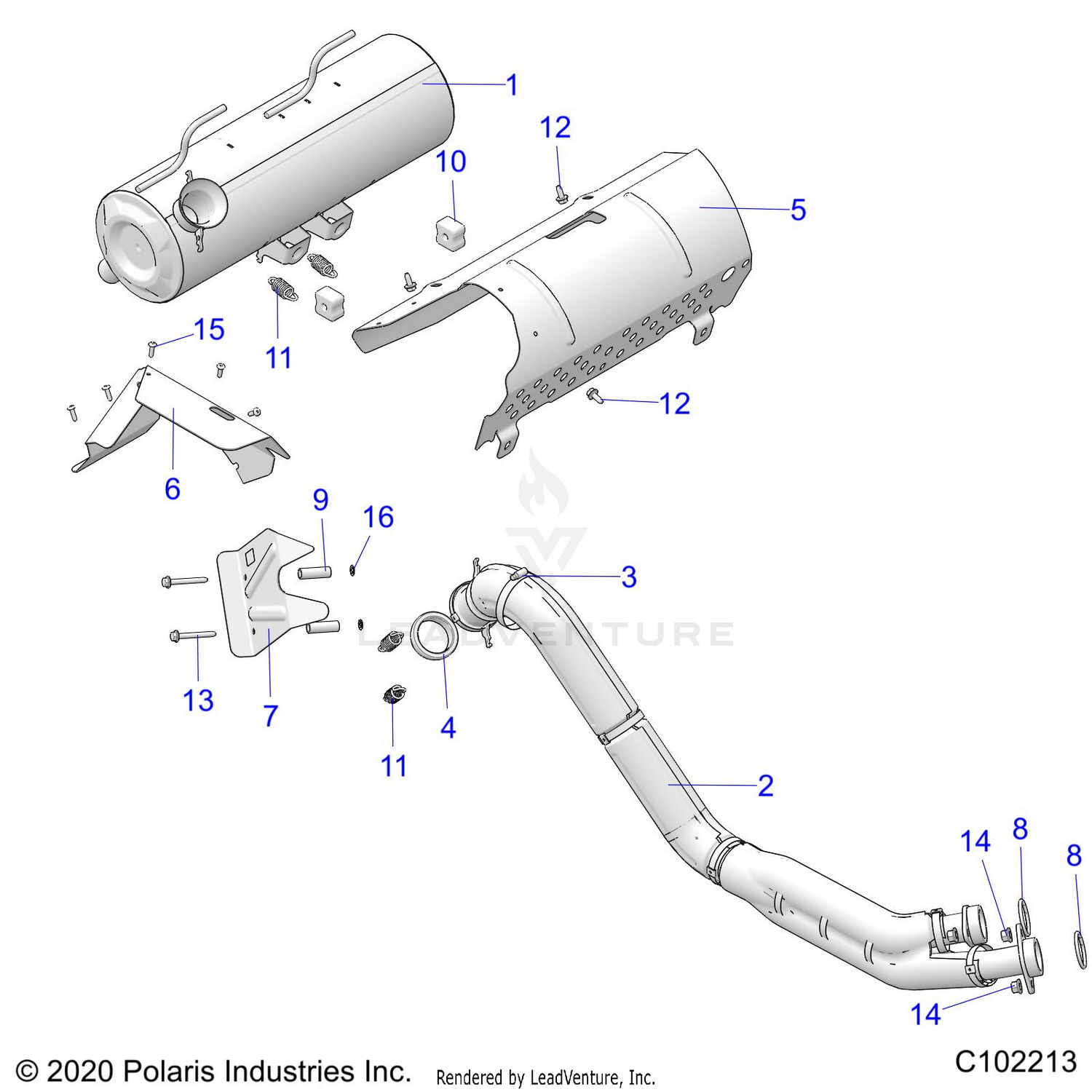

2020 Polaris SPORTSMAN 850 HIGH LIFTER EDITION ENGINE, EXHAUST - A20SXN85A8/CA8 (C102213) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT-1/2-20X5/8 HXHDCAP-GR5-P
7512666
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
WASHER-CLEAN OUT .51X.75X.09
7556230
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#1
WELD-EXHAUST SILENCER,BLK
1262970-489
|
$534.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-EXHAUST PIPE,TWIN
1263071
|
$454.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP-WORM DRIVE,.44WX2.75 DIA
7080809
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, EXHAUST
3610179
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Shield, Box, Storage
5252266
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD, EXHAUST
5258649
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Shield, Exhaust Spring
5253865
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, EXHAUST, SEALING
5255577
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Spacer, Exhaust Shield Spring
5336190
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET, SILENCER, MOUNT
5413383
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING-EXHAUST
7041789
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING-EXHAUST S.S. SHOTPEENED
7043727
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT,M6X1.0X15,HXFLG,TAP/T-OD
7518513
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-HXFL-M6X1.0X50 TDFM ZPB
7519090
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-LOCK M8X12.7ODX2MM ZY3
7556111
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-HEX-M8X1.25 8 ZPB.
7547076
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT-HXFL-M8X1.25 A493 EM6340
7547803
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIVET-3/16-.090-.290
7661637
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
RETAINER, BOLT
7670154
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
