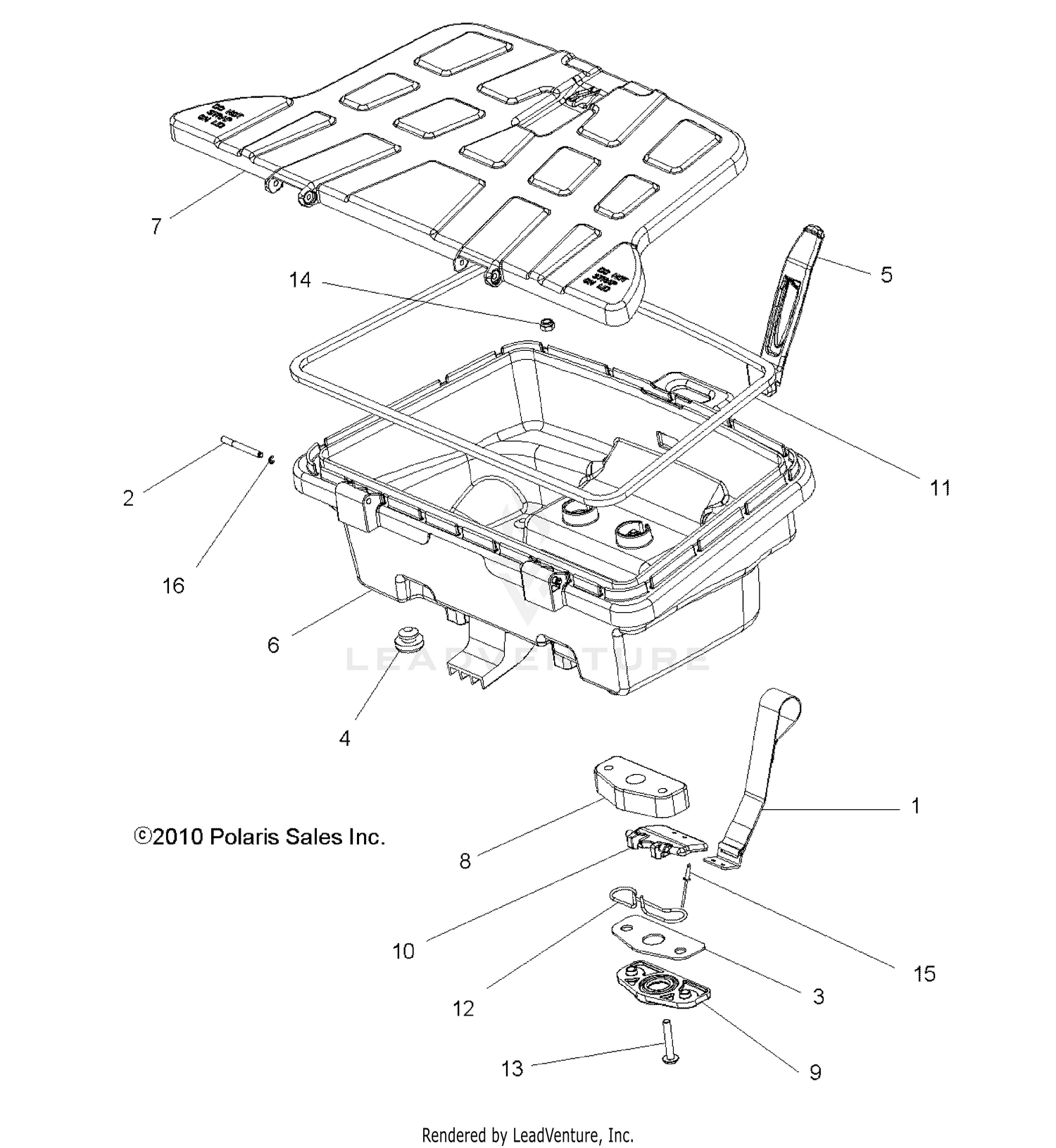

Body, Cargo Rack - A11dx85ag (49atvrackmtgrr11sptrg850) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Strap, Seat Latch
2684697
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Pin, Hinge
5137573
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Plate, Seat Latch
5251162
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUMPER-RUBBER
5412067
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Strap, Retainer, Hood
5412606
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Box, Storage, Base
5438767
|
$102.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Box, Storage, Lid
5438768
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Body, Seat Latch
5437119
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Plate, Bottom, Seat Base Latch
5438770
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HANDLE-SEAT BASE LATCH
5437121
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Seal, Foam
5521828
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Spring, Seat Latch
7081466
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7519191
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Nut, Nylok Flanged
7542153
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Rivet
7662000
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Ring, Retaining, E-Clip
7710670
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
