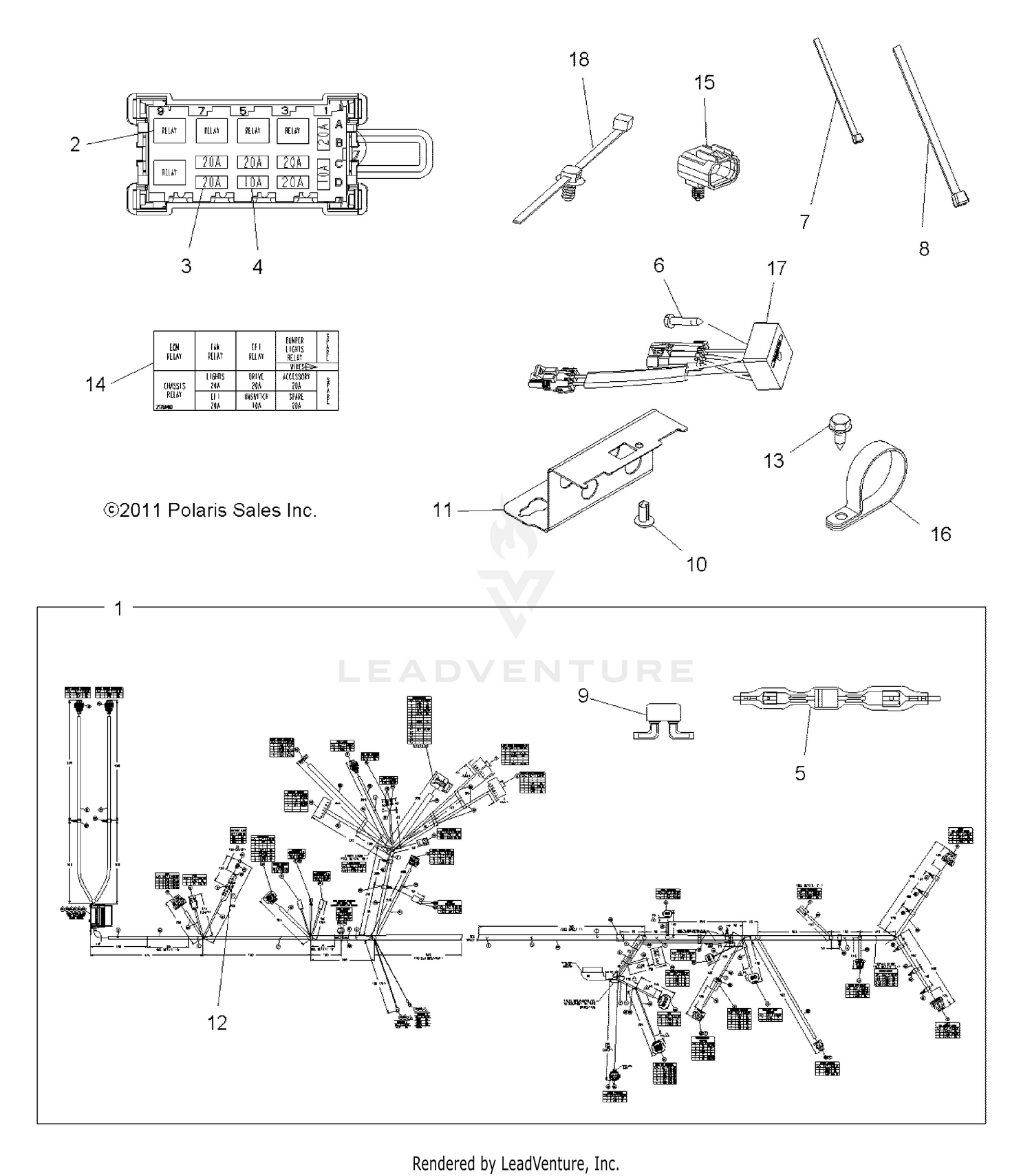

Electrical, Harness - A12tn55aa/az (49atvharness12spx2550) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Kit, Harness, Resistor Module
2204890
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Harness, Main
2411464
|
$869.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Cover, Relay/Fuse Center
5438758
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
Kit, Harness, TPS
2878498
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Diode, 6AMP
2411035
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7518418
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Breaker, Circuit, 10 AMP, Sealed
2410692
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Clip, Push On
7670125
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Bracket, Fuse Block
5253502
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Kit, Fusible Link, .8 mm
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Kit, Fusible Link, 1.0 mm
2202670
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7512095
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Label, Fuse Box
7175140
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
Cover, Diagnostic
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP-HOSE
7080807
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Relay, Solid State, 9 AMP
4012829
|
$89.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
