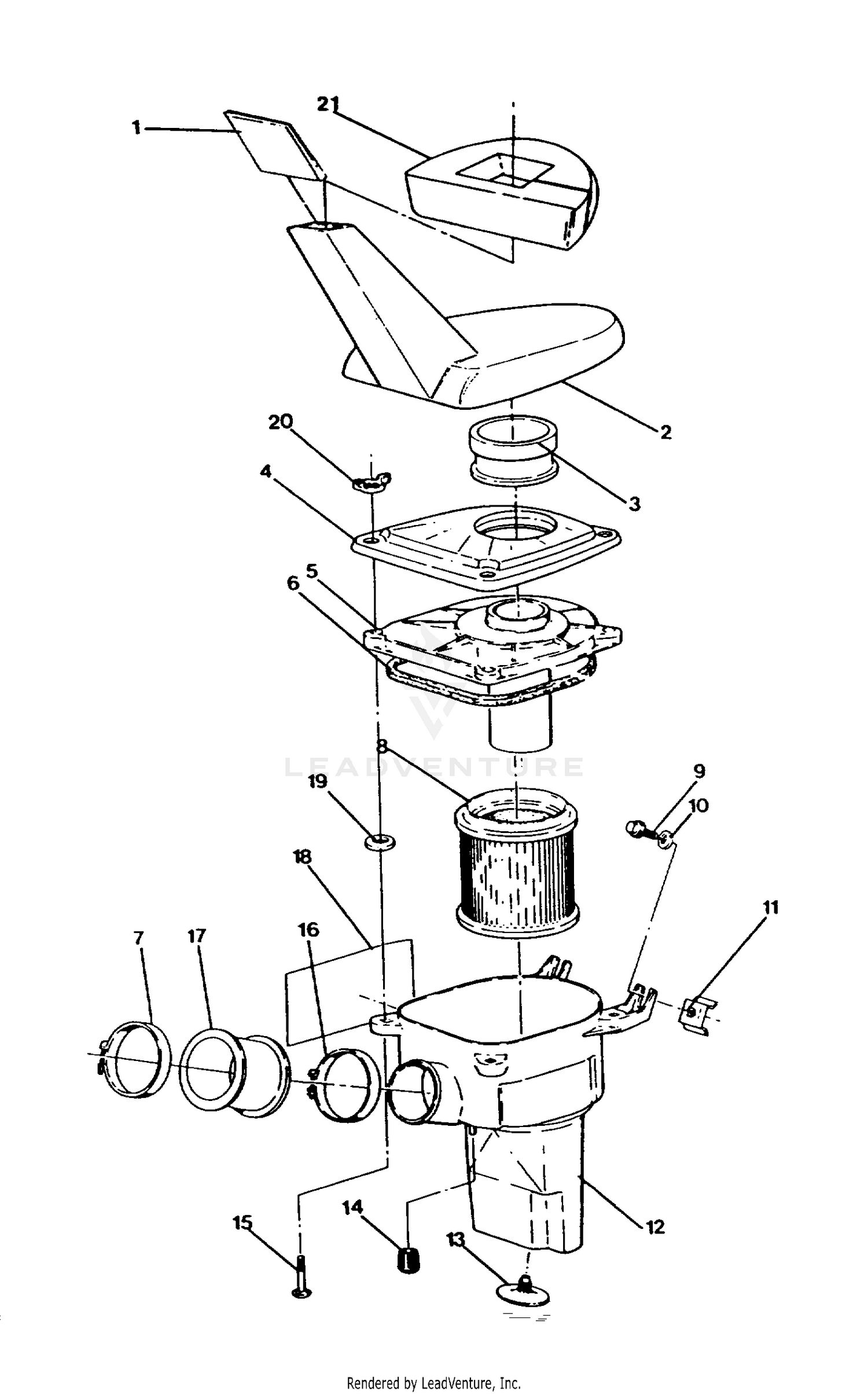

1992 Polaris TRAIL BLAZER AIR BOX ASSEMBLY Trail Blazer / W927221 (4922852285019A) OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOAM, AIR FILTER (10)
5810444
|
$14.99 | ||
|
Unavailable |
|||
|
#2
BOX, AIR SILENCER
5431485
|
|||
|
Unavailable |
|||
|
#3
BOOT, AIR SILENCER
5410506
|
|||
|
Unavailable |
|||
|
#4
RETAINER,COVER
5220980
|
|||
|
Unavailable |
|||
|
#5
NOT AVAILABLE
5430884
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#6
SEAL,COVER,AIR
5410510
|
|||
|
Unavailable |
|||
|
#7
CLAMP(10)
7080140
|
|||
|
Unavailable |
|||
|
#8
FILTER, AIR
7080369
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT(10)
7512246
|
|||
|
Unavailable |
|||
|
#10
WASHER,WROUGHT(10)
7558302
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPEED(10)
7670060
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX, AIR INTAKE
5431124
|
$107.99 | ||
|
Unavailable |
|||
|
#13
VALVE, UMBRELLA
5410549
|
|||
|
Unavailable |
|||
|
#14
BUSHING
5410529
|
|||
|
Unavailable |
|||
|
#15
BOLT-CARRIAGE(10)
7512275
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP,BAND,NARROW
7080413
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT,CARBURETOR
5410462
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
TAPE, FOIL
5810310
|
|||
|
Unavailable |
|||
|
#19
PALNUT(10)
7670080
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT,WING(10)
7542127
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, FOAM
5810441
|
|||
|
Unavailable |
|||
