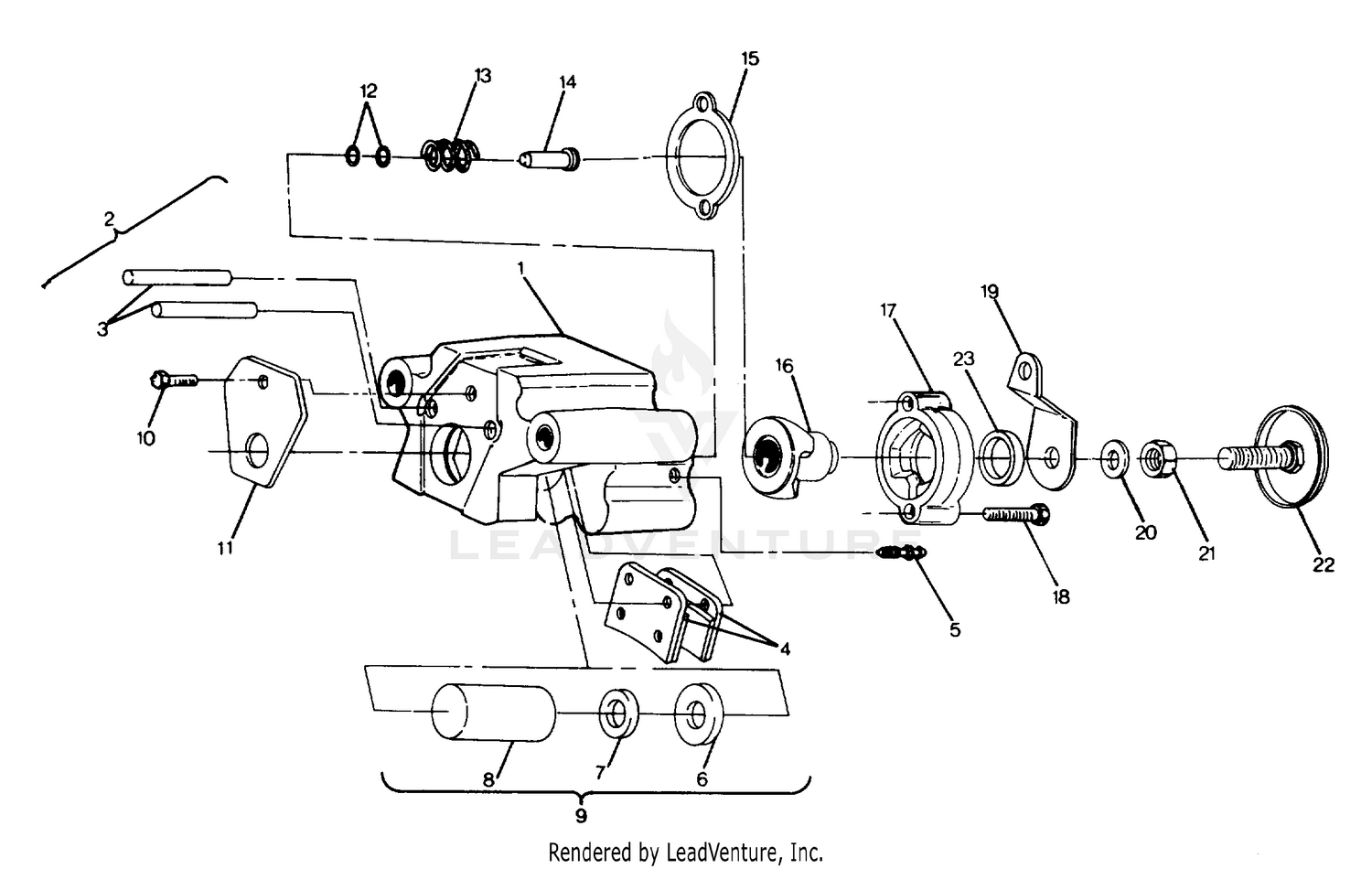

Rear Brake Assembly 250 4x4 - Update (4919791979032a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
CALIPER ASM,R.BRAKE Substituted by 1910073
1910046
|
|||
|
Unavailable |
|||
|
#
CALIPER, R.BRAKE
1910073
|
|||
|
Unavailable |
|||
|
#1
CALIPER,REAR BRAKE
5130714
|
|||
|
Unavailable |
|||
|
#2
KIT,BRAKEPAD,REAR
1930644
Superseded by 2200464
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL(10)
7661820
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KIT,BRAKEPAD,REAR
1910032
Superseded by 2200464
|
$39.99 | ||
|
Unavailable |
|||
|
#5
SCREW,BLEEDER
7080352
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Seal Ring, .120 Sq.
-------
|
|||
|
Unavailable |
|||
|
#7
Seal Ring, .066 Sq.
-------
|
|||
|
Unavailable |
|||
|
#8
Brake Piston, Rear
-------
|
|||
|
Unavailable |
|||
|
#9
KIT,BRAKE SEALS&PISTON
1930666
|
$114.99 | ||
|
Unavailable |
|||
|
#10
SCREW, SEMS(10)
7512020
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, PIN
5211143
|
|||
|
Unavailable |
|||
|
#12
O-Ring, .070
-------
|
|||
|
Unavailable |
|||
|
#13
SPRING,BRAKE,COMP.
7041219
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, BRAKE ADJUSTER
5020523
|
|||
|
Unavailable |
|||
|
#15
GASKET, BRAKE
5830009
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DESC NOT_AVAILABLE
5530366
|
|||
|
Unavailable |
|||
|
#17
RAMP,STATION.BRAKE Substituted by 2200391
5630346
|
|||
|
Unavailable |
|||
|
#18
BOLT, SOC. HD.(10)
7512292
|
|||
|
Unavailable |
|||
|
#19
ARM,BRAKE CALIPER Substituted by 2200391
5222454
|
|||
|
Unavailable |
|||
|
#19
ARM,BRAKE,CALIPER
5222664
|
|||
|
Unavailable |
|||
|
#20
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT(10)
7542129
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BRAKE ADJUSTER Substituted by 1930691
1910050
|
|||
|
Unavailable |
|||
|
#23
SEAL, BRAKE
3610026
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
