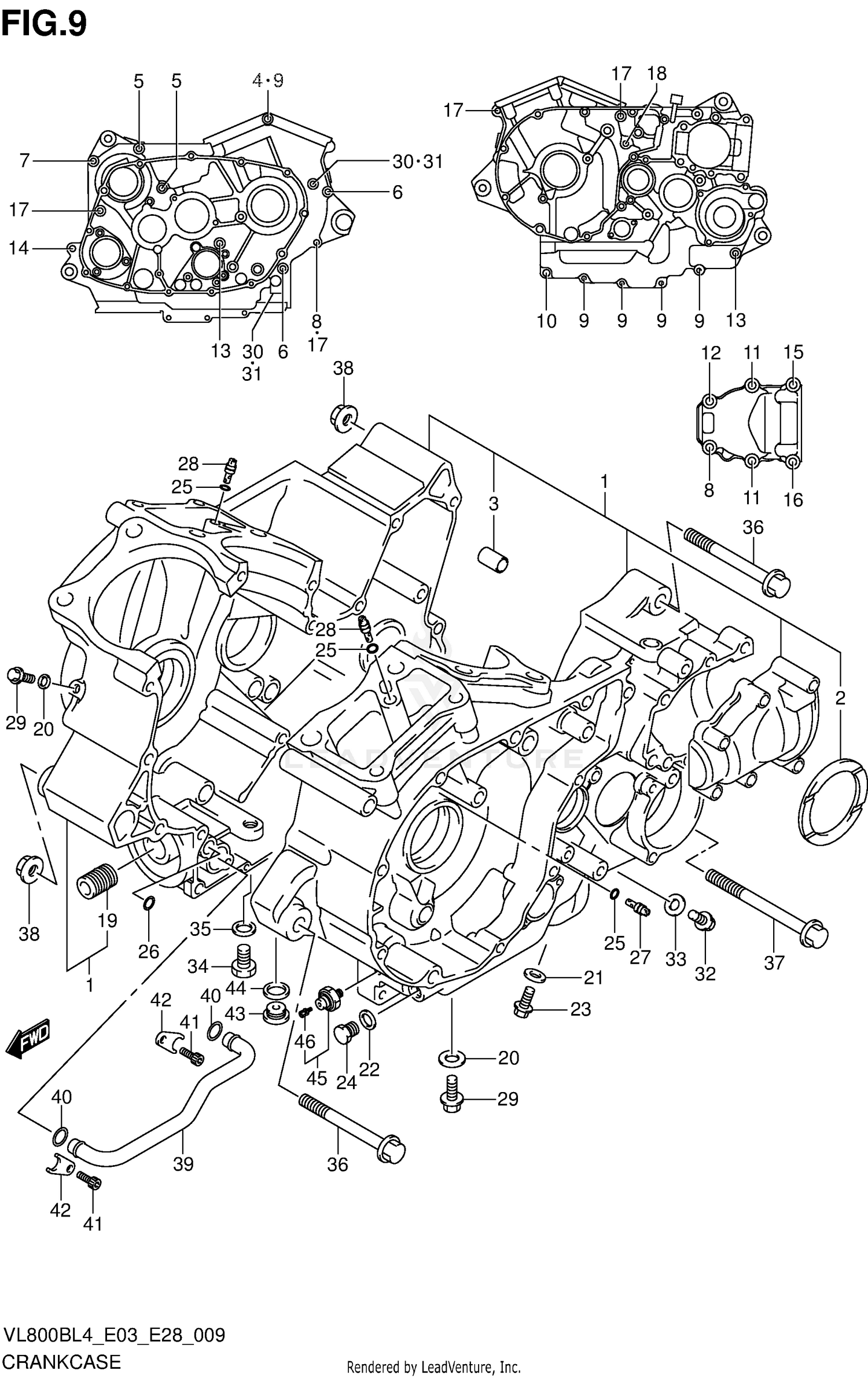

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11302-39840
|
$2,391.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (48.1X64X1.94)
09160-48001
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (48.1X64X1.96)
09160-48002
|
$19.70 | ||
|
Unavailable |
|||
|
#2
WASHER (48.1X64X1.99)
09160-48003
|
$26.92 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (48.1X64X2.01)
09160-48004
|
$20.10 | ||
|
Unavailable |
|||
|
#2
WASHER (48.1X64X2.04)
09160-48005
|
$19.70 | ||
|
Unavailable |
|||
|
#2
WASHER (48.1X64X2.06)
09160-48006
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (48.1X64X2.09)
09160-48007
|
$26.26 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (48.1X64X2.11)
09160-48008
|
$24.15 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (48.1X64X2.14)
09160-48009
|
$20.10 | ||
|
Unavailable |
|||
|
#2
WASHER (48.1X64X2.16)
09160-48010
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN (8.4X11X20)
09206-11007
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X160)
09103-08405
|
$6.54 | ||
|
Unavailable |
|||
|
#5
BOLT (8X120)
09103-08406
|
$2.48 | ||
|
Unavailable |
|||
|
#6
BOLT (8X105)
09103-08179
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X95)
09103-08164
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GASKET (8.2X14X1)
09168-08016
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0640A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
01550-0835A
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01550-0840A
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
.BOLT
01550-0850A
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01550-0855A
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-0860A
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-0855A
|
$3.27 | ||
|
Unavailable |
|||
|
#16
BOLT
01550-0865A
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (8X95)
09103-08105
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#18
.BOLT
01550-0875A
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
UNION,OIL STAND
16591-06B01
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET (5.8X13X1.2)
09168-06023
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET (10X14X3.6)
09168-10002
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET (13.8X18.8X4.8)
09168-14002
|
$2.42 | ||
|
Unavailable |
|||
|
#23
PLUG (10X12)
09247-10008
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG (14X12)
09247-14026
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
O-RING (D:1.2,ID:4)
09280-04004
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#26
O RING (D:1.9,ID:12.6)
09280-12009
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
JET
09493-20014
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET (14)
09493-28010
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
01550-0610A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01550-0812A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
.GASKET (8.2X14X1)
09168-08016
|
$1.75 | ||
|
Unavailable |
|||
|
#32
BOLT (8X12)
09103-08407
|
$1.94 | ||
|
Unavailable |
|||
|
#33
.GASKET (8.2X14X1)
09168-08016
|
$1.75 | ||
|
Unavailable |
|||
|
#34
PLUG (12X20)
09247-12011
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET (12.1X16.2X3.7)
09168-12002
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT (10X135)
09103-10706
|
$10.45 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT (10X160)
09103-10705
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
09159-10113
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIPE, OIL GALLERY
11451-38A00
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#40
O RING (D:3.1,ID:14.8)
09280-15008
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT (6X12)
09106-06075
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#42
CLAMP
11461-38A00
|
$1.50 | ||
|
Unavailable |
|||
|
#43
PLUG (16X12)
09248-16013
|
$5.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
GASKET (16X22X2)
09168-16002
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#45
SWITCH ASSY, OIL PRESSURE
37820-33D10
|
$38.92 | ||
|
Available to order. Add to View Price |
|||
|
#46
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
