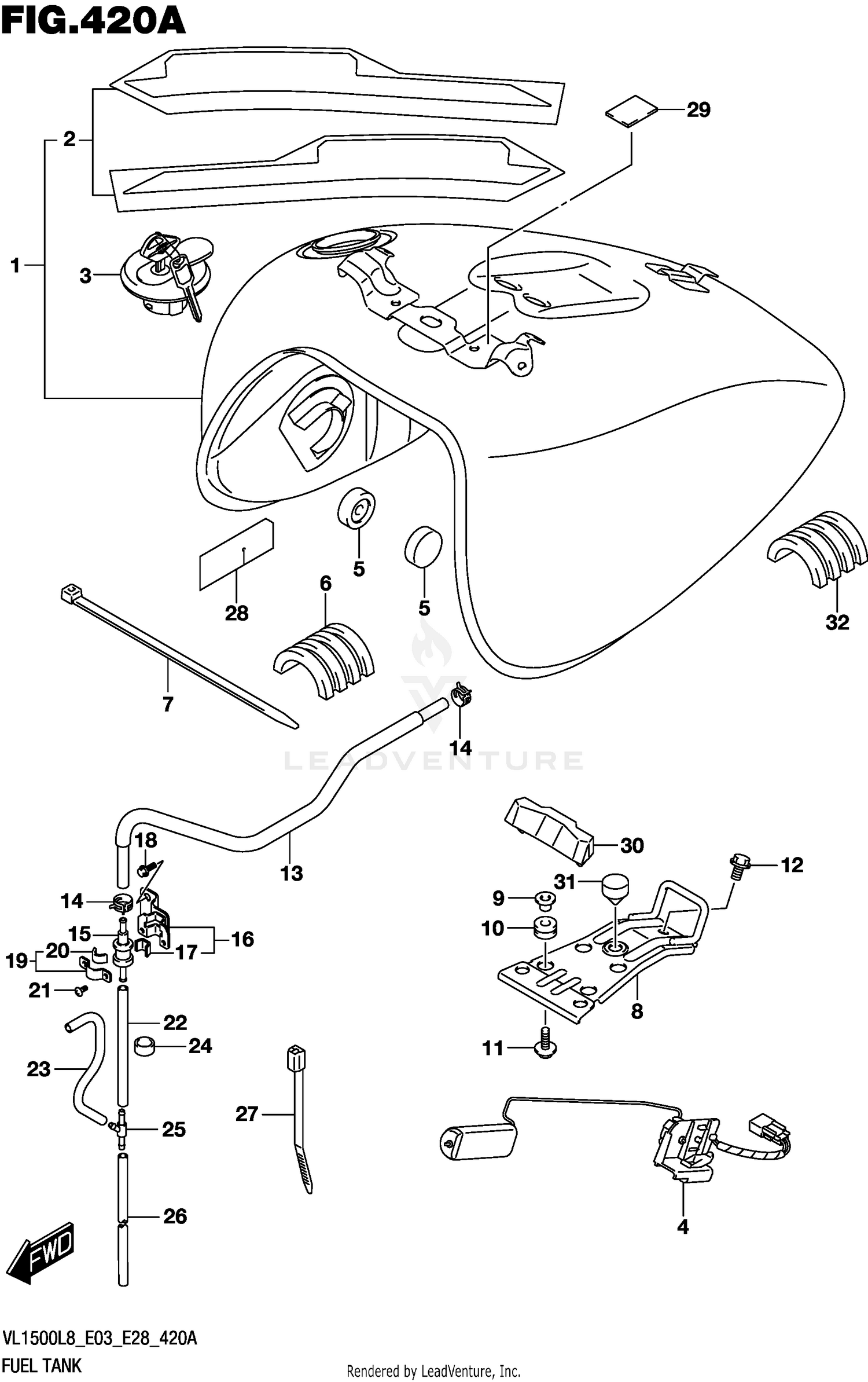

Fuel Tank (vl1500bl8 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK ASSY,FUEL
44100-06J60-YUD
Superseded by 44100-06J80-YUD
|
$977.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
.TAPE SET FUEL TANK (BLACK)
68110-06J20-019
|
$49.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET,FUEL TA
44200-41840
Superseded by 44200-41842
|
$105.27 | ||
|
Unavailable |
|||
|
#4
GUAGE ASSY
34810-40H00
|
$129.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09329-10007
Superseded by 09329-10026
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
44541-04F00
|
$11.87 | ||
|
Unavailable |
|||
|
#7
CLAMP (L:300)
09407-30402
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET
44530-06J00
|
$35.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (6.3X17X1.6)
09169-06062
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION (8X18X10)
09320-08001
Superseded by 09320-08527
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (6X20)
09116-06192
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-0812A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE
44434-40H00
|
$43.99 | ||
|
Unavailable |
|||
|
#14
CLIP (ID:11,H:8)
09401-11413
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE,FUEL TANK BREATHER
44240-38A00
|
$57.70 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRACKET
44880-40H00
|
$22.27 | ||
|
Unavailable |
|||
|
#17
CUSHION (10X30X2)
44894-24A00
|
$1.82 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01547-0610A
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE,FUEL TANK BREATHER,NO.2
44892-24A00
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION (10X30X2)
44894-24A00
|
$1.82 | ||
|
Unavailable |
|||
|
#21
SCREW
02142-0408A
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
.HOSE
09352-50903-600
Superseded by 09352-50006-600
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#23
.HOSE,FUEL TANK BRTHR NO.3
44424-15H10
Superseded by 44424-15H11
|
$12.95 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE (13.5X16.5X10)
09352-13162-010
|
$1.97 | ||
|
Unavailable |
|||
|
#25
3 WAY
09367-06007
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP (L:190)
09407-19401
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
PROTECTOR, FUEL TANK
44283-06J00
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#29
CUSHION, RESERVOIR TANK
63191-25C00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#30
CUSHION
44545-06J00
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
|
#31
.CUSHION
09321-10011
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#32
CUSHION
44541-06J00
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
