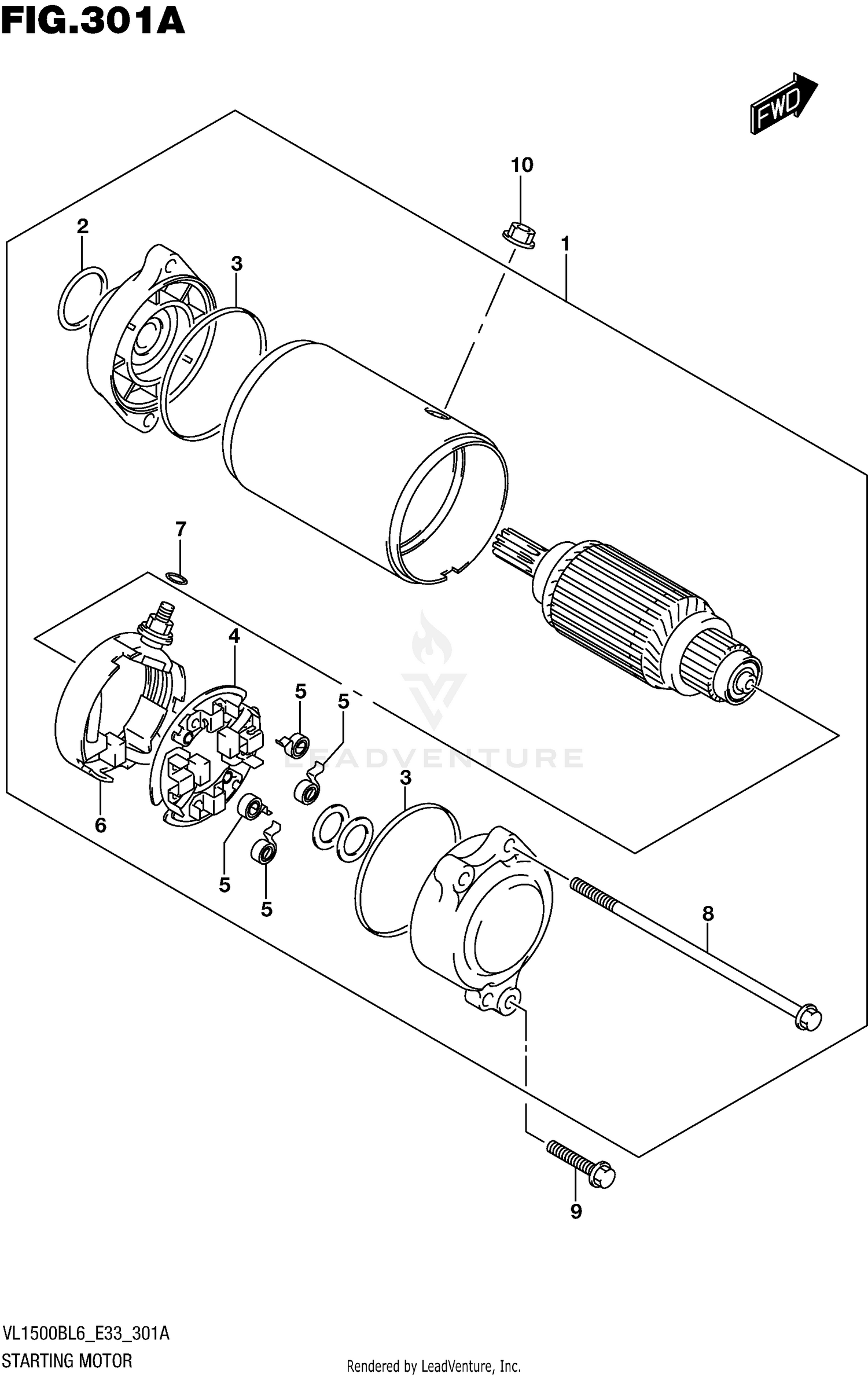

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-40H01
|
$700.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
.O-RING (D:3.1,ID:24.4)
31156-98E00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
O RING
31264-31300
Superseded by 31264-32E00
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
.HOLDER SET, BRUSH
31132-38B00
|
$65.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SPRING, BRUSH
31135-38B00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
.TERMINAL SET, BRUSH
31130-38B00
|
$65.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
.O-RING
31143-49040
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
31281-24B10
Superseded by 31281-31D00
|
$8.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01547-0625A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
08361-3506A
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
