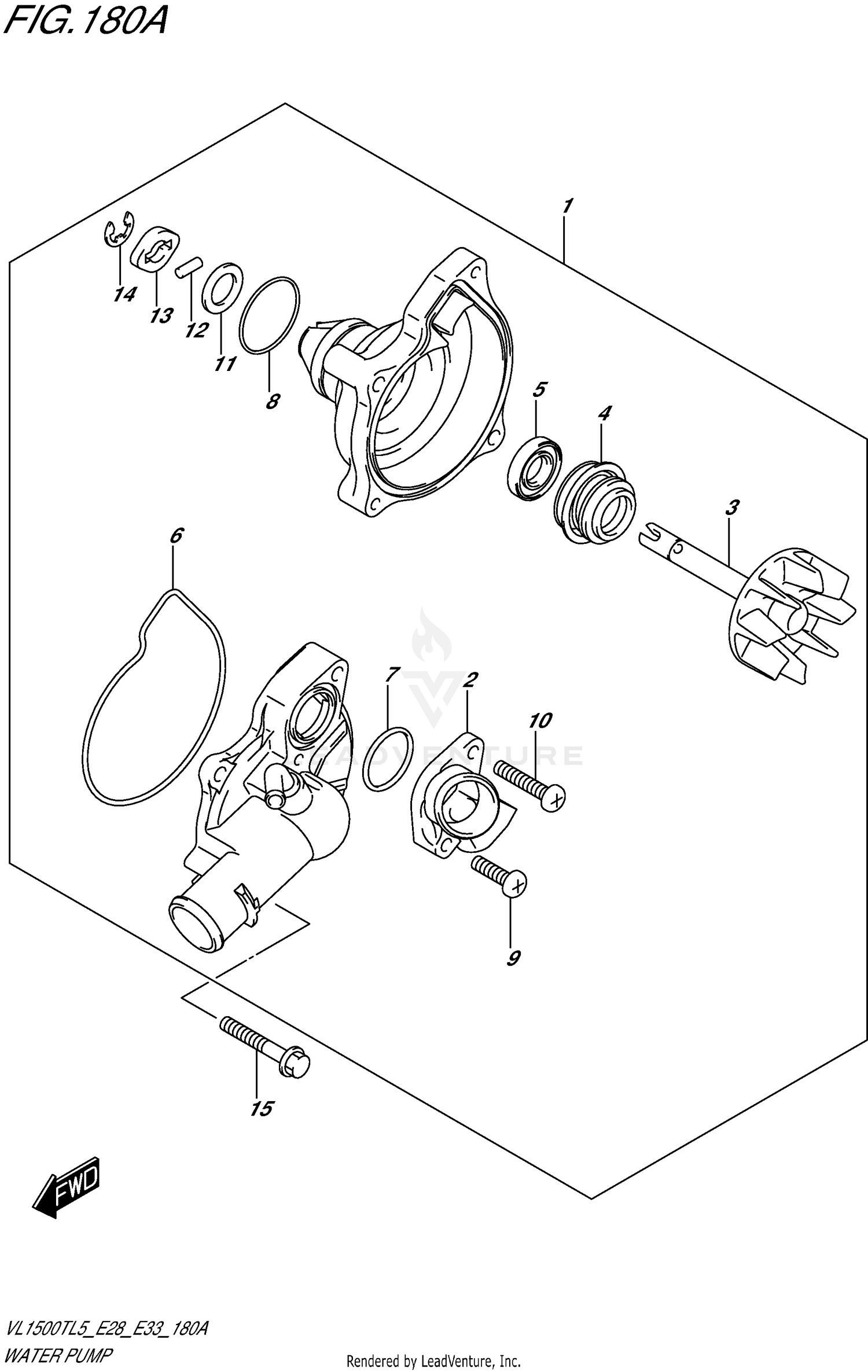

2015 Suzuki BOULEVARD C90T WATER PUMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PUMP ASSY,WATER
17400-40H00
Superseded by 17400-40H01
|
$280.67 | ||
|
Available to order. Add to View Price |
|||
|
#2
CONNECTOR
17412-40H00
|
$33.82 | ||
|
Unavailable |
|||
|
#3
IMPELLER
17491-40H00
|
$43.62 | ||
|
Unavailable |
|||
|
#4
.SEAL, WATER PUMP SHAFT MECH
17470-02F10
Superseded by 17470-02F11
|
$32.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
17461-48G00
|
$14.68 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING
17418-40H00
Superseded by 17418-40H01
|
$8.17 | ||
|
Unavailable |
|||
|
#7
.O RING
17417-38A00
Superseded by 17417-38A01
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING
17435-33400
|
$16.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
02112-0620A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-0635A
|
|||
|
Unavailable |
|||
|
#11
WASHER
17432-07G00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
17482-03G00
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP
17432-11H00
|
|||
|
Unavailable |
|||
|
#14
.E RING
08332-1108A
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#15
.BOLT
01547-0645A
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
