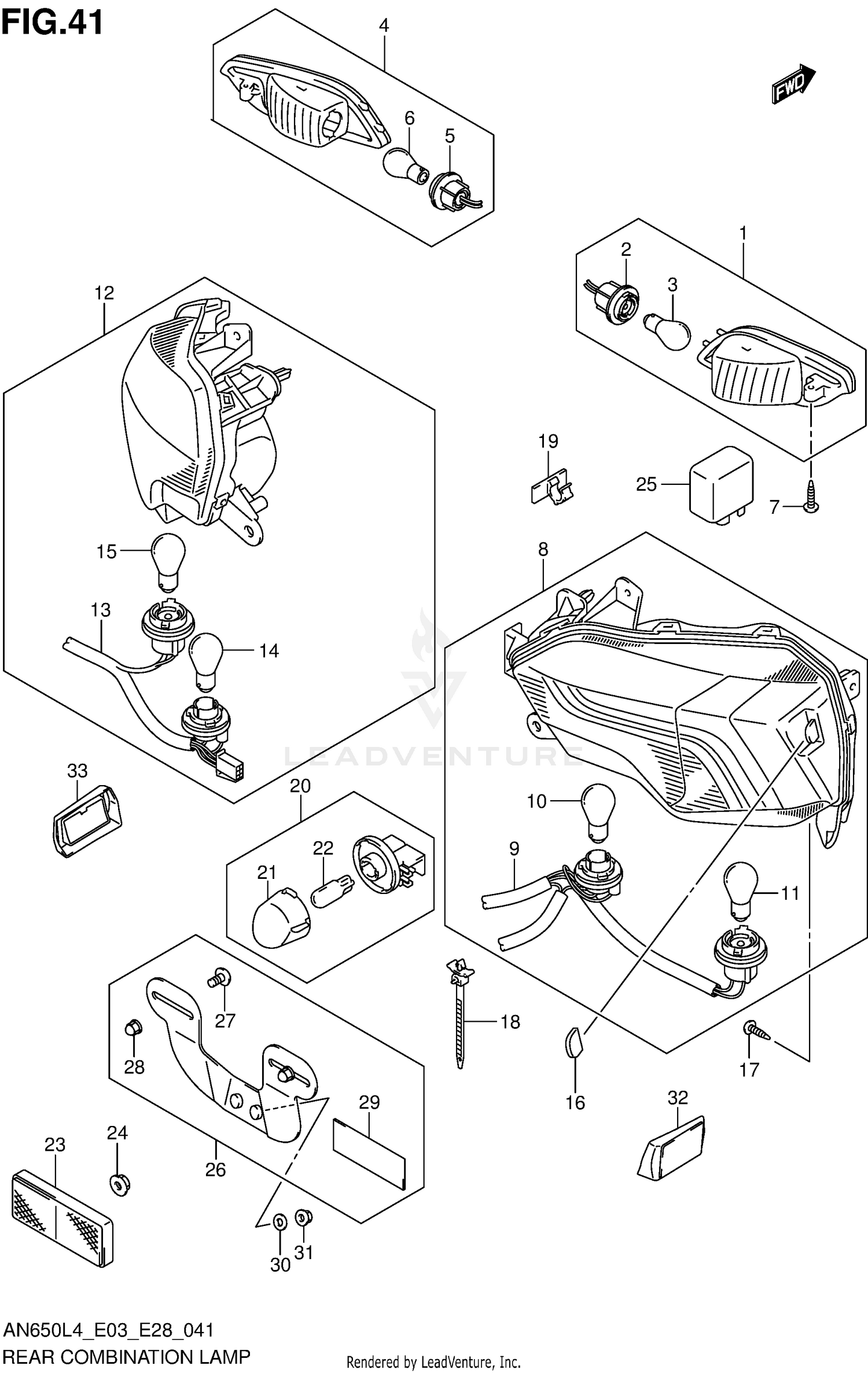

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL RH
35601-26J00
|
$70.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
SOCKET, RH
35618-26J00
|
$31.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V,21W)
09471-12186
|
$14.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
LAMP ASSY, FRONT TURNSIGNAL LH
35602-26J00
|
$68.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
SOCKET, LH
35638-26J00
|
$41.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V,21W)
09471-12186
|
$14.05 | ||
|
Unavailable |
|||
|
#7
.SCREW
03541-0520A
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP ASSY, REAR COMBINATION RH
35603-26J01
|
$163.22 | ||
|
Available to order. Add to View Price |
|||
|
#9
SOCKET & CORD, RH
35658-26J01
|
$54.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
BULB (12V,21/5W)
09471-12046
Superseded by 09471-12128
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB (12V,21W)
09471-12186
|
$14.05 | ||
|
Unavailable |
|||
|
#12
LAMP ASSY, REAR COMBINATION LH
35604-26J01
|
$167.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
SOCKET & CORD, LH
35678-26J01
|
$69.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
BULB (12V,21/5W)
09471-12046
Superseded by 09471-12128
|
$7.20 | ||
|
Unavailable |
|||
|
#15
BULB (12V,21W)
09471-12186
|
$14.05 | ||
|
Unavailable |
|||
|
#16
CUSHION
09329-18001
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
03541-0516A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP (L:90)
09407-11402
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
09403-10318
|
$2.90 | ||
|
Unavailable |
|||
|
#20
LAMP ASSY, LICENSE
35910-14F01
|
$27.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
LENS
35912-14F11
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#22
BULB (12V5W)
09471-12216
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
REFLECTOR ASSY,RR
35970-07F01
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
08316-1005A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#25
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$96.65 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET, LICENSE PLATE
35927-10G00
|
$26.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
02142-0612B
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
08313-2006B
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
CUSHION, LICENSE PLATE BRKT
33652-29F00
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER (6.5X24X1.2)
09160-06114
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT (6X12)
08316-1006A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#32
REFLECTOR ASSY, REAR SIDE RH
35973-26J00
|
$45.68 | ||
|
Available to order. Add to View Price |
|||
|
#33
REFLECTOR ASSY, REAR SIDE LH
35974-26J00
|
$45.68 | ||
|
Available to order. Add to View Price |
|||
