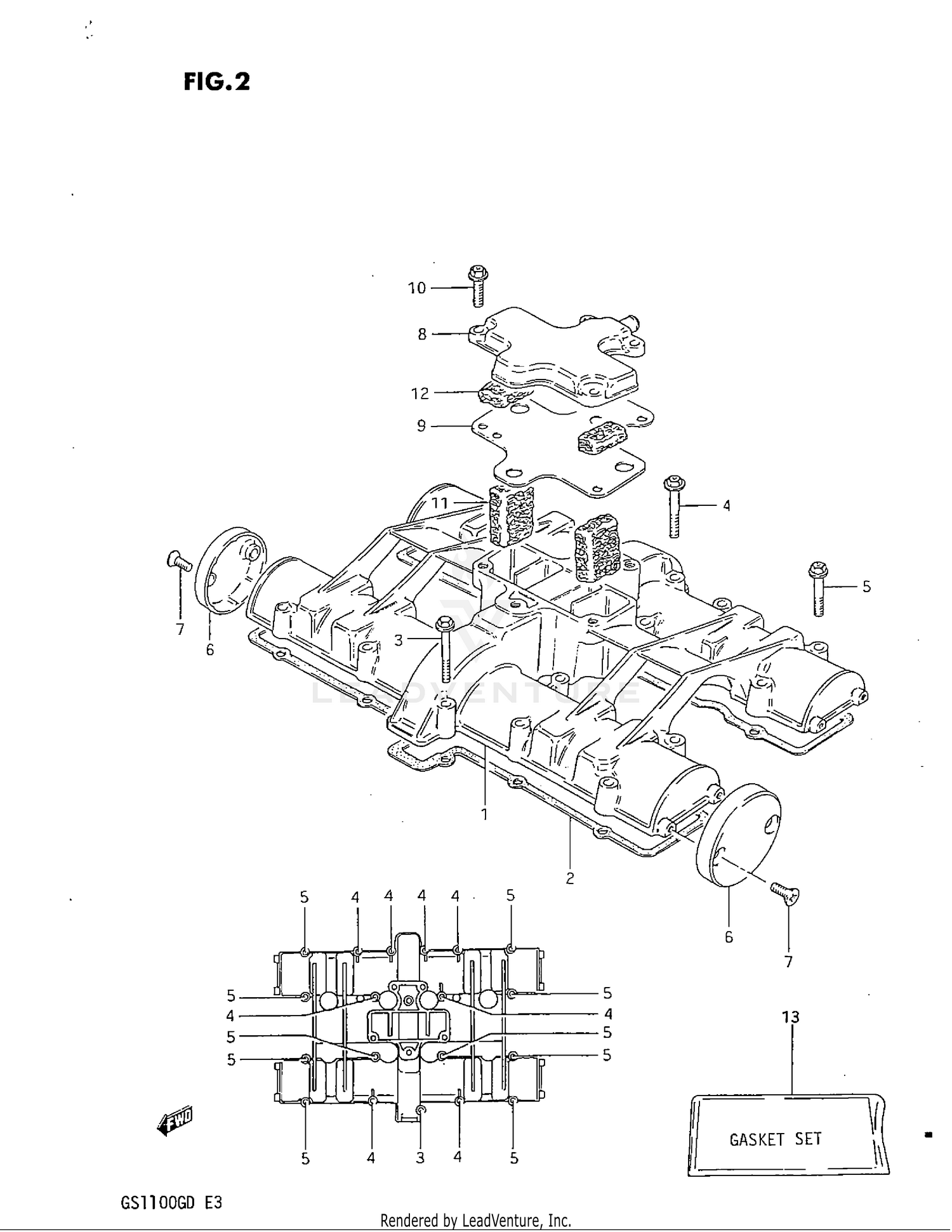

Cylinder Head Cover (model D) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CYLINDER HEAD
11171-49030
|
$135.68 | ||
|
Unavailable |
|||
|
#2
GASKET,HEAD COV
11173-49021
Superseded by 11173-49022
|
$44.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01517-06455
Superseded by 01550-0645A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01517-06405
Superseded by 01550-0640A
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01517-06355
Superseded by 01550-0635A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, CYLINDER HEAD COVER
11174-49000
|
$30.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
09127-05013
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, BREATHER
11176-47042
|
$26.64 | ||
|
Unavailable |
|||
|
#9
BREATHER CVR GA
11177-47001
Superseded by 11177-47001-H17
|
$14.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X20)
01517-06205
Superseded by 01550-0620A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEPARATOR,OIL B
11186-45000
Superseded by 11186-45001
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEPARATOR,OIL B
11187-45000
Superseded by 11187-45001
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET SET
11401-49872
Superseded by 11402-49870
|
$323.16 | ||
|
Available to order. Add to View Price |
|||
