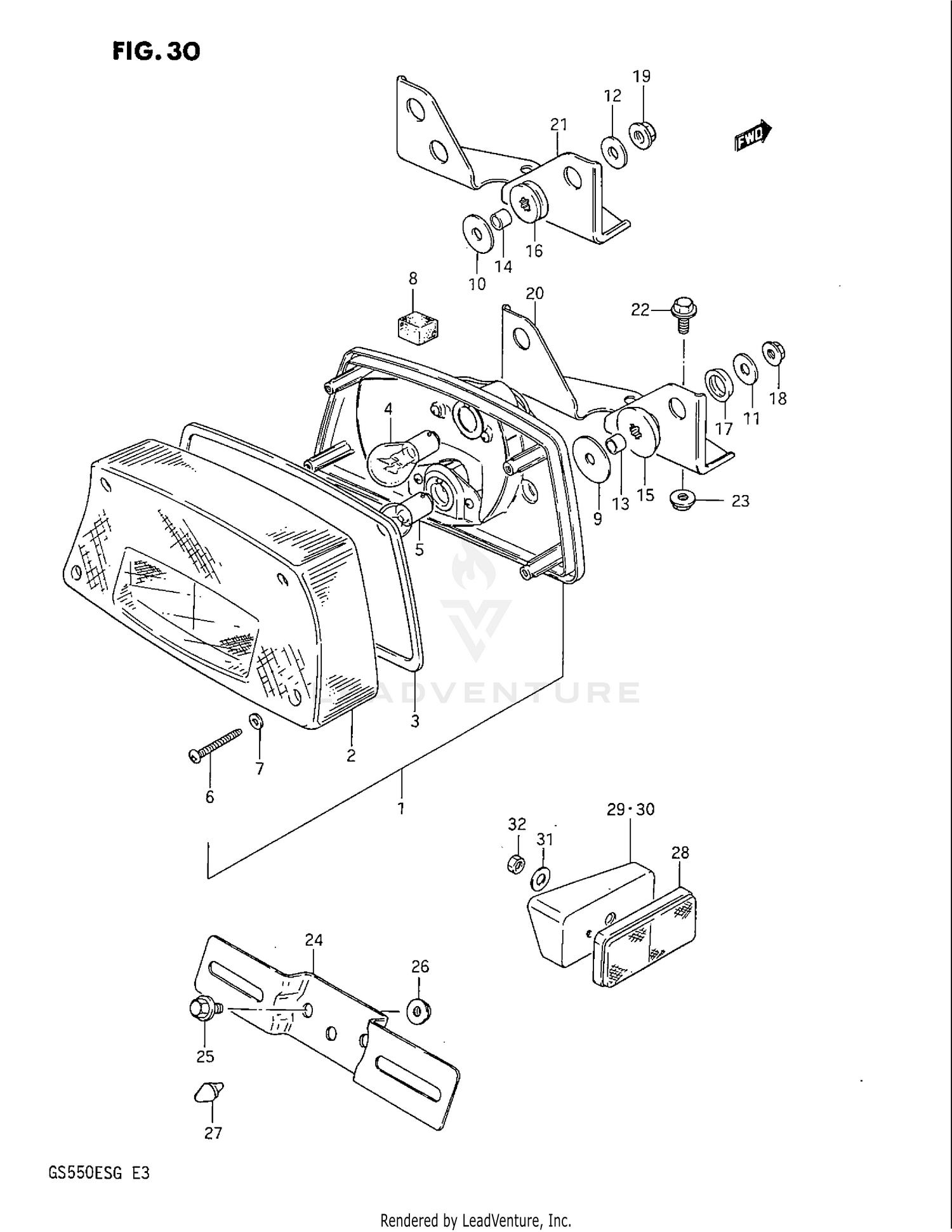

Rear Combination Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-43430
Superseded by 35710-43431
|
$99.71 | ||
|
Unavailable |
|||
|
#1
LAMP ASSY, REAR COMBINATION
35710-43431
|
$99.71 | ||
|
Unavailable |
|||
|
#2
LENS
35712-43430
|
$38.18 | ||
|
Unavailable |
|||
|
#3
GASKET
35713-43410
|
$3.56 | ||
|
Unavailable |
|||
|
#4
BULB (12V,32/3CP)
09471-12084
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB (12V, BW)
09471-12037
Superseded by 09471-12141
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
03211-04256
Superseded by 03211-0425B
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#7
GASKET
35627-43010
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
RUBBER
35733-06400
Superseded by 45562-44410
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (6.5X30X1.2)
09160-06071
|
$1.21 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (6.5X20X1.6)
09160-06020
Superseded by 09160-06066
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER
09160-06012
Superseded by 09160-06054
|
$1.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09160-06012
Superseded by 09160-06054
|
$1.72 | ||
|
Unavailable |
|||
|
#13
SPACER,7.2X10X1
09180-06006
Superseded by 09180-07019
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER (6.6X9X9.5)
35766-26470
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-09012
|
$5.16 | ||
|
Unavailable |
|||
|
#16
CUSHION
35765-35300
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
CUSHION
09320-14010
|
$2.19 | ||
|
Unavailable |
|||
|
#18
NUT
08316-26066
Superseded by 08316-1006B
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT
08316-26066
Superseded by 08316-1006B
|
$2.65 | ||
|
Unavailable |
|||
|
#20
BRACKET, TAIL LAMP
35726-43400
Superseded by 35726-43401
|
$6.58 | ||
|
Unavailable |
|||
|
#21
BRACKET, TAIL LAMP
35726-43401
|
$6.58 | ||
|
Unavailable |
|||
|
#22
BOLT
01517-06166
|
$0.48 | ||
|
Unavailable |
|||
|
#23
NUT
08316-26066
Superseded by 08316-1006B
|
$2.65 | ||
|
Unavailable |
|||
|
#24
BRACKET, LICENSE PLATE
35927-43430
Superseded by 35927-27A30
|
$7.26 | ||
|
Unavailable |
|||
|
#25
BOLT, CLAMP
01517-06125
Superseded by 01550-0612A
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08316-26066
Superseded by 08316-1006B
|
$2.65 | ||
|
Unavailable |
|||
|
#27
CUSHION, LICENCE PLATE
09321-06023
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
NO DESCRIPTION AVAILABLE
35970-43430
Superseded by 35970-02130
|
$18.29 | ||
|
Unavailable |
|||
|
#29
SPACER, RH
35977-43430
|
$3.82 | ||
|
Unavailable |
|||
|
#30
SPACER, LH
35978-43430
|
$3.86 | ||
|
Unavailable |
|||
|
#31
WASHER
09160-05013
|
$1.32 | ||
|
Available to order. Add to View Price |
|||
|
#32
.NUT
08310-11056
Superseded by 08310-0005A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
