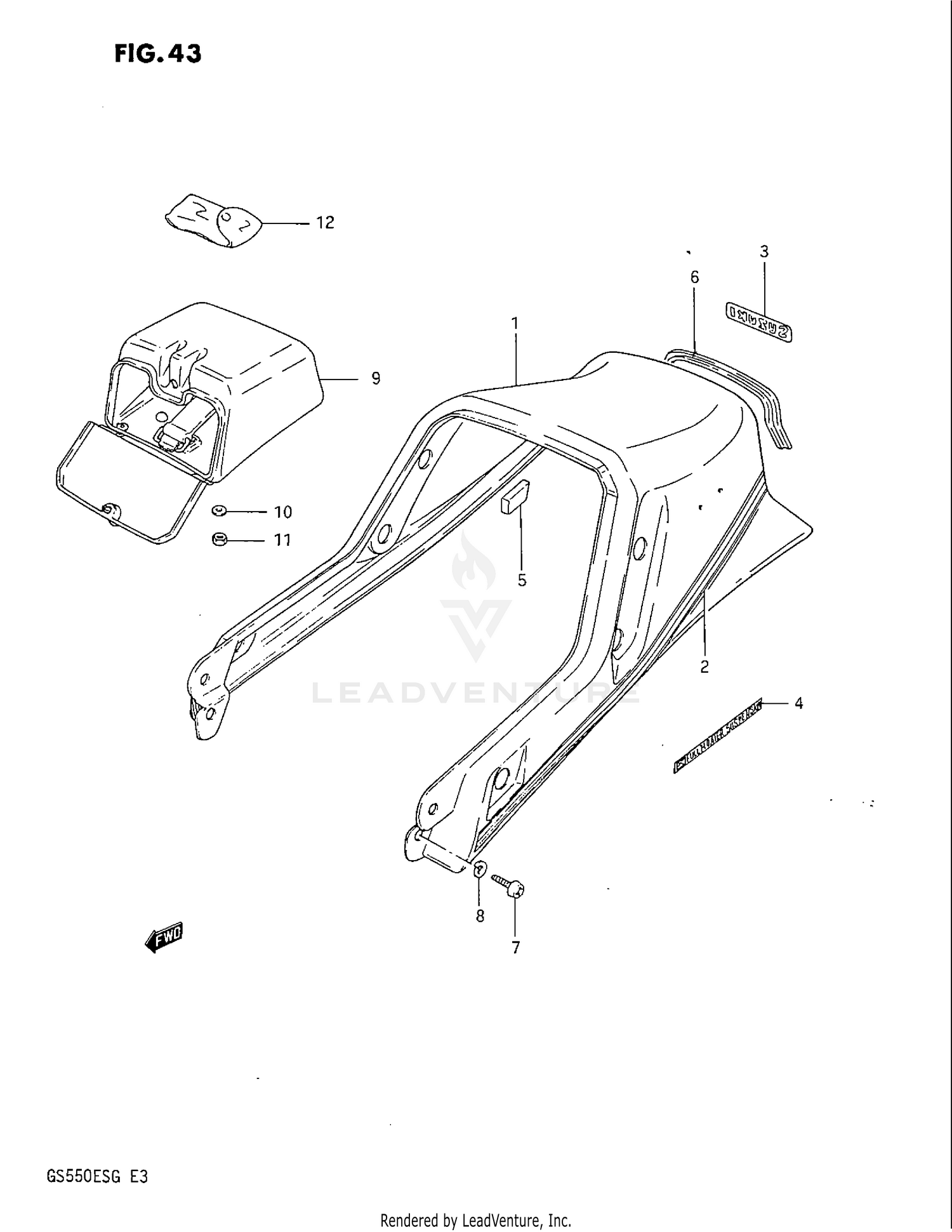

1986 Suzuki GS550ESG SEAT TAIL COVER (GS550ES3/ESE) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SEAT TAIL
45510-43470-91J
|
$158.00 | ||
|
Unavailable |
|||
|
#2
TAPE SET, SEAT TAIL COVER
68160-43410-7FG
|
$16.15 | ||
|
Unavailable |
|||
|
#3
NO DESCRIPTION AVAILABLE
68166-31300-019
Superseded by 68166-31300-33J
|
$3.14 | ||
|
Unavailable |
|||
|
#4
EMBLE, FULL FLOATER
68235-31300-87W
|
$4.03 | ||
|
Unavailable |
|||
|
#5
CUSHION
45149-43400
|
$2.54 | ||
|
Unavailable |
|||
|
#6
BRIND, SEAT TAIL COVER
45562-43401
|
$4.45 | ||
|
Unavailable |
|||
|
#7
SCREW
02112-06168
Superseded by 02112-06167
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOX, SEAT TAIL
94990-43400
|
$41.77 | ||
|
Unavailable |
|||
|
#10
WASHER
09169-06010
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
08319-31068
Superseded by 08319-31067
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
TOOL ASSY
09800-00270
Superseded by 09800-21068
|
$52.23 | ||
|
Available to order. Add to View Price |
|||
