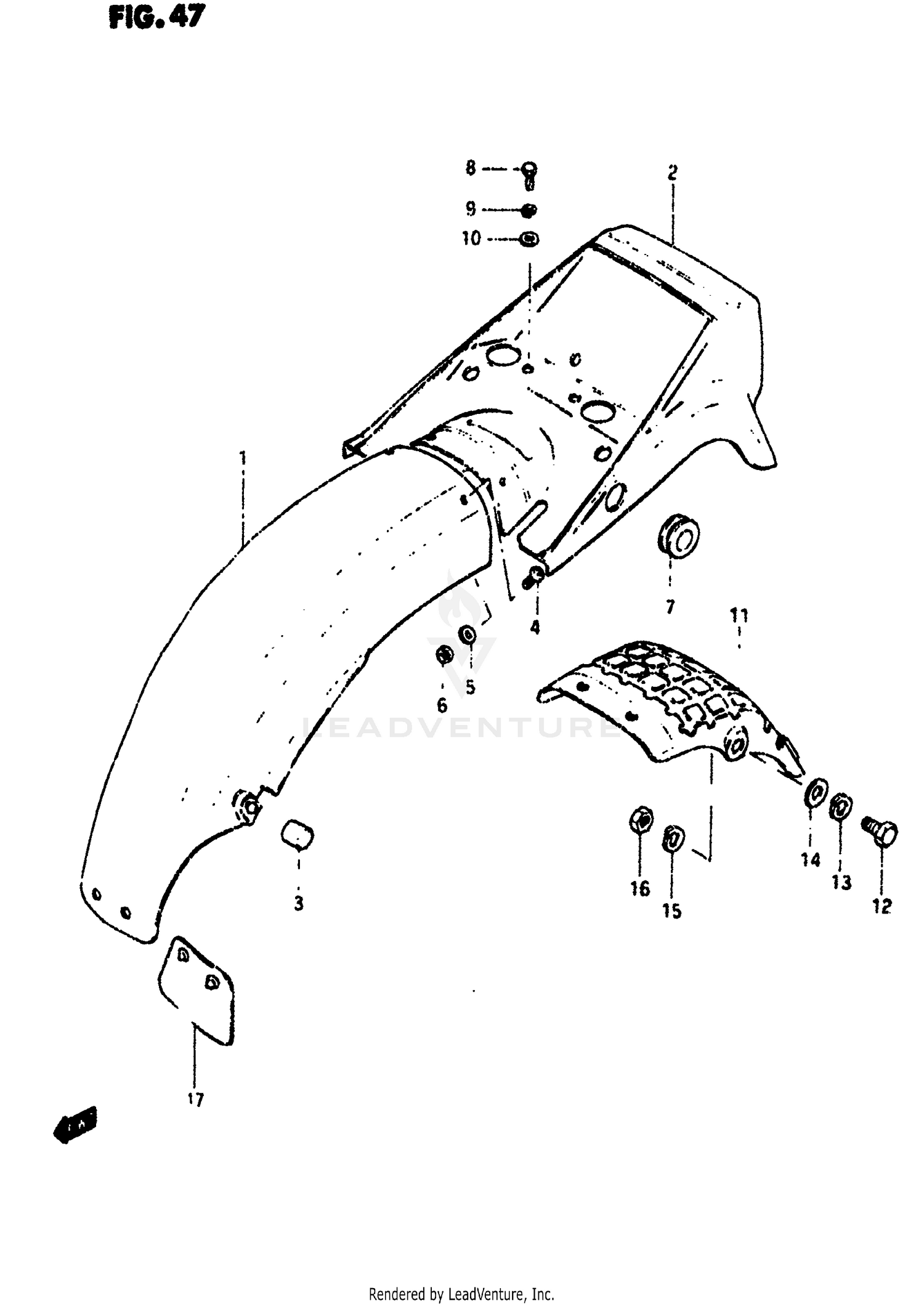

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY, REAR FENDER FRONT
63112-47700
|
$32.50 | ||
|
Unavailable |
|||
|
#2
BODY, REAR FENDER REAR
63113-34320
|
$60.98 | ||
|
Unavailable |
|||
|
#3
CUSHION
09329-05003
Superseded by 09329-05009
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02142-05128
Superseded by 02142-05127
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (5.5X16X1.2)
09160-05017
Superseded by 09160-05043
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
.NUT
08310-11058
Superseded by 08310-00057
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
GROMMET
45522-49200
|
$5.08 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01107-06208
Superseded by 01500-06207
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
LOCK WASHER
08321-21068
Superseded by 08321-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
09160-06007
Superseded by 09160-06084
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
REINFORCEMENT
63120-34301
|
$41.17 | ||
|
Unavailable |
|||
|
#12
BOLT
01107-08258
Superseded by 01500-08257
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-21088
Superseded by 08322-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Unavailable |
|||
|
#16
NUT
08310-12088
Superseded by 08310-00087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
MUD GUARD
63411-31900
|
$11.23 | ||
|
Available to order. Add to View Price |
|||
