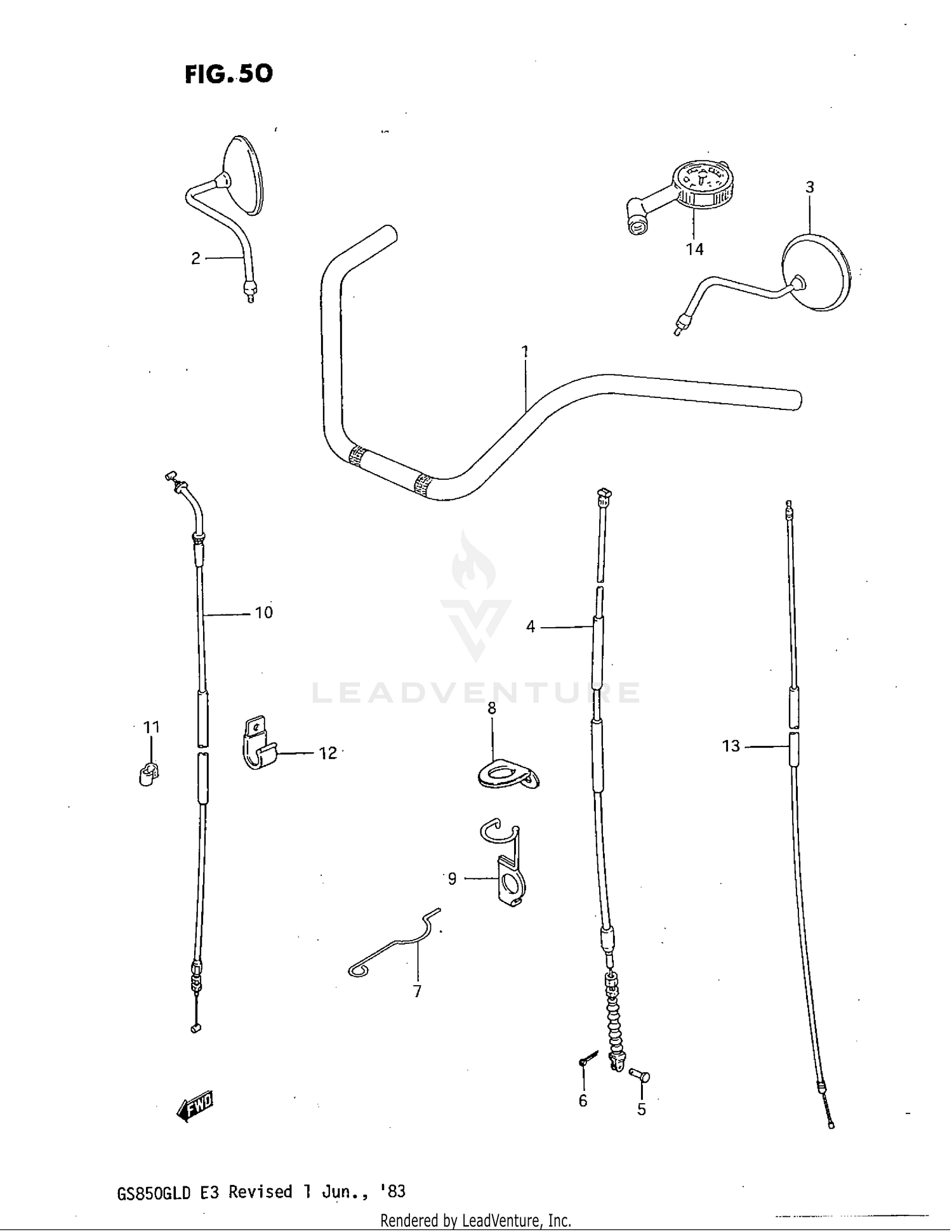

Handlebar (model Z) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
56110-45160
Superseded by 56110-49120
|
$71.32 | ||
|
Unavailable |
|||
|
#2
MIRROR ASSY,RR
56500-44200
Superseded by 56500-44202
|
$64.12 | ||
|
Unavailable |
|||
|
#3
MIRROR ASSY,LH
56600-44200
Superseded by 56600-44202
|
$90.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, CLUTCH
58200-45140
|
$30.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
09200-06011
|
$1.54 | ||
|
Available to order. Add to View Price |
|||
|
#6
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
GUIDE
58621-45100
|
$2.54 | ||
|
Unavailable |
|||
|
#8
GUIDE, CABLE
59243-45010
|
$6.43 | ||
|
Unavailable |
|||
|
#9
GUIDE, CABLE
58621-34400
|
$4.75 | ||
|
Unavailable |
|||
|
#10
CABLE, THROTTLE
58300-45120
Superseded by 58300-45221
|
$23.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
09408-00002
|
$2.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
09403-00069
Superseded by 09404-06037
|
$1.41 | ||
|
Available to order. Add to View Price |
|||
|
#13
CABLE, STARTER
58410-45300
Superseded by 58410-49X00
|
$13.61 | ||
|
Available to order. Add to View Price |
|||
|
#14
GAUGE, FRONT FORK AIR
96200-41330
|
$12.50 | ||
|
Unavailable |
|||
