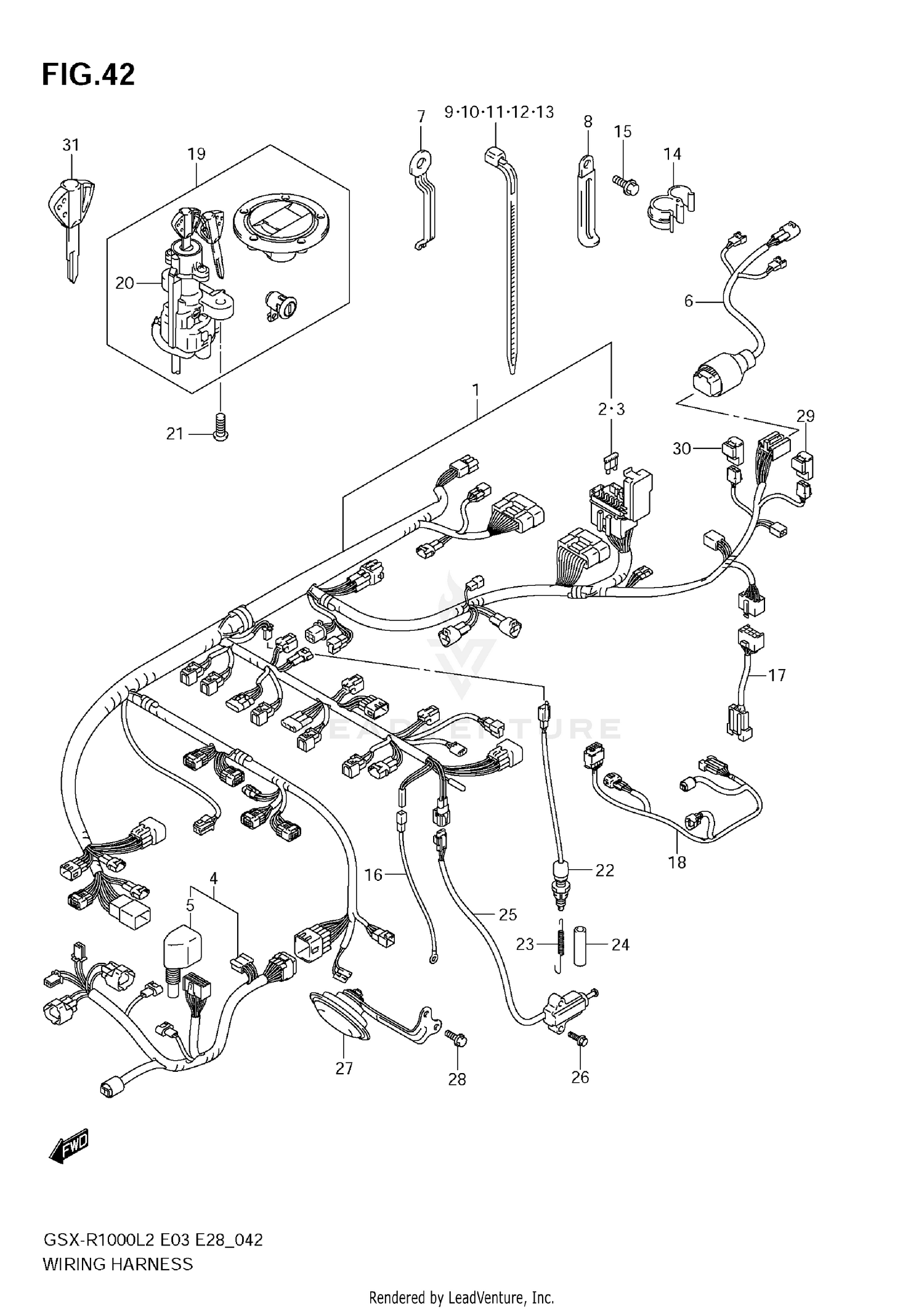

Wiring Harness (gsx-r1000 L2 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING NO.1
36610-47H70
|
$1,070.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (15A)
09481-15501
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
HARNESS,WIRING
36620-47H10
Superseded by 36620-47H21
|
$220.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CONNECTOR
36618-47H00
|
$20.98 | ||
|
Available to order. Add to View Price |
|||
|
#6
WIRE,RR COMB
36855-47H00
Superseded by 36855-47H01
|
$40.13 | ||
|
Unavailable |
|||
|
#7
CLAMP
09403-06322
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:45)
09404-06429
|
$1.93 | ||
|
Unavailable |
|||
|
#9
CLAMP (L:125)
09407-14403
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP (L:95)
09407-11401
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP (L:165)
09407-18402
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:190)
09407-19401
|
$2.78 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:190)
09407-19401
|
$2.78 | ||
|
Unavailable |
|||
|
#14
CLAMP
09408-00242
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01547-0612A
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#16
WIRE, OIL PRESSURE SWITCH
36851-47H00
Superseded by 36851-47H01
|
$14.40 | ||
|
Available to order. Add to View Price |
|||
|
#17
WIRE, RELAY LEAD
36857-47H00
|
$73.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE, ISC LEAD
36859-47H10
|
$140.63 | ||
|
Available to order. Add to View Price |
|||
|
#19
LOCK SET
37101-40821
Superseded by 37101-40823
|
$474.78 | ||
|
Unavailable |
|||
|
#20
.LOCK ASSY,STEERING
37100-41G11
Superseded by 37100-41G12
|
$253.12 | ||
|
Unavailable |
|||
|
#21
BOLT (8X20)
09139-08016
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
SWITCH ASSY,STOP LAMP
37740-31D00
|
$31.33 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
09443-06087
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE,5X10X600
09352-50823-600
Superseded by 44421-13ER0
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
SWITCH ASSY,SID
37840-20E00
Superseded by 37840-20E01
|
$80.33 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (6X20)
09103-06286
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#27
HORN ASSY
38500-47H00
|
$80.72 | ||
|
Available to order. Add to View Price |
|||
|
#28
.BOLT
01550-0616B
|
$2.52 | ||
|
Available to order. Add to View Price |
|||
|
#29
RELAY ASSY, FUEL PUMP
38740-24X50
|
$50.17 | ||
|
Available to order. Add to View Price |
|||
|
#30
RELAY ASSY, FAN MOTOR
38740-24X50
|
$50.17 | ||
|
Unavailable |
|||
|
#31
KEY,BLANK (IMMOBI)
37146-41G00
|
$47.77 | ||
|
Available to order. Add to View Price |
|||
