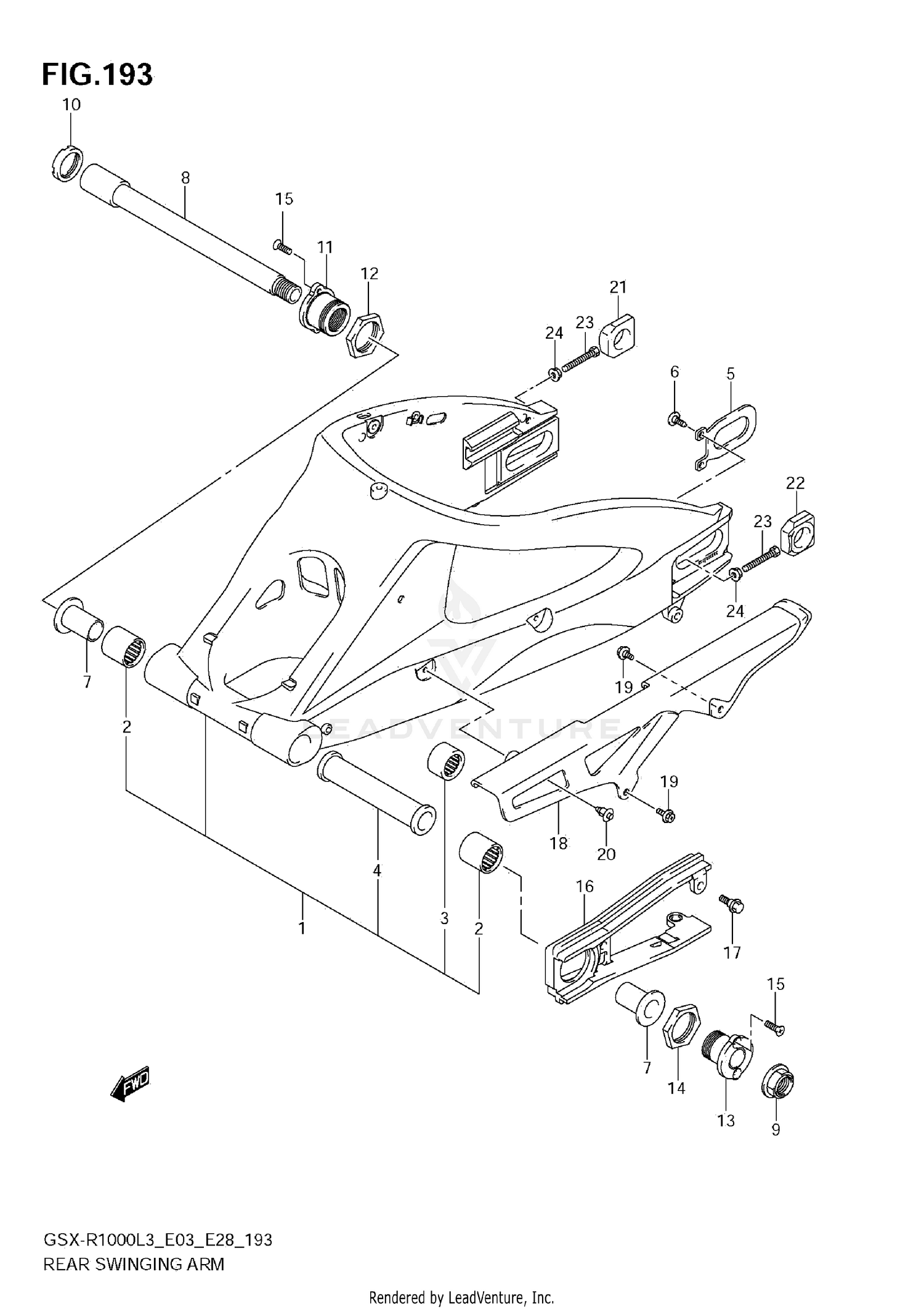

Rear Swinging Arm (gsx-r1000l3 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR (BLUE)
61000-47H10-YUA
|
$3,135.32 | ||
|
Available to order. Add to View Price |
|||
|
#1
SWINGINGARM ASS
61000-47H10-YAP
Superseded by 61000-47H11-YAP
|
$2,150.03 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (27X35X35)
09263-27013
Superseded by 09263-27015
|
$29.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (20X27X30)
09263-20070
|
$34.30 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, CENTER
61281-41G00
|
$52.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE,RR SWING ARM BRKT
61124-41G00
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW (6X12)
09125-06060
|
$1.63 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEARING
61251-41G00
|
$42.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, PIVOT
61211-41G00
|
$161.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
09159-20006
|
$29.00 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, PIVOT
61214-42E10
|
$40.13 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOSS, RR SWGARM PIVOT RH
61212-47H00
|
$81.17 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, RR SWGARM PIVOT BOSS RH
61213-41G00
|
$34.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOSS, RR SWGARM PIVOT LH
61214-47H00
|
$68.19 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, RR SWGARM PIVOT BOSS LH
61215-41G00
|
$31.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
02122-0512B
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUFFER, CHAIN TOUCH DEFENSE
61273-47H00
Superseded by 61273-47H01
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X17.8)
09111-06072
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
CASE, CHAIN
61311-21H00
|
$59.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (6X12)
09111-06107
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#21
ADJUSTER,CHAIN
61445-40F20
Superseded by 61445-40F00
|
$52.38 | ||
|
Available to order. Add to View Price |
|||
|
#22
ADJUSTER,CHAIN
61446-40F10
Superseded by 61446-40F00
|
$52.38 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (8X50)
09100-08287
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
08316-1008A
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
