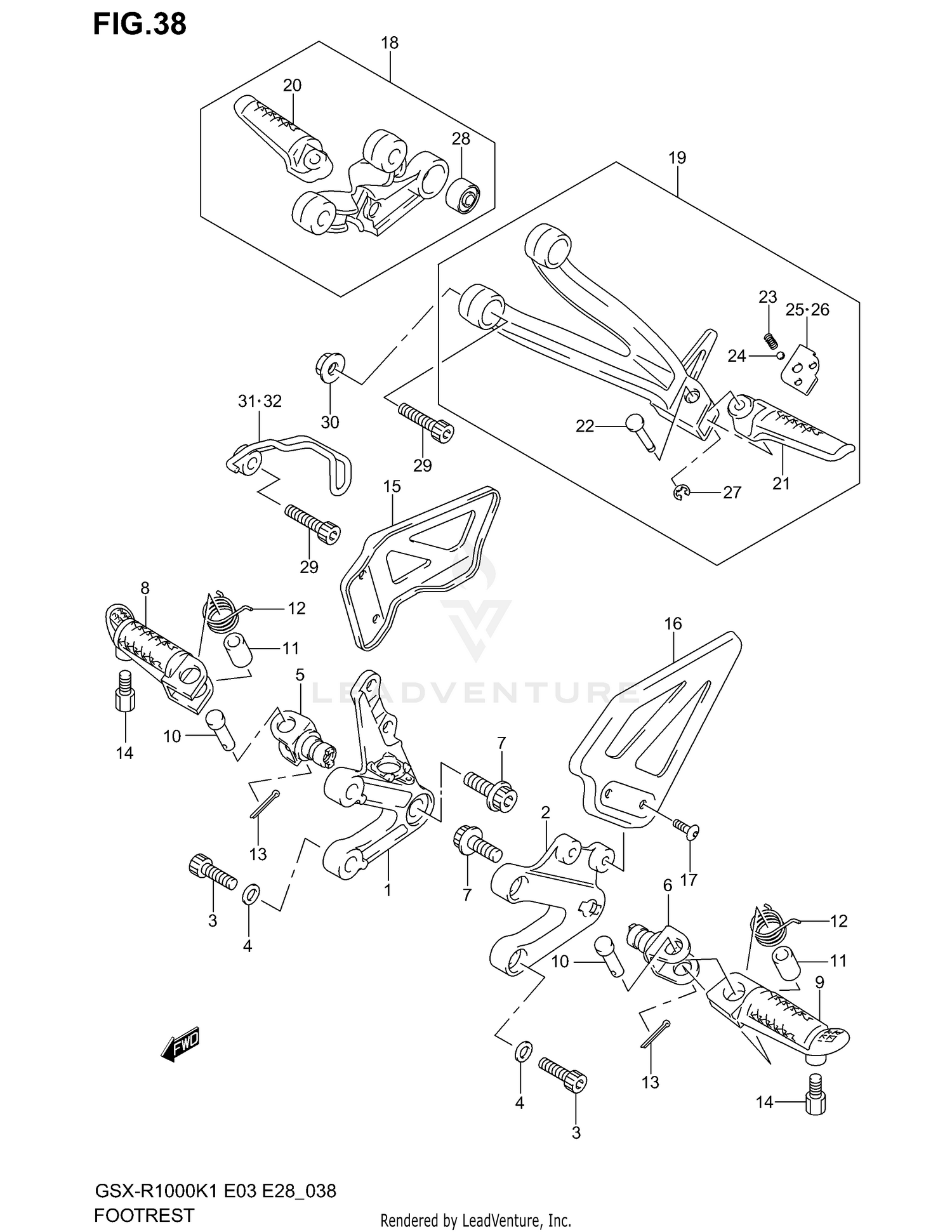

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43511-35F00
|
$130.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-35F00
|
$110.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BRACKET
43512-35F00
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
09164-08022
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER, FOOTREST RH
43530-35F01
Superseded by 43530-35F10
|
$49.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOLDER, FOOTREST LH
43540-35F01
Superseded by 43540-35F10
|
$49.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HOLDER
09106-10064
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAR, FRONT FOOTREST RH
43516-35F00
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAR, FRONT FOOTREST LH
43526-35F00
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
09200-08057
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER
09180-08149
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09448-18022
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN
04111-25158
Superseded by 04111-2515A
|
$1.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
.BOLT,BANK SENSOR
43576-07D01
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, FOOTREST RH
43571-35F01
|
$50.92 | ||
|
Unavailable |
|||
|
#16
GUARD,FR FOOTRE
43576-35F00
Superseded by 43576-35F01
|
$57.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, GUARD LH
09139-05067
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST ASSY, PILLION RH
43600-35F00
|
$246.83 | ||
|
Available to order. Add to View Price |
|||
|
#19
FOOTREST ASSY, PILLION LH
43700-35F00
|
$225.09 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAR, PILLION RH
43611-35F00
Superseded by 43611-35F01
|
$60.67 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAR, PILLION LH
43621-35F00
Superseded by 43621-35F01
|
$58.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
87259-85510
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPRING
09440-05005
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
BALL
06111-07004
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, RH
43816-33E21
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLATE, LH
43826-33E22
|
$6.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
E-RING
08332-11043
Superseded by 08332-1104A
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSH
09319-08028
Superseded by 09319-08052
|
$19.30 | ||
|
Unavailable |
|||
|
#29
BOLT, SPACER
09106-08149
Superseded by 09106-08170
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT
08319-31083
Superseded by 08319-3108A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET, HOOK RH
43630-35F10
|
$20.76 | ||
|
Unavailable |
|||
|
#32
BRACKET, HOOK LH
43730-35F10
|
$20.76 | ||
|
Unavailable |
|||
