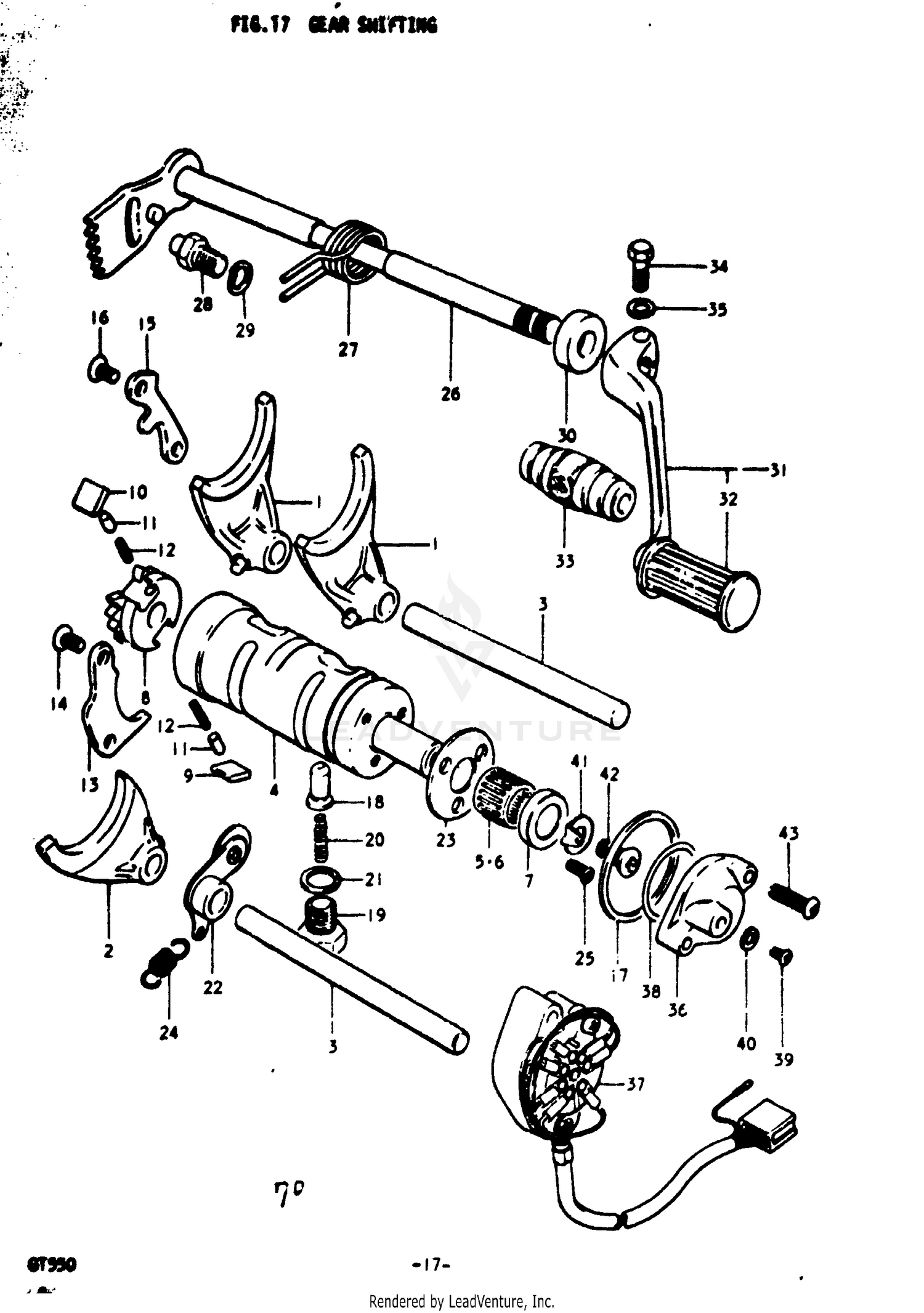

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK, GEAR SHIFTING (1)
25211-34000
|
$53.46 | ||
|
Unavailable |
|||
|
#2
NO DESCRIPTION AVAILABLE
25231-34000
Superseded by 25231-34X00
|
$78.94 | ||
|
Unavailable |
|||
|
#3
SHAFT, GEAR SHIFT FORK NO.1
25411-31000
Superseded by 25411-18900
|
$21.77 | ||
|
Available to order. Add to View Price |
|||
|
#4
CAM, SHIFTING
25310-31000
Superseded by 25310-31910
|
$93.03 | ||
|
Unavailable |
|||
|
#4
CAM, SHIFTING
25310-31910
|
$93.03 | ||
|
Unavailable |
|||
|
#5
BEARING
09263-16006
|
$7.06 | ||
|
Unavailable |
|||
|
#6
BEARING
09263-16012
|
$14.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
09284-16002
|
$6.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR,GEAR SHIFT CAM DRIVEN (N
25322-11000
Superseded by 25322-31310
|
$25.42 | ||
|
Available to order. Add to View Price |
|||
|
#9
PAWL,GEAR SHIFT NO.1
25323-11000
Superseded by 25323-34201
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
PAWL,GEAR SHIFT NO.2
25324-11000
Superseded by 25324-34201
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN
09261-05003
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09440-04003
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
LIFTER, SHIFTING PAWL
25331-11001
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
02122-06128
Superseded by 02122-06127
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE, SHIFTING CAM
25341-31000
|
$6.80 | ||
|
Unavailable |
|||
|
#16
SCREW
02122-06128
Superseded by 02122-06127
|
$1.95 | ||
|
Unavailable |
|||
|
#17
THRUST WASHER
09160-40001
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER,GEAR SHIFT CAM NO.2
25351-30000
Superseded by 25351-30010
|
$11.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
STOPPER,GEAR SHIFT CAM NO.2
25351-30010
|
$11.28 | ||
|
Unavailable |
|||
|
#19
HOLDER, STOPPER SPRING
25354-30000
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING
09440-06014
|
$0.65 | ||
|
Unavailable |
|||
|
#21
WASHER
09168-14004
|
$1.68 | ||
|
Available to order. Add to View Price |
|||
|
#22
STOPPER, SHIFTING CAM
25350-34000
|
$14.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, CAM STOPPER
25381-20000
Superseded by 25381-20001
|
$11.76 | ||
|
Unavailable |
|||
|
#23
PLATE, SHIFTING CAM STOPPER
25381-20001
|
$11.76 | ||
|
Unavailable |
|||
|
#24
SPRING
09443-08012
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#25
.SCREW
02121-04127
Superseded by 02122-0412A
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#26
SHAFT, GEAR SHIFTING
25510-34000
|
$59.27 | ||
|
Unavailable |
|||
|
#27
SPRING
09444-26001
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPRING
09444-26012
Superseded by 09444-26013
|
$3.32 | ||
|
Available to order. Add to View Price |
|||
|
#28
STOPPER,GEAR SHIFT ARM
25671-01000
Superseded by 25671-01011
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#29
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL,OIL (12X22X9)
09285-12002
Superseded by 09285-12006
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
LEVER ASSY, GEAR SHIFTING
25600-33001
|
|||
|
Unavailable |
|||
|
#31
LEVER ASSY, GEAR SHIFTING
25600-33003
Superseded by 25600-44000
|
$67.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
.RUBBER,GEAR SHIFT PEDAL
25652-03201
Superseded by 25652-16510
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#33
.RUBBER,GEAR SHIFT PEDAL
25652-16500
Superseded by 25652-16510
|
$4.15 | ||
|
Unavailable |
|||
|
#34
BOLT, REAR
01122-08208
Superseded by 01500-08207
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#35
.WASHER,LOCK
08321-21088
Superseded by 08321-01087
|
$1.95 | ||
|
Unavailable |
|||
|
#36
BODY, GEAR SHIFTING SWITCH
37721-15002
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#37
SWITCH ASSY, GEAR SHIFTING
37710-33110
|
|||
|
Unavailable |
|||
|
#37
SWITCH ASSY, GEAR SHIFTING
37710-33111
Superseded by 37710-33112
|
$67.84 | ||
|
Unavailable |
|||
|
#37
SWITCH ASSY, GEAR SHIFTING
37710-33112
|
$67.84 | ||
|
Unavailable |
|||
|
#38
O RING
09280-28002
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#39
SCREW
02111-03048
Superseded by 02112-03047
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER
08322-21038
Superseded by 08322-01037
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#41
CONTACT, SWITCH
37711-05100
Superseded by 37711-05101
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#41
CONTACT, GEAR SHIFTING SWITCH
37711-05101
|
$4.12 | ||
|
Unavailable |
|||
|
#42
SCREW
02122-06128
Superseded by 02122-06127
|
$1.95 | ||
|
Unavailable |
|||
|
#43
SCREW
02111-05207
Superseded by 02112-05207
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
