1985 Suzuki GV1200GLF MADURA AIR CLEANER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+

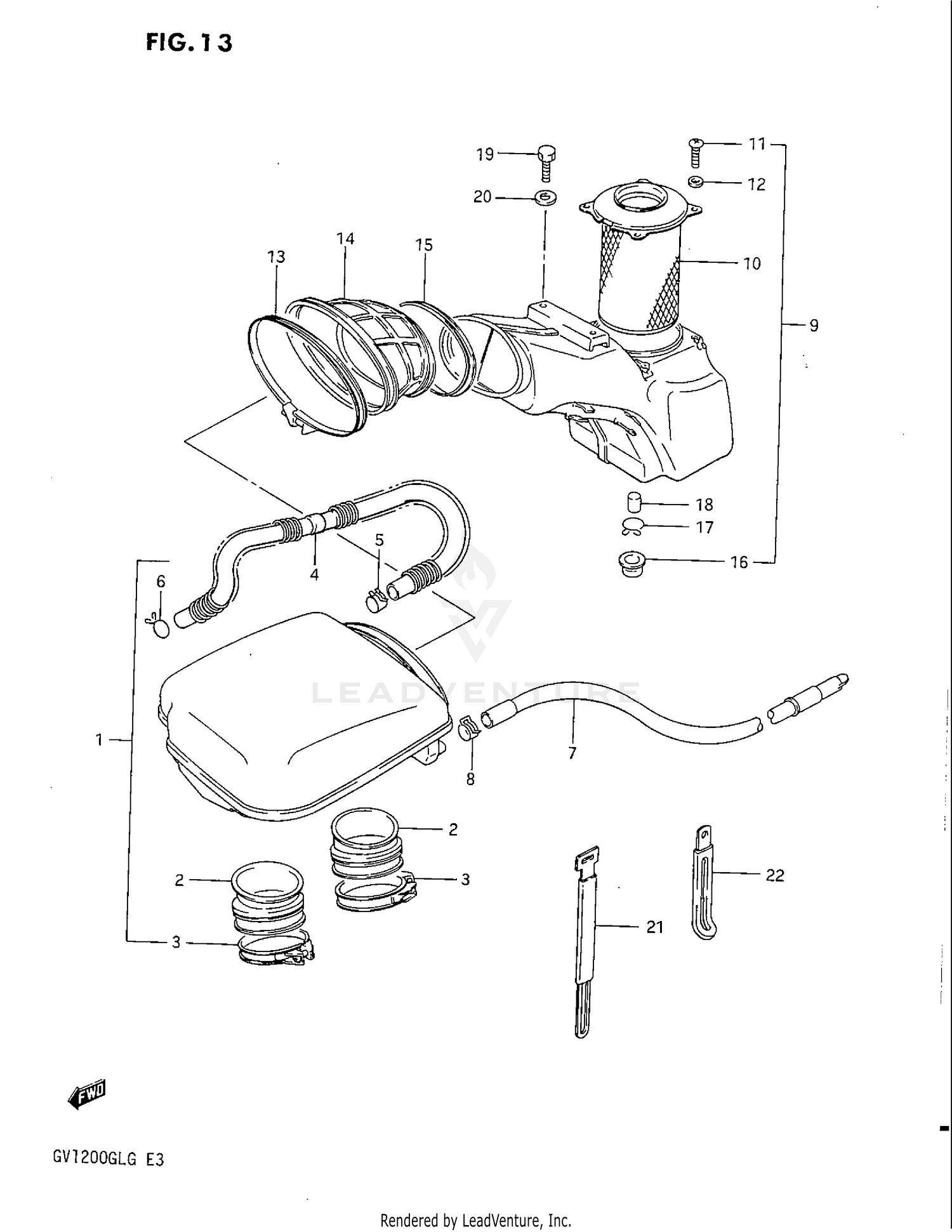

| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAMBER ASSY
13701-05A00
|
$103.97 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTLET
13881-05A00
|
$13.33 | ||
|
Unavailable |
|||
|
#3
.CLAMP
09402-58207
Superseded by 09402-58208
|
$5.73 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE, BREATHER
13850-05A00
|
$30.94 | ||
|
Unavailable |
|||
|
#5
CLIP
13824-43400
Superseded by 09401-14404
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP
13828-00020
Superseded by 09401-14401
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE, DRAIN
13870-05A00
|
$10.30 | ||
|
Unavailable |
|||
|
#8
CLAMP
13825-43400
Superseded by 09401-13417
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
CASE ASSY, FILTER
13702-05A00
|
$72.87 | ||
|
Unavailable |
|||
|
#10
FILTER ASSY
13780-05A00
Superseded by 13780-01D00
|
$45.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
02112-05125
Superseded by 02112-0512A
|
$1.52 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK WASHER
08321-21055
Superseded by 08321-0105A
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP, CHAMBER
13826-05A00
|
$3.92 | ||
|
Unavailable |
|||
|
#14
JOINT, TUBE
13739-05A00
|
$15.18 | ||
|
Unavailable |
|||
|
#15
CLAMP, CASE
13827-05A00
|
$3.84 | ||
|
Unavailable |
|||
|
#16
CAP, DRAIN
13872-05A00
|
$2.42 | ||
|
Unavailable |
|||
|
#17
CLIP
09401-14301
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
FILTER, DRAIN
13789-00020
|
$1.35 | ||
|
Unavailable |
|||
|
#19
BOLT, CANISTER
01107-06168
Superseded by 01500-06167
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
08322-21068
Superseded by 08322-01067
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP
09407-11301
Superseded by 09407-18302
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
09404-06412
Superseded by 09404-06039
|
$1.83 | ||
|
Available to order. Add to View Price |
|||
