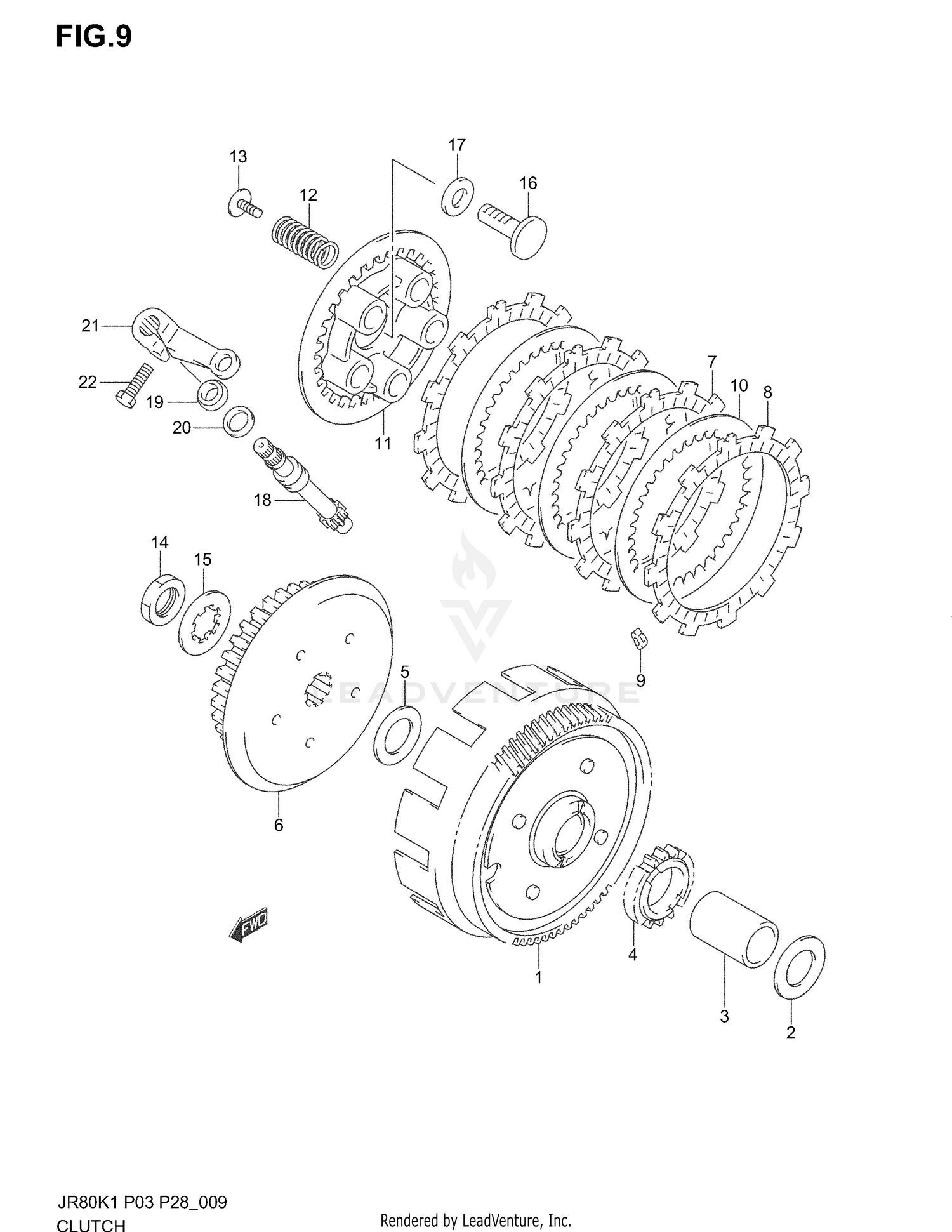

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVEN (NT:73)
21200-46010
|
$239.65 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER (21X30X1.0)
09160-21005
|
$2.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER, PRIMARY DRIVEN GEAR
21251-21D10
|
$19.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, KICK DRIVEN (NT:17)
26281-46000
Superseded by 26281-46001
|
$79.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, KICK DRIVEN (NT:17)
26281-46001
|
$79.17 | ||
|
Unavailable |
|||
|
#5
WASHER
08211-17282
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
HUB, SLEEVE
21411-46000
|
$67.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, DRIVE
21441-13A01
|
$16.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, DRIVE
21441-46010
|
$40.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER,CL DR PL
21481-46000
Superseded by 21481-46001
|
$9.50 | ||
|
Unavailable |
|||
|
#10
PLATE,CLUTCH DRIVEN (T:1.6)
21451-19A00
|
$8.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, PRESSURE
21462-06C00
|
$25.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
09440-15008
|
$2.03 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (5X16)
09116-05020
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
09140-16005
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (17.1X33X0.8)
09167-17002
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#16
RACK
23165-28301
Superseded by 23165-46000
|
$24.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING (10.1X22X2.8)
09263-10002
|
$10.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
PINION, RELEASE (NT:12)
23261-41301
|
$41.22 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL,OIL (10X17X5)
09285-10004
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER (12.5X17X1)
09160-12086
|
$1.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM,CLUTCH RELEASE
23271-46010
|
$27.33 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
01500-06163
Superseded by 01500-0616A
|
$1.88 | ||
|
Available to order. Add to View Price |
|||
