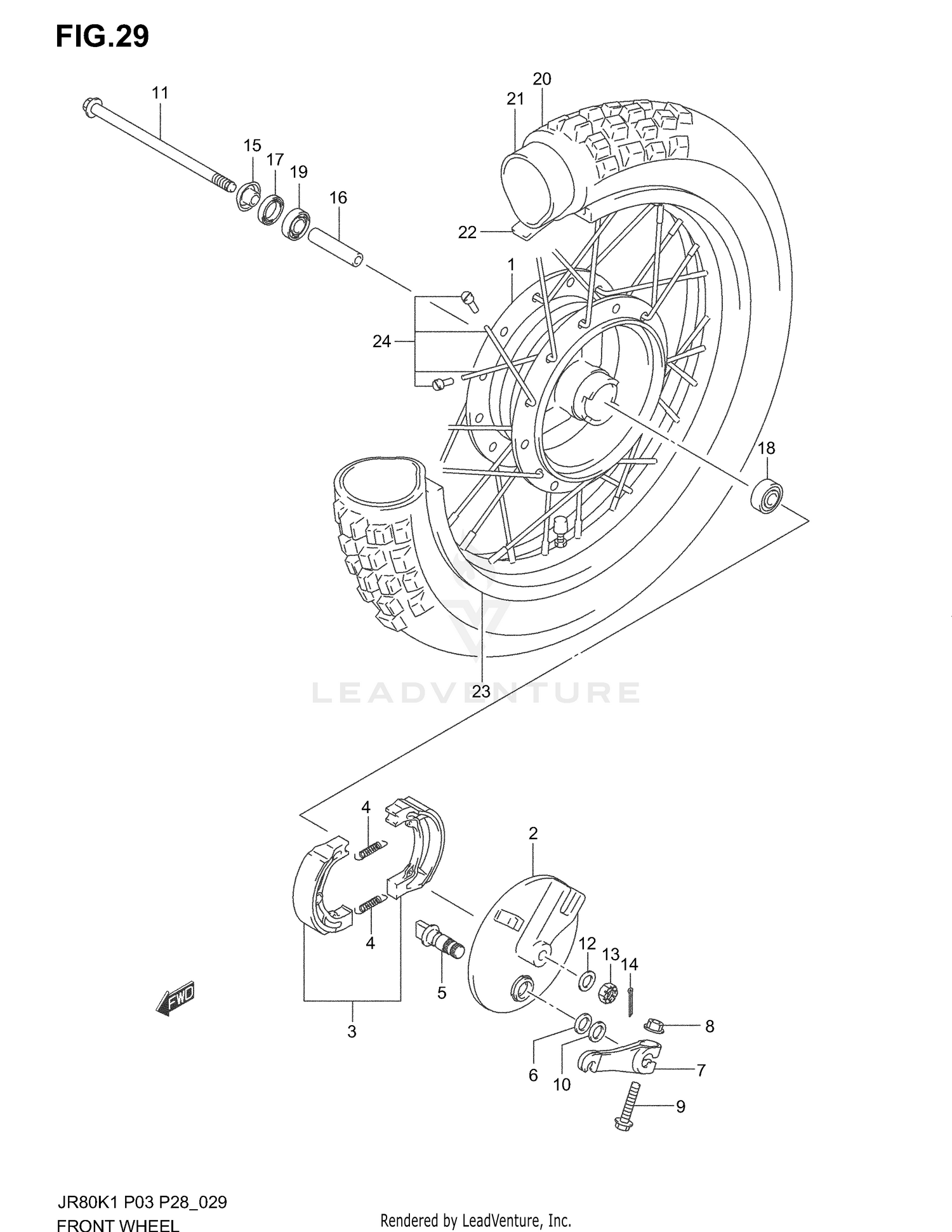

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DRUM, FRONT HUB
54110-46500
|
$114.52 | ||
|
Unavailable |
|||
|
#2
PANEL, FRONT BRAKE ANCHOR
54210-46002
|
$109.55 | ||
|
Unavailable |
|||
|
#3
SHOE SET, BRAKE
54401-43810
|
$39.42 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
09443-07025
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT, BRAKE CAM
54441-26503
|
$14.28 | ||
|
Unavailable |
|||
|
#6
DUST SEAL (ID:13.8,D:2.50)
09280-14011
|
$5.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
LEVER,FR BRAKE CAM
54451-26500
|
$17.37 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
08316-10063
Superseded by 08316-1006B
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-06353
Superseded by 01550-0635A
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
09160-14055
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
AXLE, FRONT
54711-04711
|
$33.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09160-10123
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08314-40103
Superseded by 08314-4010B
|
$2.92 | ||
|
Available to order. Add to View Price |
|||
|
#14
COTTER PIN
04111-20208
Superseded by 04111-2020A
|
$1.43 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER,FR AXLE,R
54740-26101
|
$18.87 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPACER (10.2X16X51)
09180-10148
|
$8.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL,OIL (15X31X5)
09284-15001
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
08143-63007
Superseded by 08143-6300B
|
$15.35 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING
08113-62007
Superseded by 08113-6200B
|
$11.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
TIRE, FRONT (2.50-14 4PR) IRC
55100-46420
|
$79.63 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE,INNER
55200-46410
Superseded by 55200-46411
|
$21.13 | ||
|
Unavailable |
|||
|
#22
PROTECTOR,INNER
55261-24010
Superseded by 55261-24020
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIM, WHEEL (1.40X14)
55311-03400
|
$65.52 | ||
|
Unavailable |
|||
|
#24
SPOKE SET, FRONT WHEEL
55320-03410
|
$37.54 | ||
|
Available to order. Add to View Price |
|||
