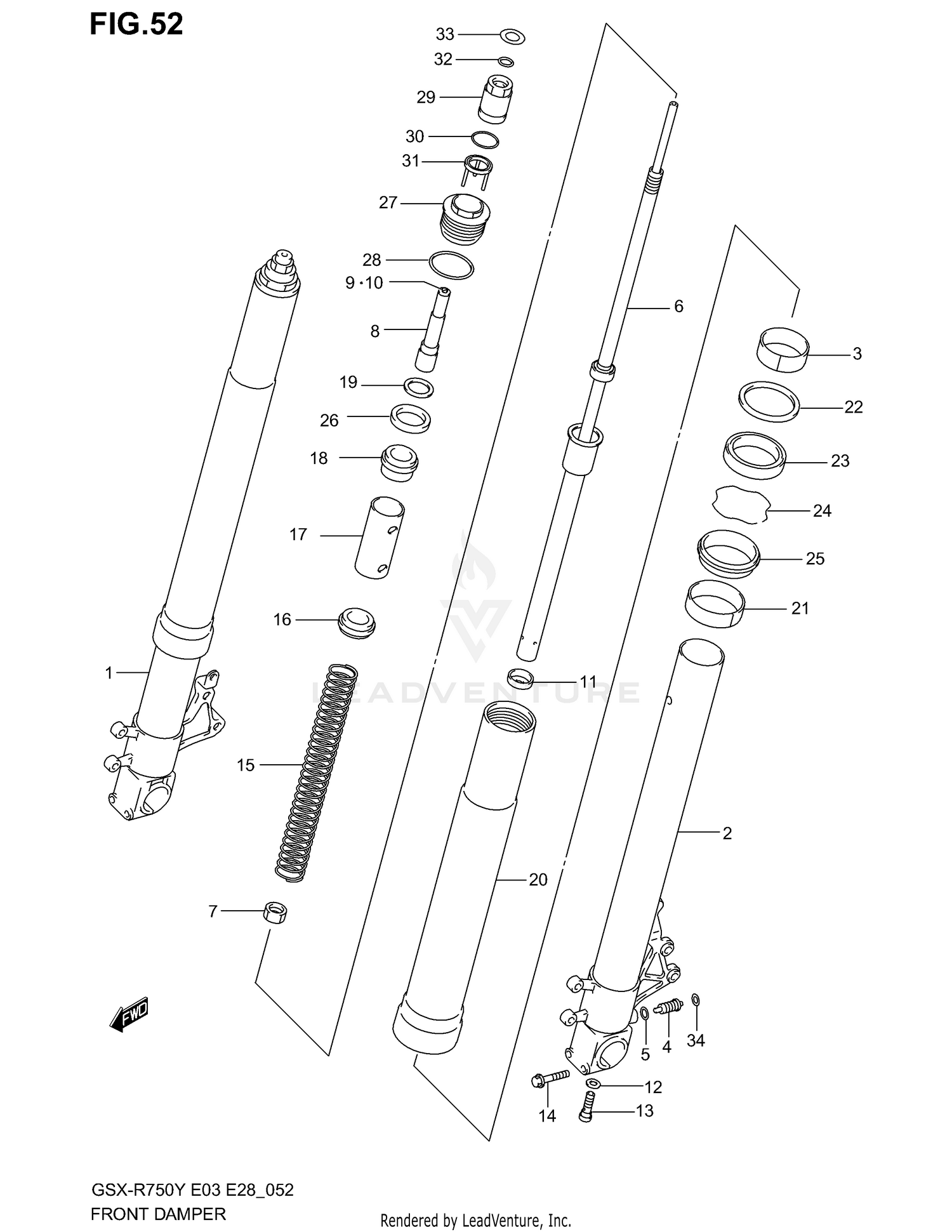

Front Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
DAMPER ASSY, FRONT FORK RH
51103-35F10
|
$1,102.03 | ||
|
Unavailable |
|||
|
#
DAMPER ASSY, FRONT FORK RH
51103-35F40
|
$1,203.30 | ||
|
Unavailable |
|||
|
#
DAMPER ASSY, FRONT FORK LH
51104-35F10
|
$1,102.03 | ||
|
Unavailable |
|||
|
#
DAMPER ASSY, FRONT FORK LH
51104-35F40
|
$1,203.30 | ||
|
Unavailable |
|||
|
#1
TUBE, INNER RH
51110-35F00
|
$456.55 | ||
|
Unavailable |
|||
|
#2
TUBE, INNER LH
51120-35F00
|
$671.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH, SLIDE
51121-13E00
|
$20.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIECE, ADJUSTER LOWER
51830-33E00
|
$55.17 | ||
|
Unavailable |
|||
|
#5
O RING
09280-14011
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD, DAMPER
52110-35F00
|
$526.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
51827-33E00
|
$16.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
CASE, ADJUST
51829-33E20
|
$97.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIECE, ADJUST
51821-33E00
|
$41.77 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING
09280-03002
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, CENTERING
51815-33E00
|
$16.12 | ||
|
Unavailable |
|||
|
#12
.WASHER (10X15X1.5)
09161-10009
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
51147-17C00
|
$21.37 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, AXLE HOLDLER
51166-35F00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
51171-35F00
|
$80.94 | ||
|
Unavailable |
|||
|
#16
JOINT, SPRING LOWER
51172-17E00
|
$19.09 | ||
|
Unavailable |
|||
|
#17
SPACER, SPRING
51176-33E00
|
$11.99 | ||
|
Unavailable |
|||
|
#18
.GUIDE,SPRING,UPPER
51175-22D00
|
$19.18 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, JOINT
51172-34370
|
$3.18 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, OUTER
51131-35F00
|
$329.18 | ||
|
Unavailable |
|||
|
#21
BUSH, GUIDE
51152-13E00
|
$21.90 | ||
|
Available to order. Add to View Price |
|||
|
#22
.SPACER,SEAL
51168-17C00
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, OIL
51153-14D00
|
$25.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
.RING,STOPPER
51556-38B00
|
$8.02 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL, DUST
51173-29E00
|
$29.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
RUBBER, SEAT
51193-17D00
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FORK
51189-35F00
|
$97.73 | ||
|
Available to order. Add to View Price |
|||
|
#28
O RING, FORK BOLT
51187-08D00
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#29
ADJUSTER, SPRING
51828-35F00
|
$66.65 | ||
|
Available to order. Add to View Price |
|||
|
#30
O RING, ADJUSTER OUTER
51199-17D00
|
$5.92 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLATE, SPRING ADJUSTER
51823-22D30
|
$34.58 | ||
|
Available to order. Add to View Price |
|||
|
#32
RING, STOPPER
51837-17D00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#33
LABEL, ADJUST PIECE UPPER
51149-42E00
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#34
LABEL, ADJUST PIECE LOWER
51169-42E00
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
